35
CLARKSON SLURRY KNIFE GATE VALVES
KGA
Travel limit Hex screw
Travel limit Hex washer
Travel limit
Cap nut
Set screw
Handwheel
Thrust washer
Base mounting screw/washer/nut
Stem nut base
Adapter plate screw/washer/nut
Woodruff key
Adapter plate
Stem nut
Stem assembly
Frame (yoke)
Clevis pin w/cotter pin
Housing/frame (yoke) screw/washer/nut
End nut
Stem cover
Handwheel extension assy (NPS 24 (DN 600) only)
Bevel gear actuator
Handwheel
Travel limit hex screw
Travel limit hex washer
Travel limit
Stem nut
Stem nut mounting screw
Adapter plate
Adapter plate mounting screw/washer/nut (NPS 18 - 24 (DN 450 - 600))
Adapter screw/washer (NPS 3 - 16 (DN 80 - 400))
Stem assembly
Yoke spacer (NPS 18 - 24 (DN 450 - 600) only)
Clevis pin w/cotter pin (cotter NPS 3 - 16 (DN 80 - 400) only)
Frame (yoke)
Housing/frame (yoke) screw/washer/nut
Note: assemblies are typical.

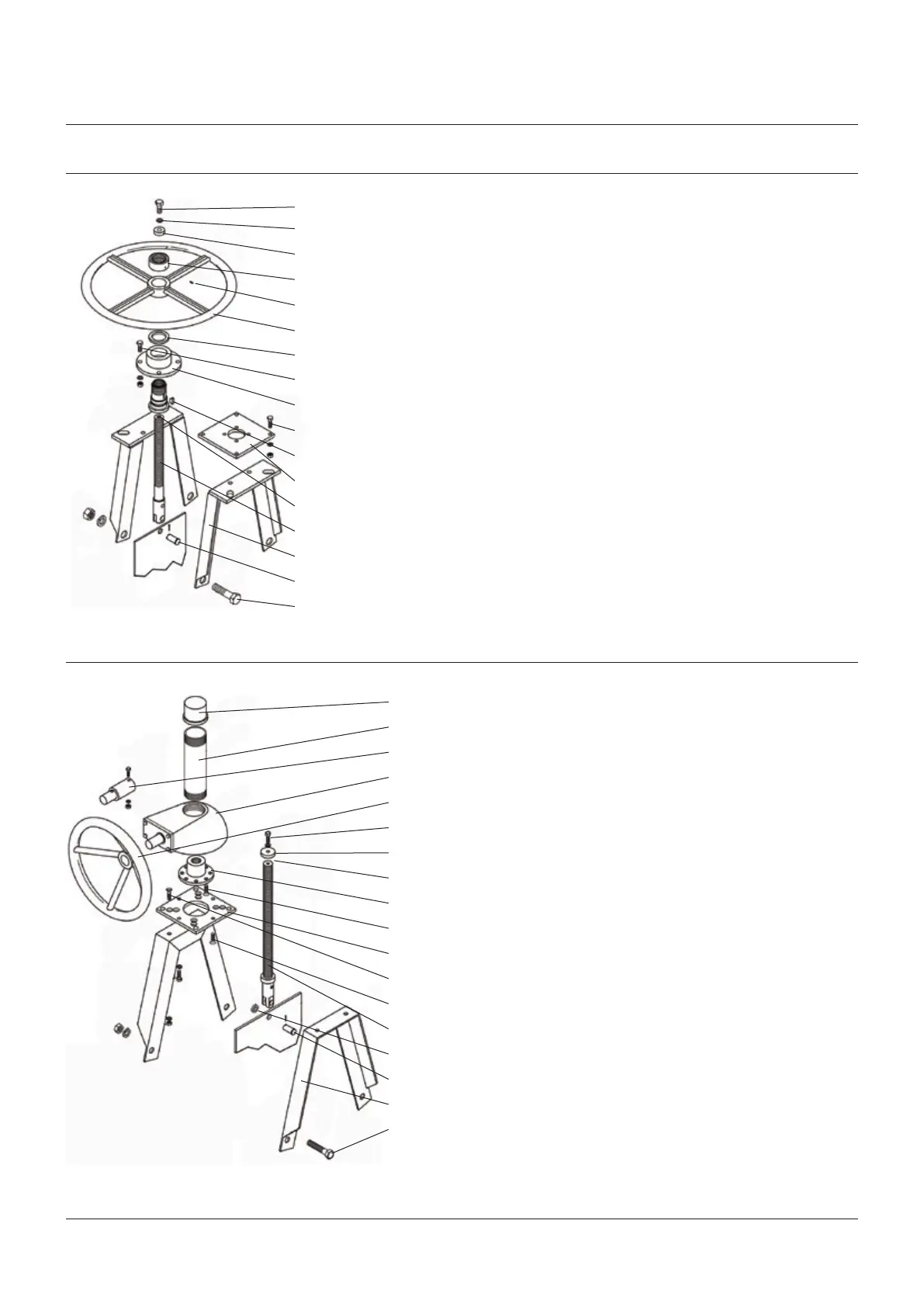

34 MANUAL HANDWHEEL ACTUATOR ASSEMBLY - MH
35 BEVEL GEAR ACTUATOR ASSEMBLY - BG
