Emerson Liebert GXT3 User Manual

Product Description
6

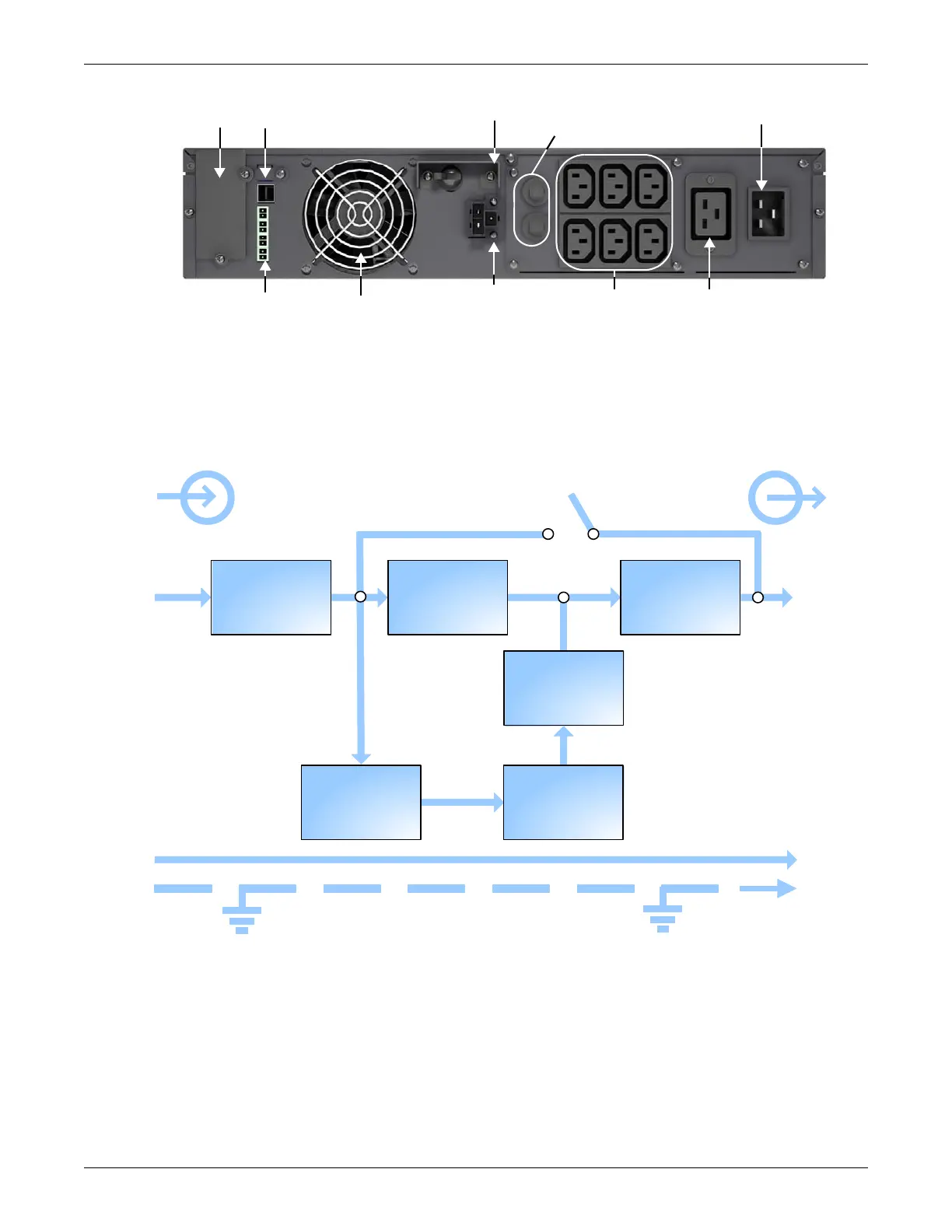

Figure 4 Rear panel components, Liebert
®
GXT3
™
230V 3000VA models
1.4 Major Components
The operating principle of the UPS is shown in Figure 5.
Figure 5 Operating principle diagram
The UPS is composed of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery
charger, DC-to-DC converter, battery, dynamic bypass and UPS output.
Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters
The Liebert GXT3 has surge protection and filters that protect the connected load from power surges
and sags, electromagnetic interference (EMI) and radio frequency interference (RFI). These features
can minimize any surges or interference present in the mains power. The filters also prevent surges
or interference generated by the UPS from adversely affecting other devices connected on the same
branch as the UPS.
C20 Input Receptacle
Output Circuit
Breakers
Cooling Fan
C13 Output
Receptacles
Liebert IntelliSlot Port
USB Port
Terminal Block
Communication
C19 Output
Receptacle
Input Circuit
Breaker
External Battery
Connector
L1
Dynamic
Bypass
Input
DC-to-DC
Converter
Rectifier/
PFC
Inverter
Battery
Battery
Charger
L1
TVSS & EMI/
RFI Filters
N
Output
N
G
G

Emerson Liebert GXT3 Specifications

General

Model	Liebert GXT3
Relative Humidity	0-95% non-condensing
Type	Online Double Conversion
Input Frequency	50/60 Hz
Output Frequency	50/60Hz ±0.1%
Power Factor	0.9
Form Factor	Tower or Rackmount
Battery Type	Sealed Lead-Acid (SLA)
Communication Interface	RS-232, USB
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-15°C to 40°C (5°F to 104°F)
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
Certifications	UL, cUL, CE, RoHS
