Emerson Liebert GXT3 User Manual

Installation
11

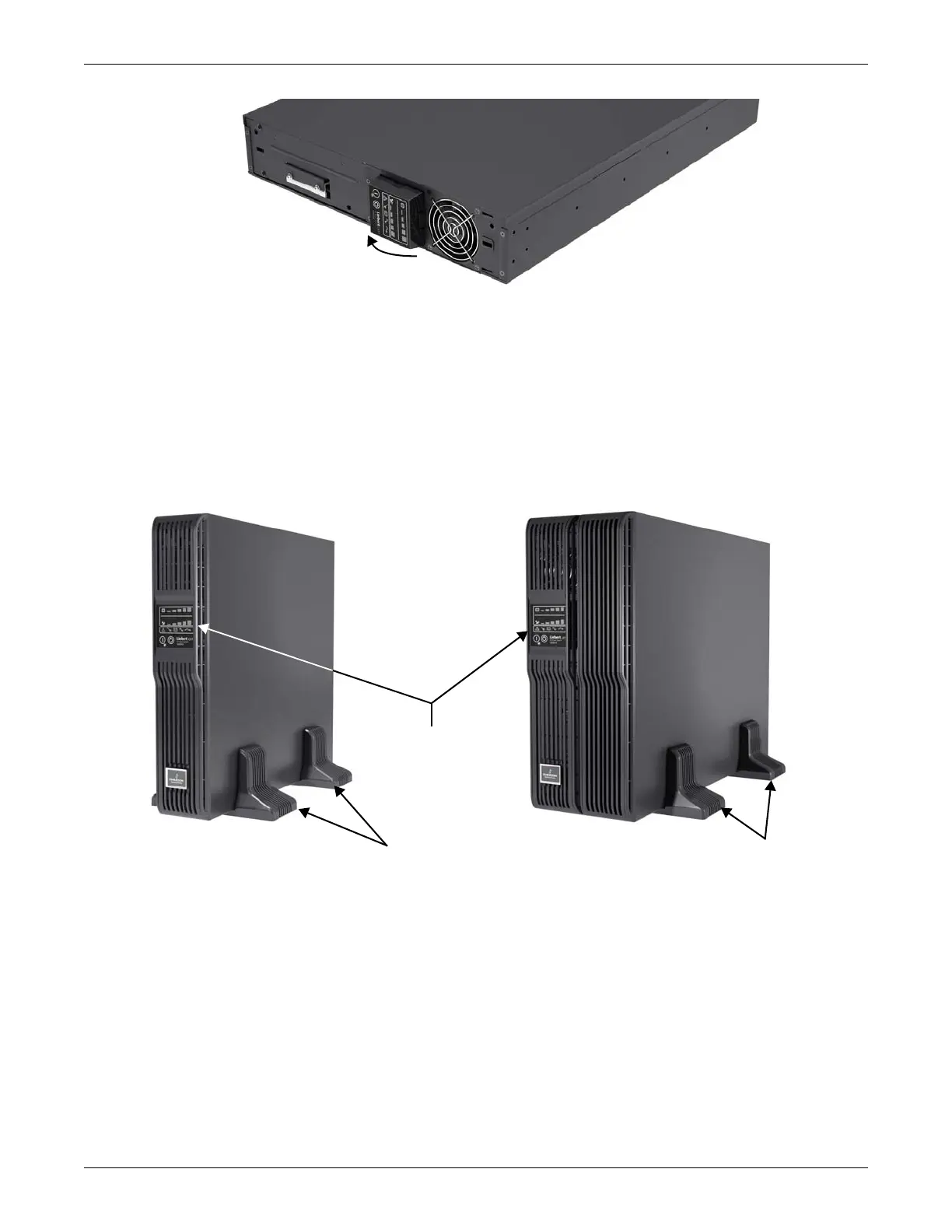

Figure 8 Rotate the operation and display panel
c. Pull the logo on the front plastic bezel cover, rotate it 90 degrees clockwise and snap it back
into position. The rotated front plastic bezel cover is shown in Figure 9.
d. Replace the front plastic bezel cover on the Liebert
®
GXT3
™
. At this point, the UPS operation
and display panel and logo have been rotated 90 degrees clockwise, which provides upright
viewing for users.
5. Place the Liebert GXT3 and any battery cabinets on the support bases. Each Liebert GXT3 needs
four support bases, as shown in Figure 9.
Figure 9 Tower installation
Operation and Display Panel
Rotated Clockwise 90 Degrees
Operation and
Display Panel
Rotated for
Tower Operation
Support Bases
Support Bases
Liebert GXT3 UPS
Liebert GXT3 UPS and
External Battery Cabinet

Emerson Liebert GXT3 Specifications

General

Model	Liebert GXT3
Relative Humidity	0-95% non-condensing
Type	Online Double Conversion
Input Frequency	50/60 Hz
Output Frequency	50/60Hz ±0.1%
Power Factor	0.9
Form Factor	Tower or Rackmount
Battery Type	Sealed Lead-Acid (SLA)
Communication Interface	RS-232, USB
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-15°C to 40°C (5°F to 104°F)
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
Certifications	UL, cUL, CE, RoHS
