Emerson Micro Motion 1000 Series User Manual

Configuration and Use Manual 253
Menu Flowcharts – Model 2700 CIO Transmitters
Model 1700/2700 IS Display CodesModel 2700 CIOModel 1700/2700 AN

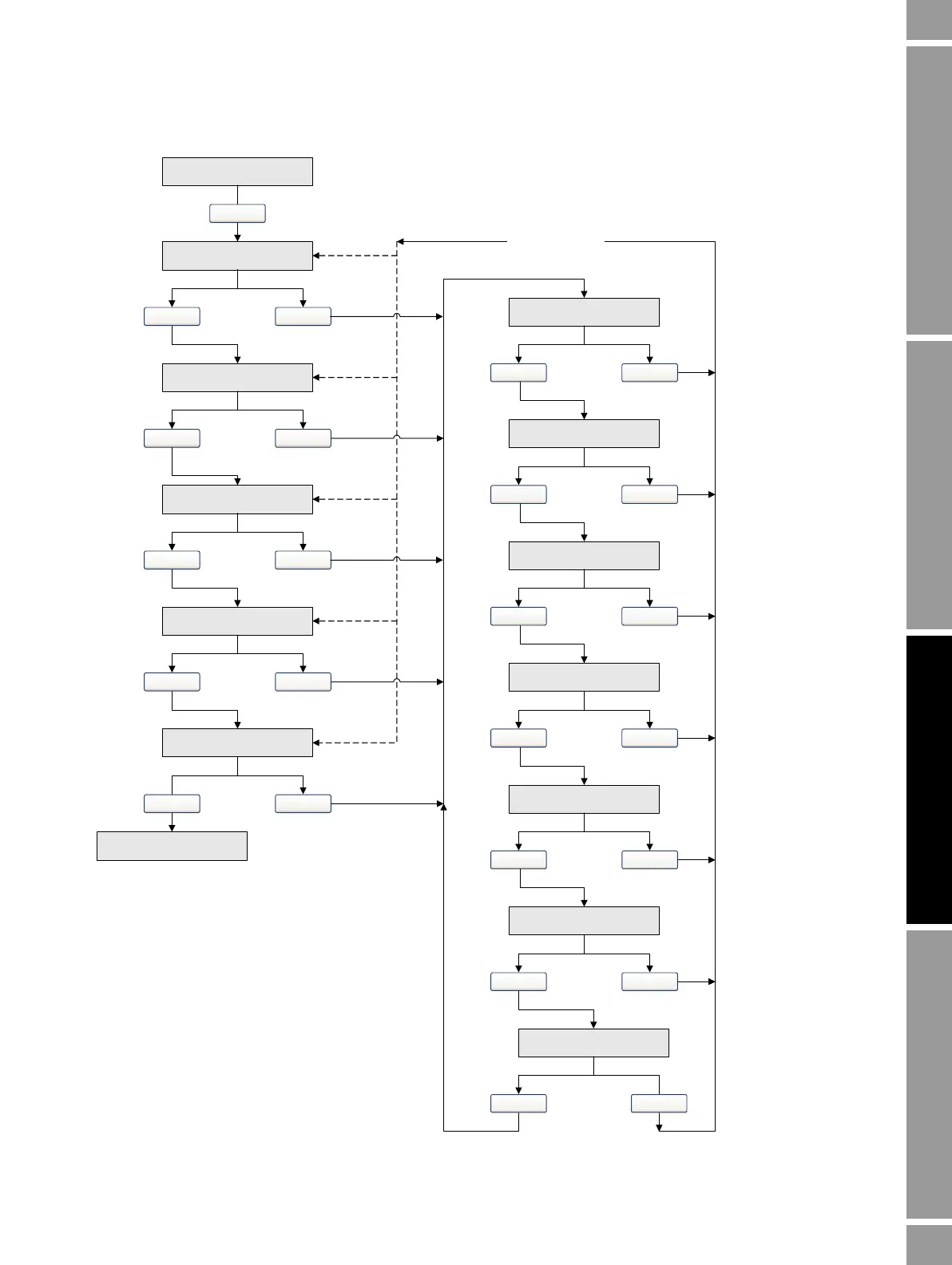

Figure G-18 Display menu – Off-line maintenance: Discrete input and discrete event assignment
ACT
(1)
START ZERO
RESET MASS
RESET VOL/GSV T
RESET ALL
START/STOP
EXIT
Scroll
Select
Select
NONE
DI
D EV 1
D EV 2
D EV 3
D EV 4
Scroll Select
Action assigned
(2)
Scroll Select
Scroll Select
Scroll Select
Scroll Select
Scroll Select
Scroll
Scroll Select
Scroll Select
Scroll
Select
Select
D EV 5
Scroll Select
(1) This menu is entered from the DI Configuration menu (see Figure G-17).
(2) More than one action can be assigned to the discrete input or a discrete event.
