Configuration and Use Manual 45
Required Transmitter Configuration
Required Configuration Optional ConfigurationUsing the TransmitterFlowmeter Startup

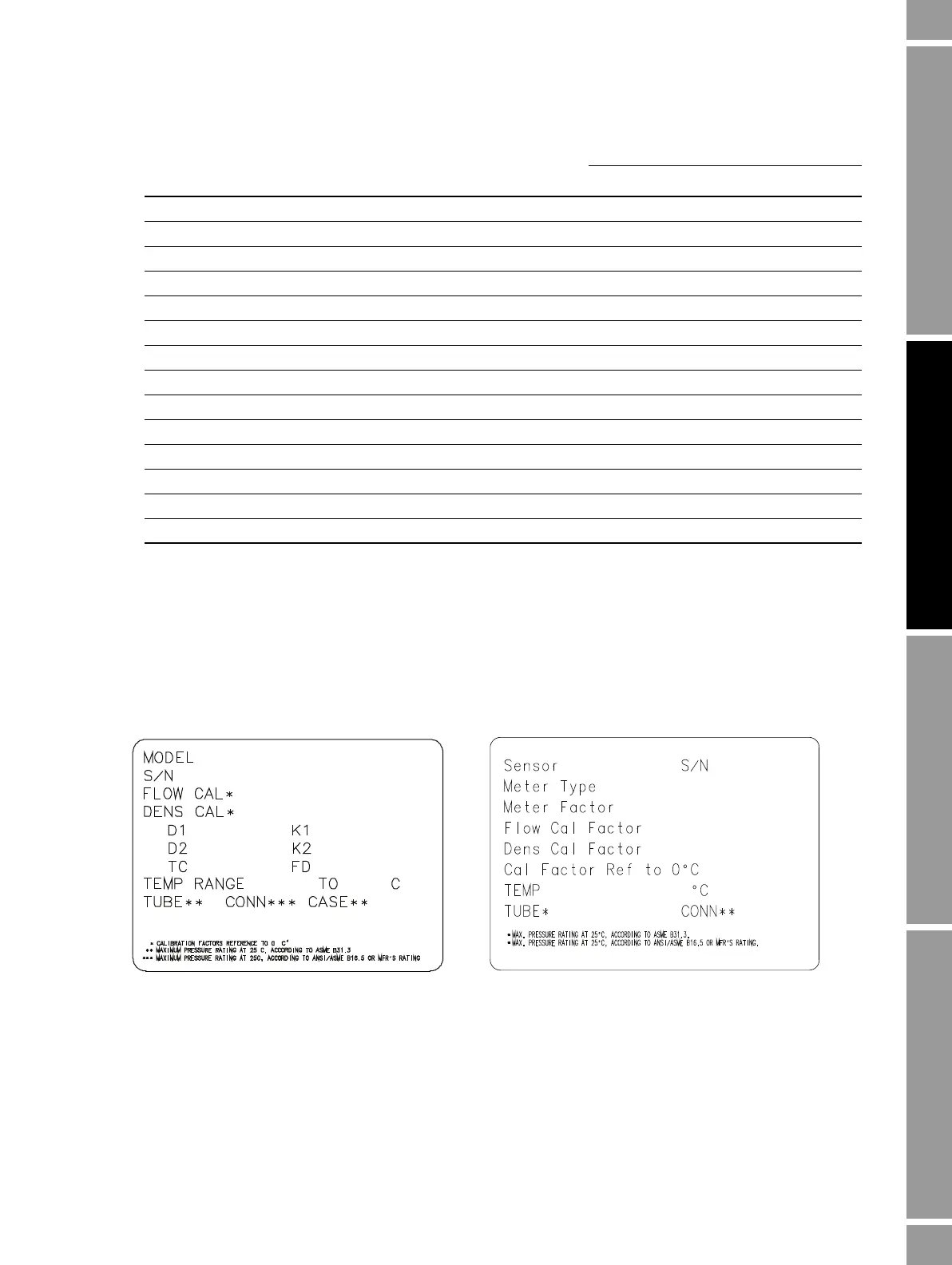

Figure 6-2 Sample calibration tags – All sensors except T-Series
Table 6-1 Sensor calibration parameters
Parameter
Sensor type
T- S e r i es O t h e r
K1 ✓✓
(1)
(1) See the section entitled “Density calibration factors.”
K2 ✓✓
(1)
FD ✓✓
(1)
D1 ✓✓
(1)
D2 ✓✓
(1)
Temp coeff (DT)
(2)
(2) On some sensor tags, shown as TC.
✓✓
(1)
Flowcal ✓
(3)
(3) See the section entitled “Flow calibration values.”
FCF and FT ✓
(4)
(4) Older T-Series sensors. See the section entitled “Flow calibration values.”
FCF ✓
(5)
(5) Newer T-Series sensors. See the section entitled “Flow calibration values.”
FTG ✓
FFQ ✓
DTG ✓
DFQ1 ✓
DFQ2 ✓
Newer tag Older tag
19.0005.13
19.0005.13
0.0010
0.9980
12502.000
14282.000
4.44000
310
12502142824.44
12500142864.44
