2.2.1 Typical short-term overload limits
The maximum percentage overload limit changes depending on the
selected motor
Variations in motor rated current will result in changes in the maximum
possible overload as detailed in the Advanced User Guide.
Figure 2-1 can be used to determine the maximum overload duration
available for overloads between 100% and 150%. For example the
maximum overload available for a period of 60 seconds is 124%.

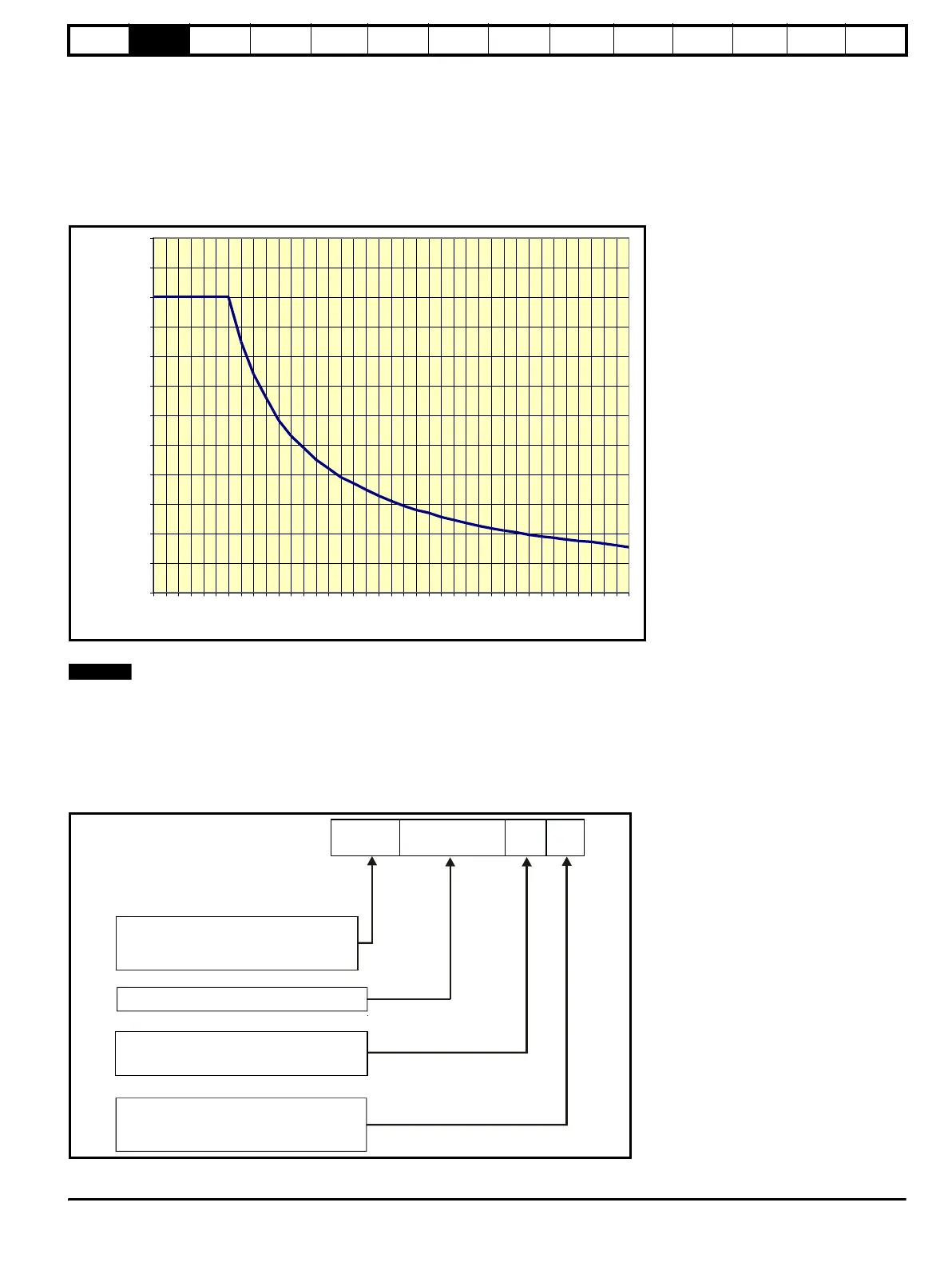

Figure 2-1 Maximum overload duration available
Overload of 150% for 30s is available with ambient temperature of 40ï‚°C
(104°F) up to a maximum of 10 repetitions per hour.
2.3 Model number
The way in which the model numbers for the Quantum MP range are formed is described in Figure 2-2.
Figure 2-2 Model number
100
105
110
115
120
125
130
135
140
145
150
155
160
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
200
overload duration (seconds)
overload
(%)
Continuous armature current rating (A)
R
Blank
- 4 quadrant operation
- 2 quadrant operation
Quantum product line
QMP: Quantum Platform
Voltage rating
4: 480V
QMP
2 1 0 A
4 R
