18 Quantum MP User Guideï€
www.emersonct.com Issue: A4
3.4 Mounting method
The Quantum MP can only be surface mounted.

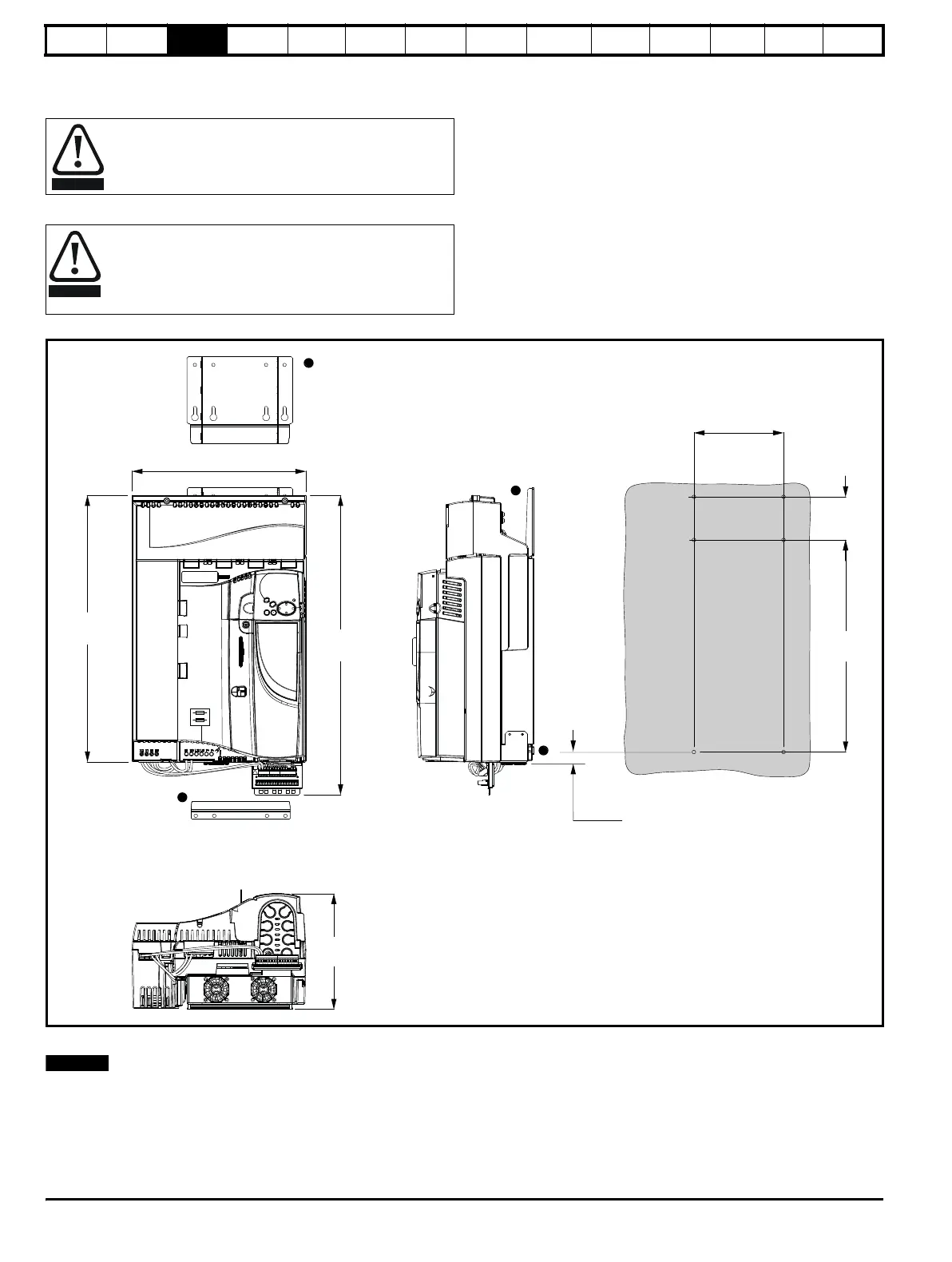

Figure 3-5 Surface mounting the size 1A drive
1. The two outer holes must be used for mounting the Quantum MP.
With the SMARTCARD installed to the drive, the depth measurement
increases by 7.6mm (0.30 in).
If the drive has been used at high load levels for a period of
time, the heatsink can reach temperatures in excess of 70°C
(158°F). Human contact with the heatsink should be
prevented.
Many of the drives in this product range weigh in excess of
16kg (35lb). Use appropriate safeguards when lifting these
models.
See section 12.1.20 Weights on page 149
330mm
[12.99 in]
573mm
[22.56 in]
510mm
[20.09 in]
222mm
[8.72 in]
170mm
[6.69 in]
406mm
[15.98 in]
83mm
[3.25 in]
25mm
[0.97 in]
1
1
1
1
