Failure to install proper flange adapter O-rings can cause process leaks, which can
result in death or serious injury.

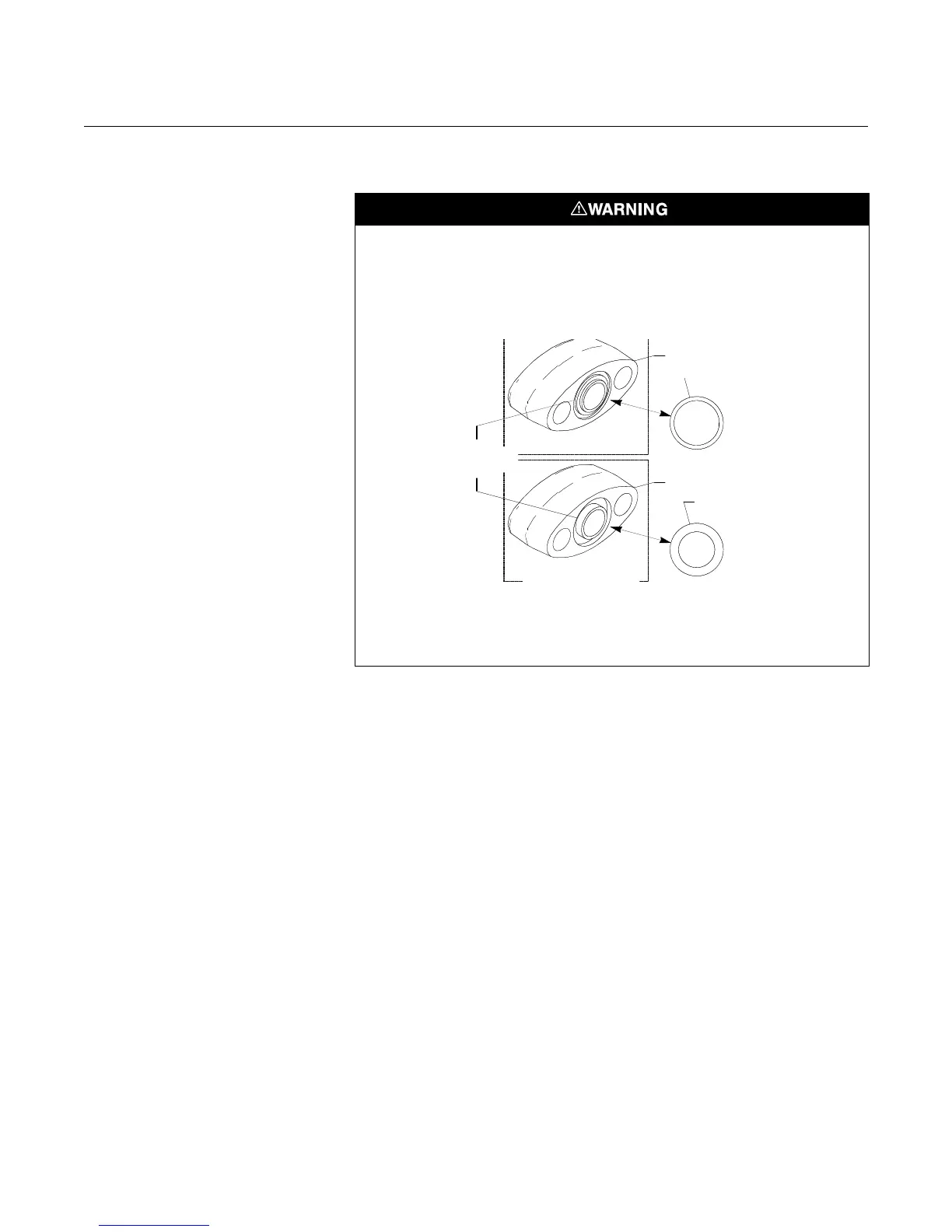

There are two styles of Rosemount flange adapters, each requiring a unique O-ring, as
shown below. Each flange adapter is distinguished by its unique groove.
Use only the O-ring designed to seal with the corresponding flange adapter. Refer to
the “Spare Parts” on page A-14 for the correct part numbers of the flange adapters and
O-rings designed for the 3095 Multivariable Transmitter.
Unique O-ring
Grooves
3051/2024/3001/3095
1151
Flange Adapter
O-ring
Flange Adapter
O-ring
