Composition Mole % (Natural Gas Only)
The next screen will take you to either the gas composition table or the gross
characterization screens, depending on what you selected in the previous
screen.
Detail Characterization (AGA) & Molar Composition Method (ISO)
If either Detail Characterization or Molar Composition Method was
selected on the previous screen, the gas composition table will appear.
1. Enter the Mole % for each component in the gas mixture. Refer to
Table 3-2 on page 3-38 for valid entries when entering values into the
gas composition. The total mole % must add up to 100%.
• To zero all 21 fields, click “Clear”.
• The normalize button provides a method to automatically modify
all non-zero values to total 100%.
2. Click “Next”.

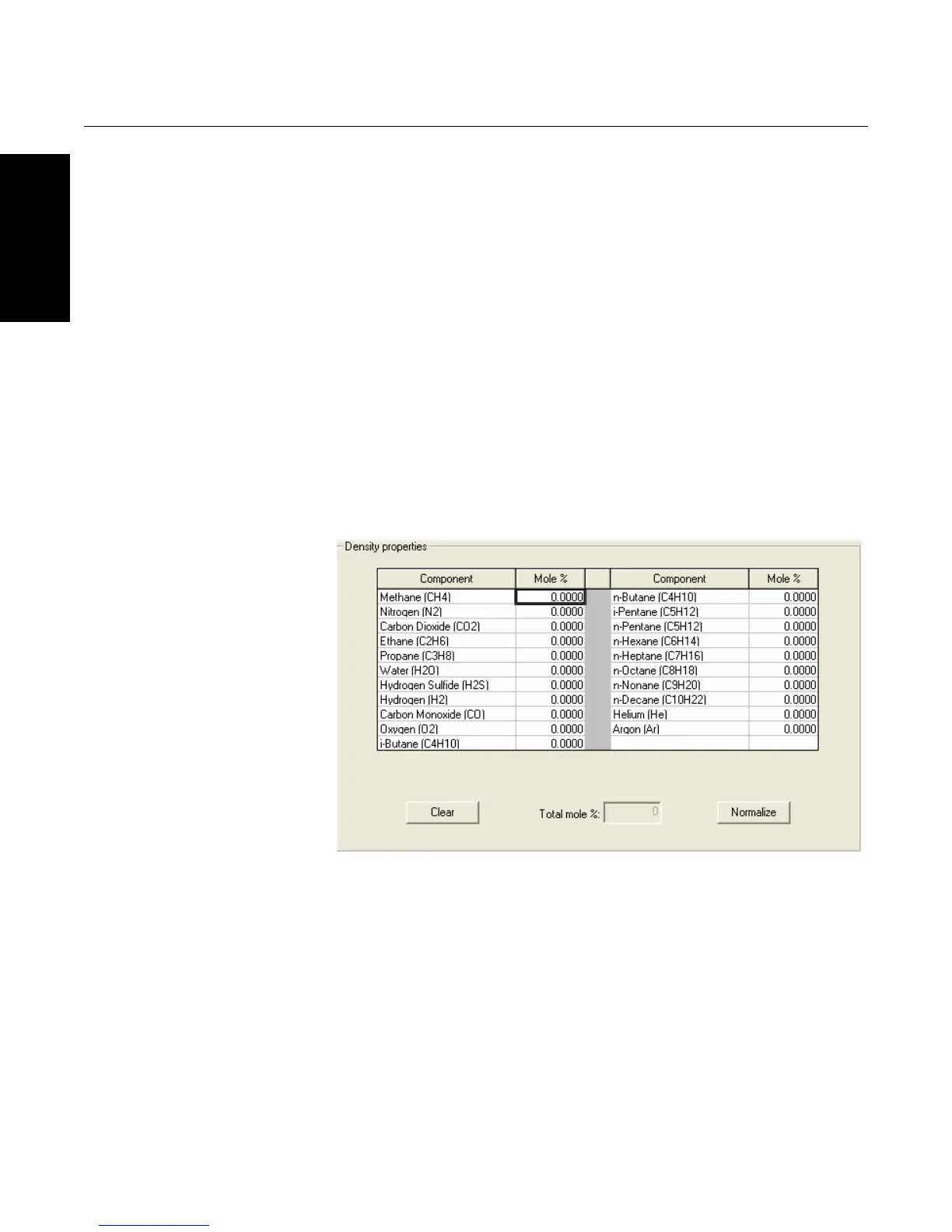

Figure 3-32. Gas Composition
