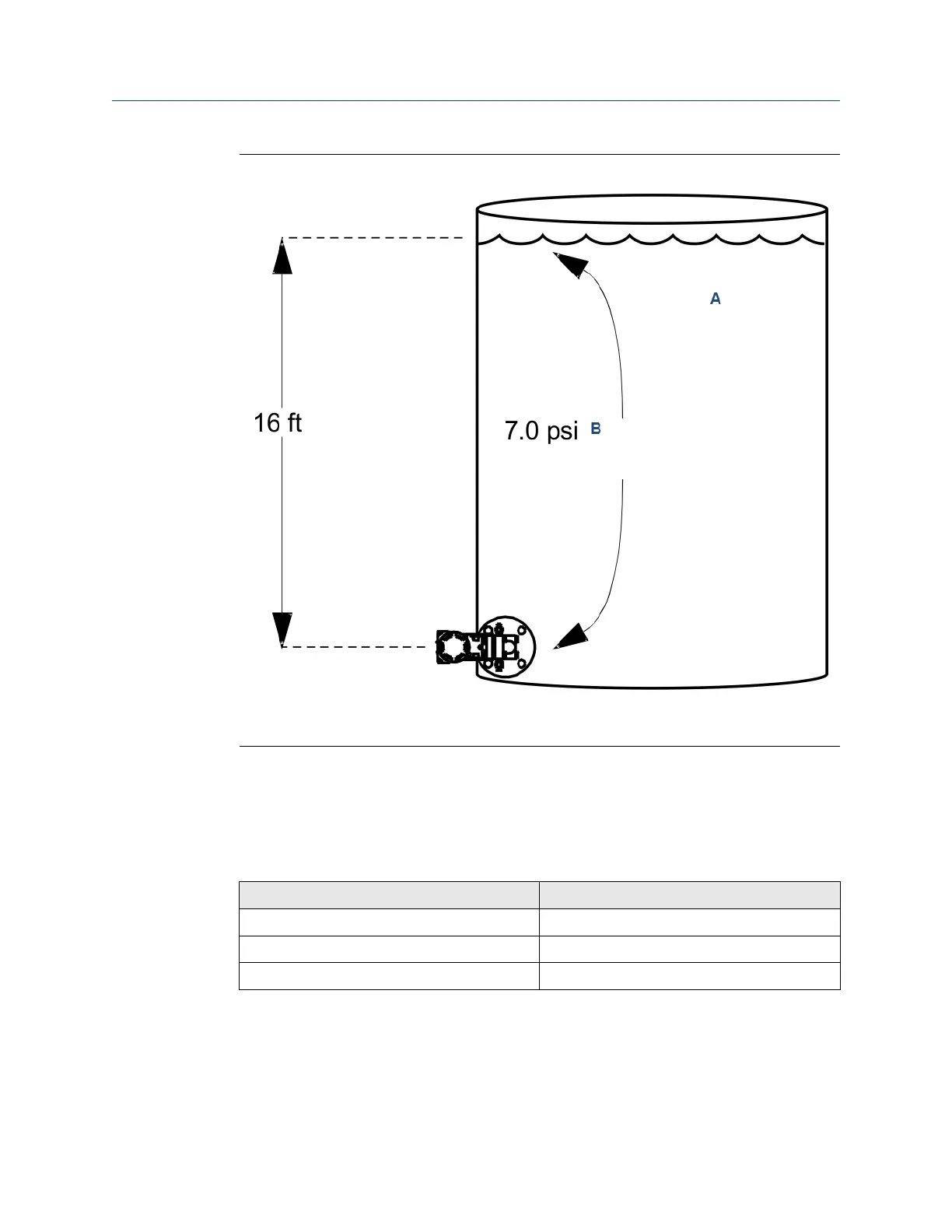

Figure 8-8: Situation #1 Diagram
A. Full tank
B. Measured at the transmitter
Solution to situation #1
Table 8-22 lists the appropriate configuration settings, and Figure 8-9 illustrates
the correct function block configuration.
Table 8-22: Analog Input Function Diagram for a Pressure Transmitter Used
in Level Measurement (Situation #1)
Parameter Configured values
L_TYPE Indirect
XD_SCALE 0 to 7 psi (0 to 0.5 BarG)
OUT_SCALE 0 to 16 ft (0 to 4.9 m)
Manual FOUNDATION
™
Fieldbus
