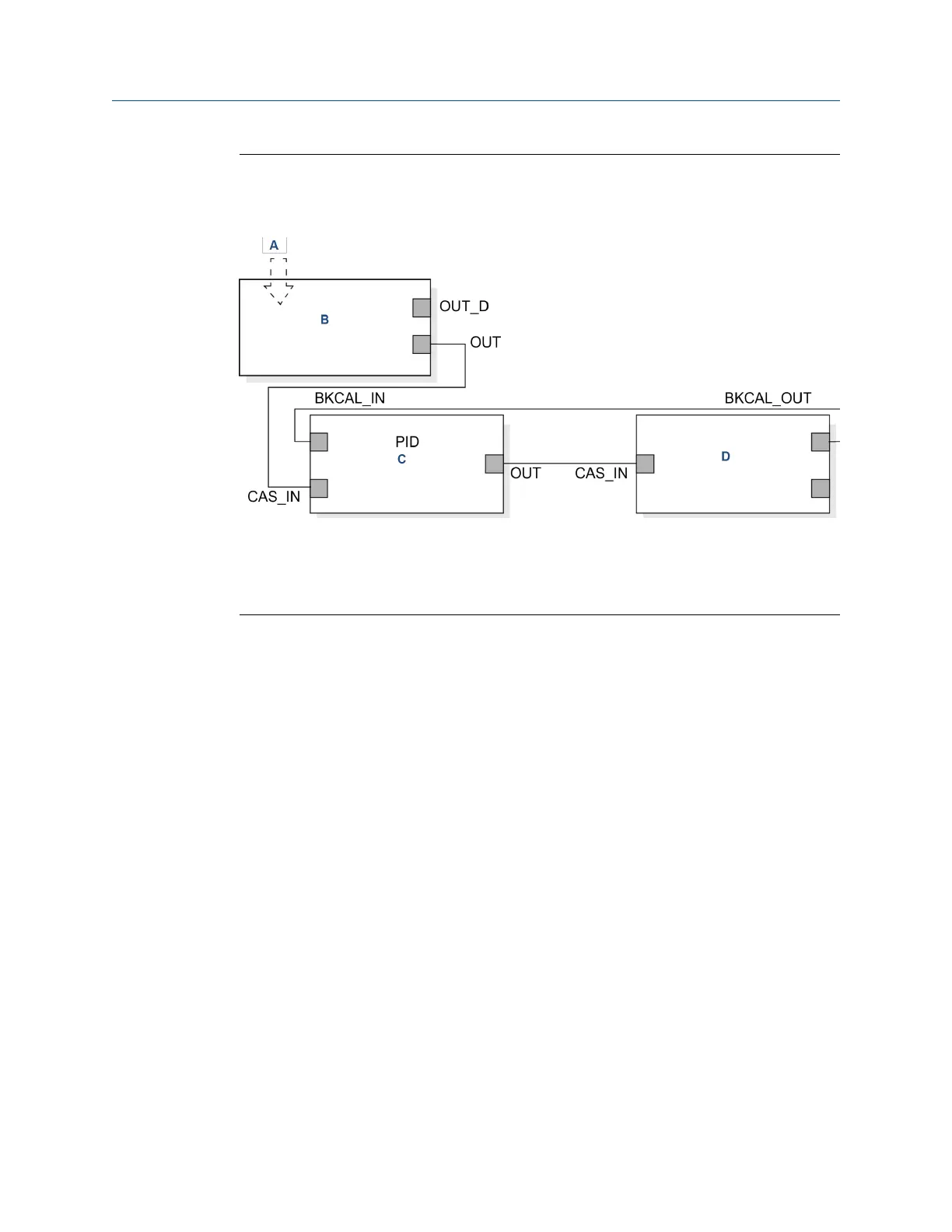

Figure 8-9: Function Block Diagram for a Pressure Transmitter Used in Level
Measurement
A. Analog measurement
B. Analog input function block
C. Function block
D. Analog output function block
Situation #2
The transmitter in situation #1 is installed below the tank in a position where the
liquid column in the impulse line, when the tank is empty, is equivalent to 2.0 psi
(0.1 BarG) (Figure 8-10).
FOUNDATION
™
Fieldbus Manual
December 2022 00809-0500-4880
162 Emerson.com/Rosemount
