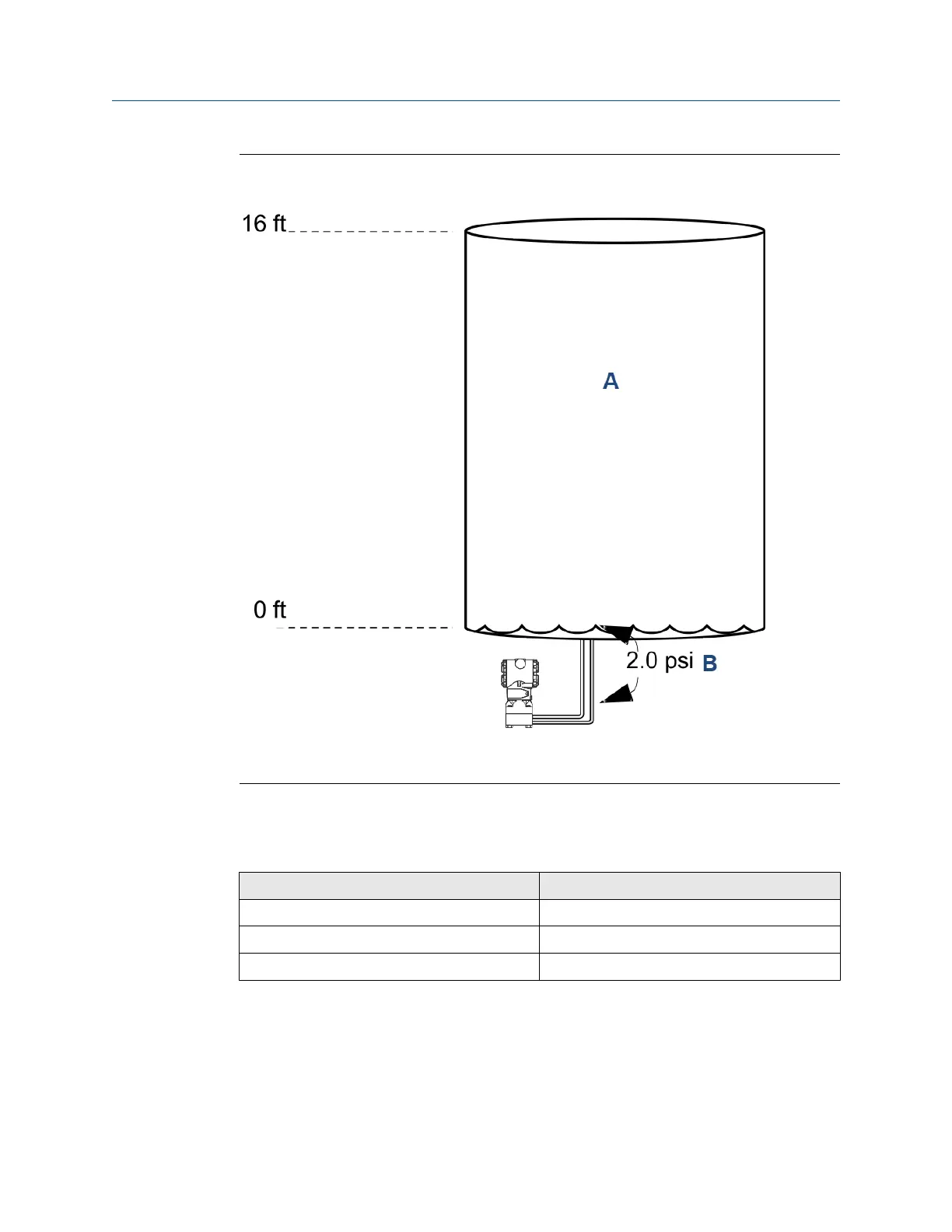

Figure 8-10: Situation #2 Diagram
A. Empty tank
B. Measured at the transmitter
Table 8-23 lists the appropriate configuration settings.
Table 8-23: Analog Input Function Diagram for a Pressure Transmitter Used
in Level Measurement (Situation #2)
Parameter Configured values
L_TYPE Indirect
XD_SCALE 2 to 9 psi (0.1 to 0.6 BarG)
OUT_SCALE 0 to 16 ft (0 to 4.9 m)
8.8.16 Differential pressure transmitter to measure flow
Situation
The liquid flow in a line is to be measured using the differential pressure across
an orifice plate in the line, and the flow measurement will be used in a flow
Manual
FOUNDATION
™
Fieldbus
00809-0500-4880 December 2022
Rosemount OCX8800A 163
