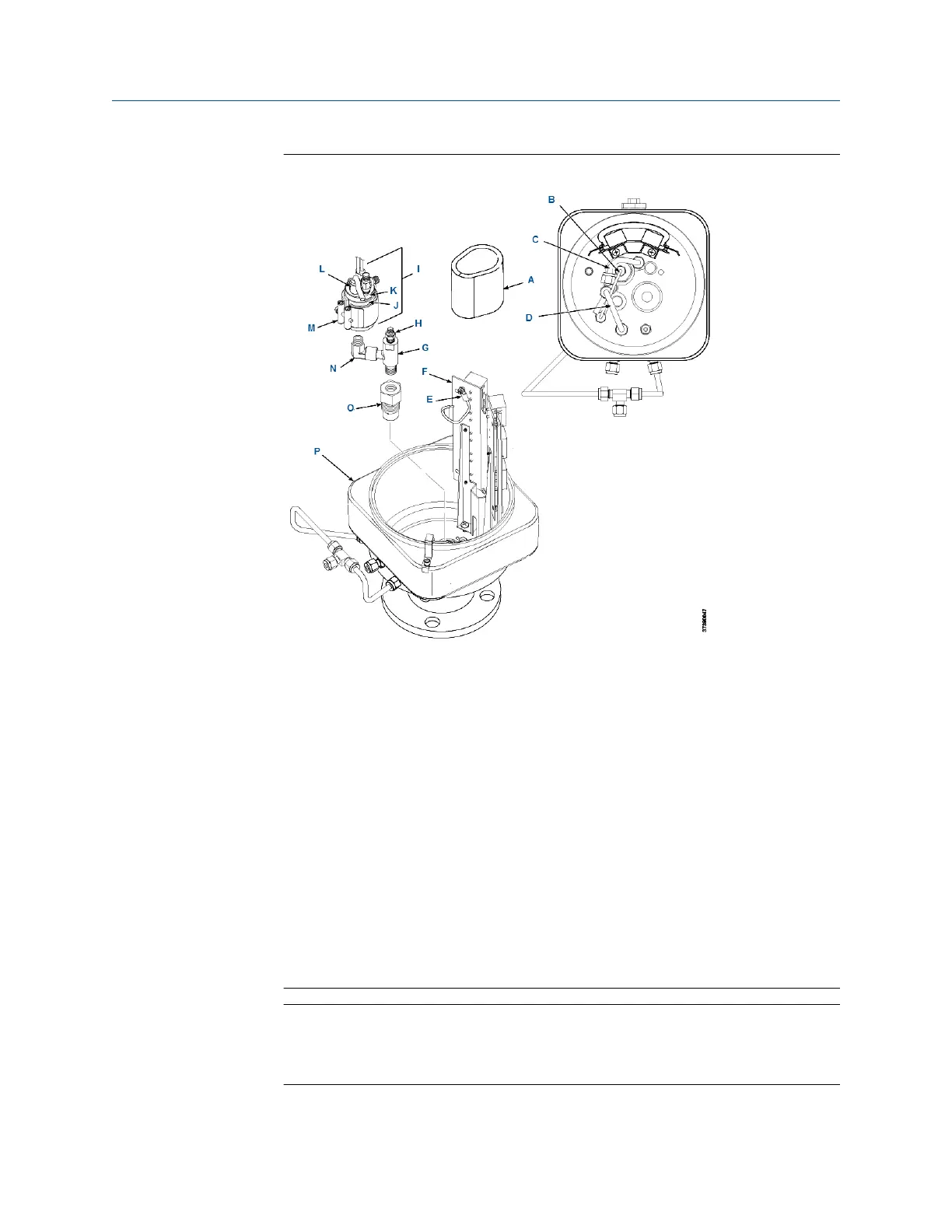

Figure 10-10: Removal of COe Sensor Assembly
A. Insulator
B. Eductor air tube
C. COe extractive tube
D. Dilution air tube
E. CJC sensor
F. Terminal block mounting
G. Eductor
H. Tube fitting
I. COe sensor assembly
J. Sensor holder
K. Heater insulator
L. COe thermocouple
M. COe band heater
N. Eductor elbow
O. Eductor holder
P. Sensor housing
Note
For easier access, you may remove two screws from the base of the
terminal block mounting (F) and move the terminal block mounting
assembly out of the way.
Manual Maintenance and service
00809-0500-4880 December 2022
Rosemount OCX8800A 255
