2. Install and tighten the eductor (G) in the eductor holder (O).
3. Install and tighten the elbow (N) on the eductor (G).
The male port of the elbow must point up and be in line with the long axis
of eductor.
4. Apply anti-seize component to the external pipe threads of eductor holder
(O).
5. Install and tighten eductor holder (O) in sensor housing (P). Align eductor
with matchmark, as shown in Figure 10-19.

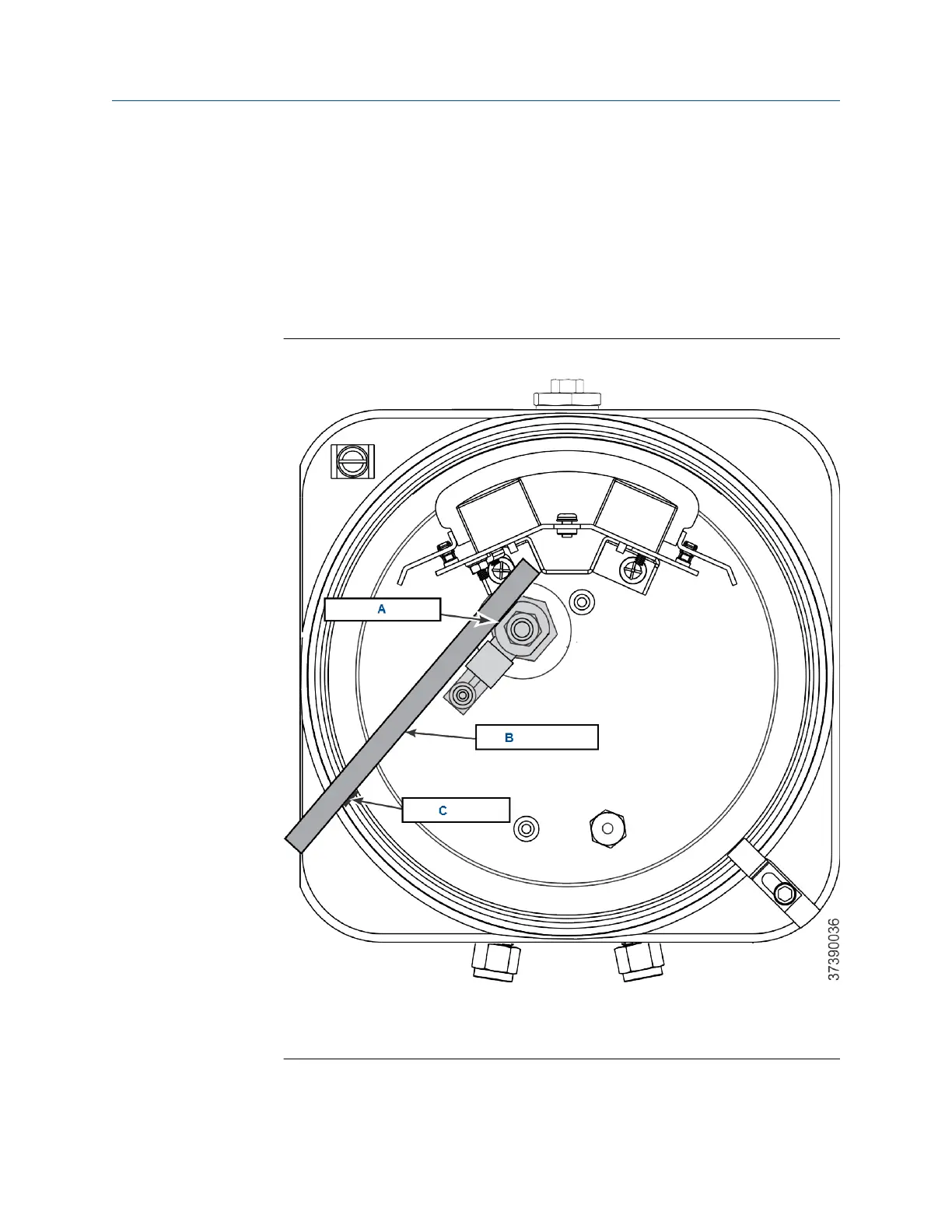

Figure 10-19: Eductor Alignment Matchmarks
A. Eductor flat
B. Straight edge
C. Matchmark
