Install COe sensor assembly

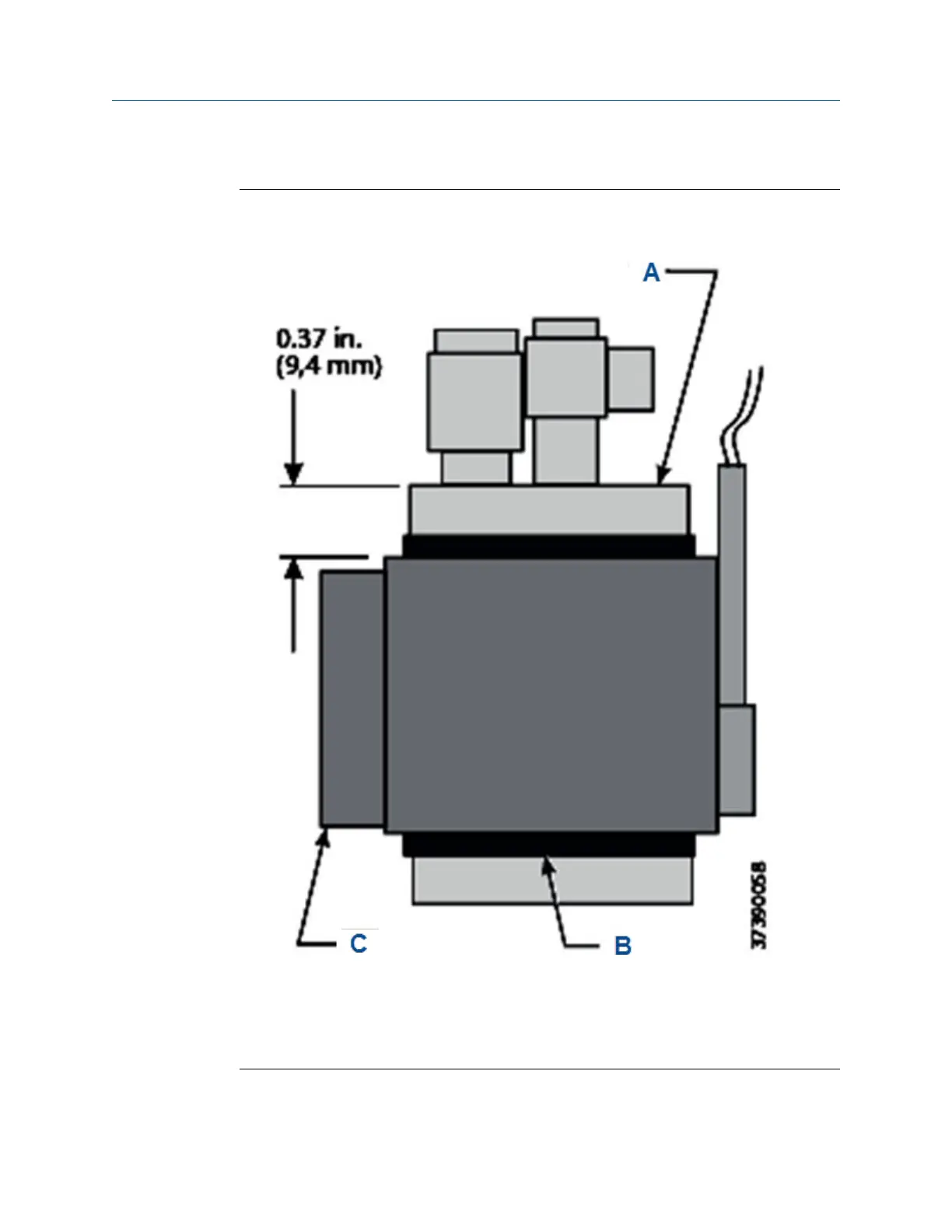

Figure 10-20: Band Heater Height
A. COe sensor
B. Insulator
C. Band heater
Maintenance and service Manual
December 2022 00809-0500-4880
272 Emerson.com/Rosemount
