Procedure
1. Apply pipe thread sealant (Loctite #567) to the exposed pipe threads of
eductor elbow (Figure 10-18).
Do not apply sealant to the first turn of the pipe threads.
2. Screw the sensor holder onto the eductor elbow.
3. With wrenches on eductor elbow and on flats of sensor holder, tighten the
sensor holder.
Do not allow the eductor elbow to turn.
4. Tighten the sensor holder to align outside flat with matchmark on sensor
housing flange, as shown in Figure 10-21.

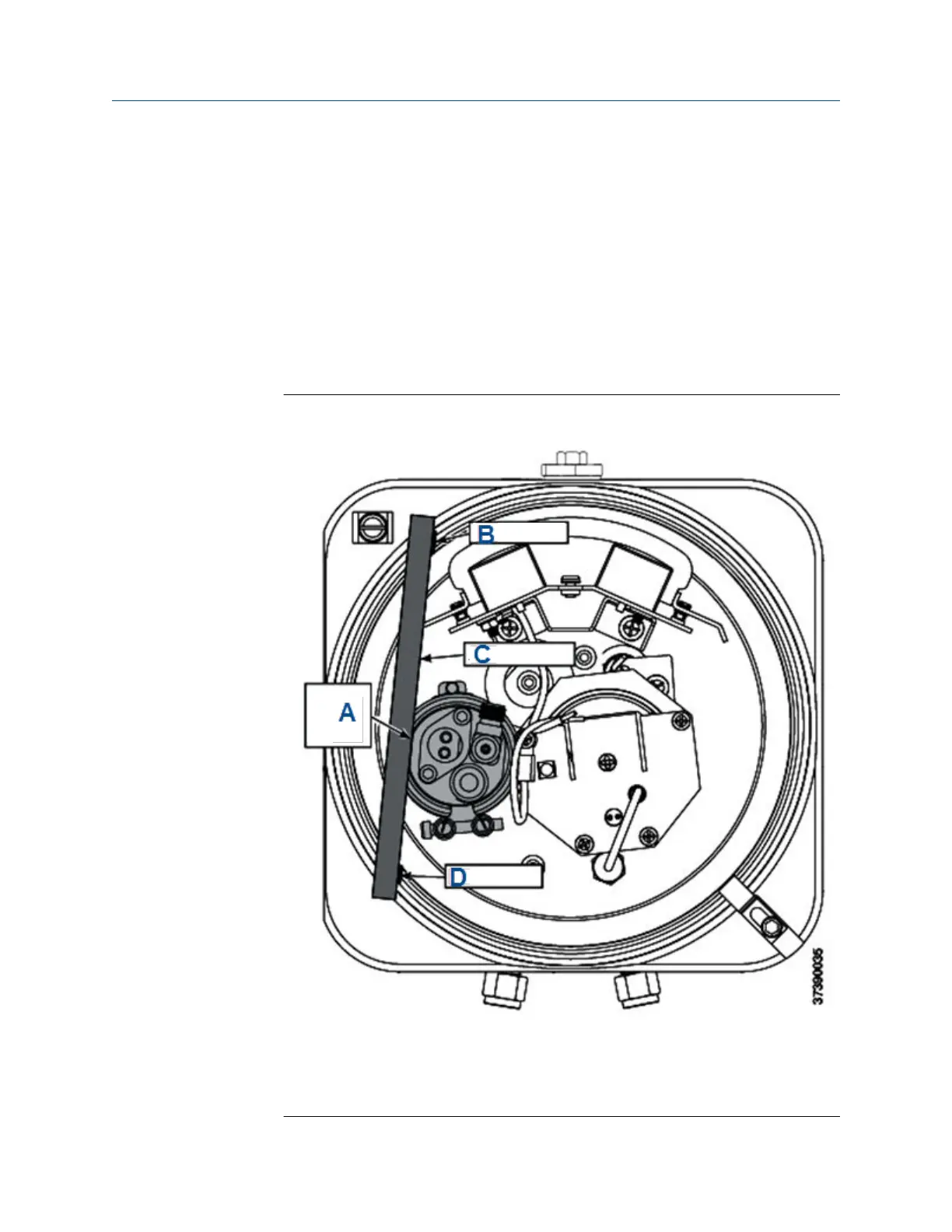

Figure 10-21: COe Sensor Holder Alignment
A. Sensor holder flat
B. Matchmark
C. Straight edge
D. Matchmark
