Remove EMI filter and terminal block
Procedure
1. Disconnect EMI filter wiring (Figure 10-26) at terminal block (F).

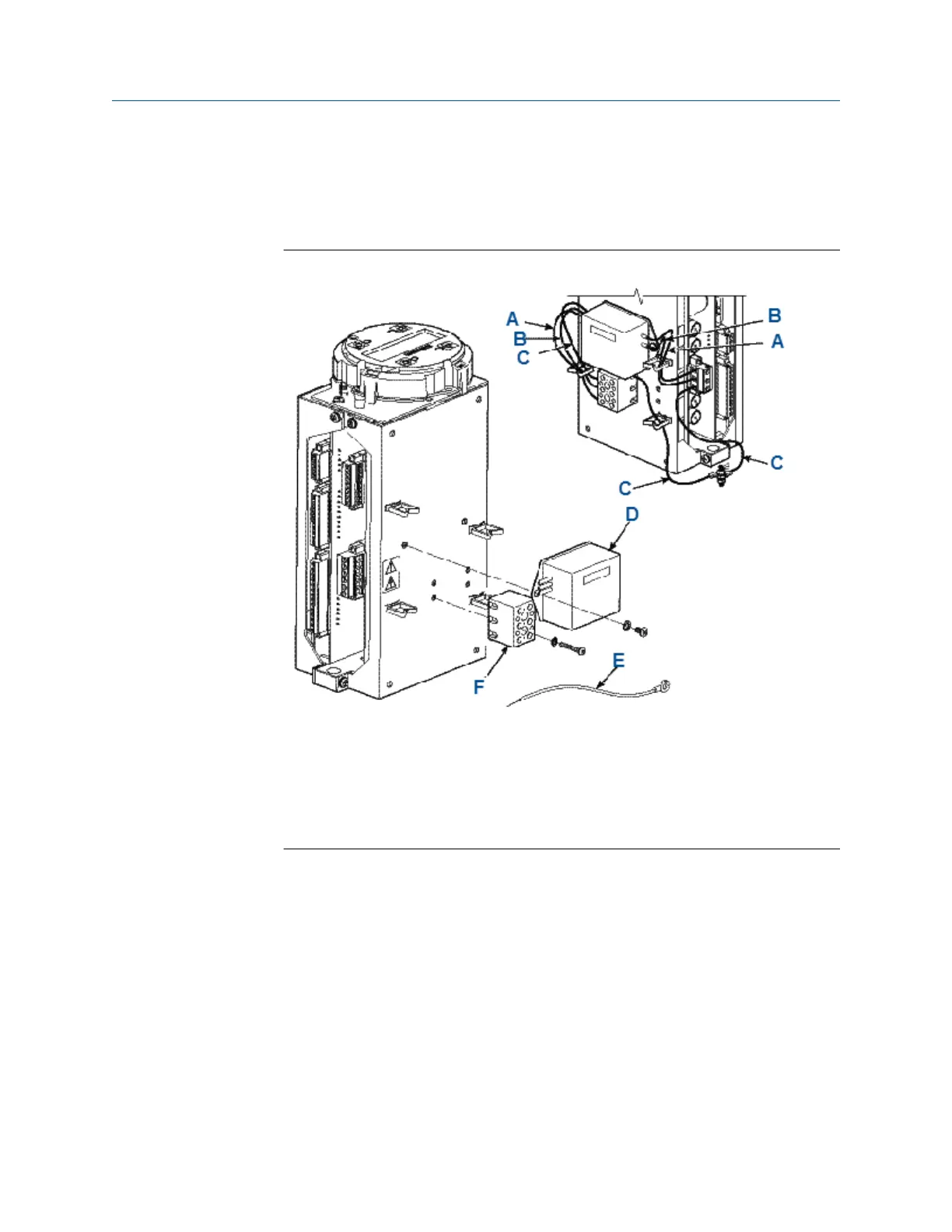

Figure 10-26: Removal/Installation of EMI Filter
A. Brown
B. Blue
C. Green
D. EMI filter
E. Ground wire
F. Terminal block
2. Disconnect EMI filter wiring at AC power input terminal block on electronic
stack.
3. Unbolt and remove EMI filter (D) from electronic stack.
4. Remove ground wire (E) from terminal block (F).
5. Unbolt and remove terminal block (F) from electronic stack.
