2.2.2 Install the transmitter

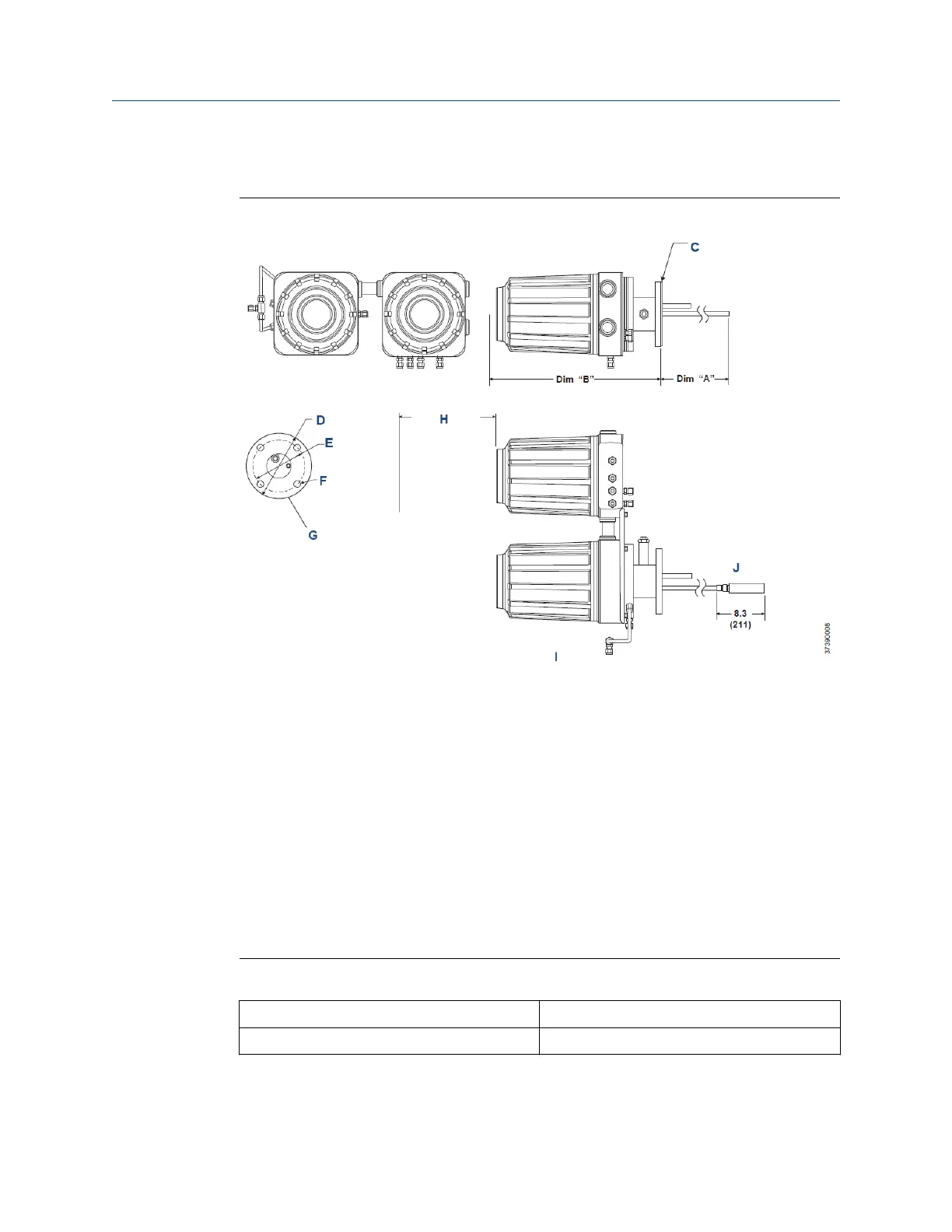

Figure 2-1: Rosemount OCX8800 Installation
All dimensions are in inches with millimeters in parentheses.
Insulate if exposed to adverse weather or extreme temperature changes. Install a
protective housing and/or insulation around the transmitter.
A. Insertion depth (see Table 2-3).
B. Removal envelope (see Table 2-3).
C. See Table 2-1.
D. Flange diameter
E. B.C. diameter
F. Hole diameter
G. See Table 2-2.
H. Allow 9 in. (229 mm) for cover removal.
I. Bottom view
J. Optional in situ filter
Table 2-1: 0.06-in. Thick Gasket
ANSI 353B18H02
DIN 353B45H01
Manual Install
00809-0500-4880 December 2022
Rosemount OCX8800A 29
