Emerson X-STREAM Series User Manual

X-STREAM Non-Incendive
Emerson Process Management GmbH & Co. OHGA-18
Instruction Manual
HASXENE-IM-EX
12/2014

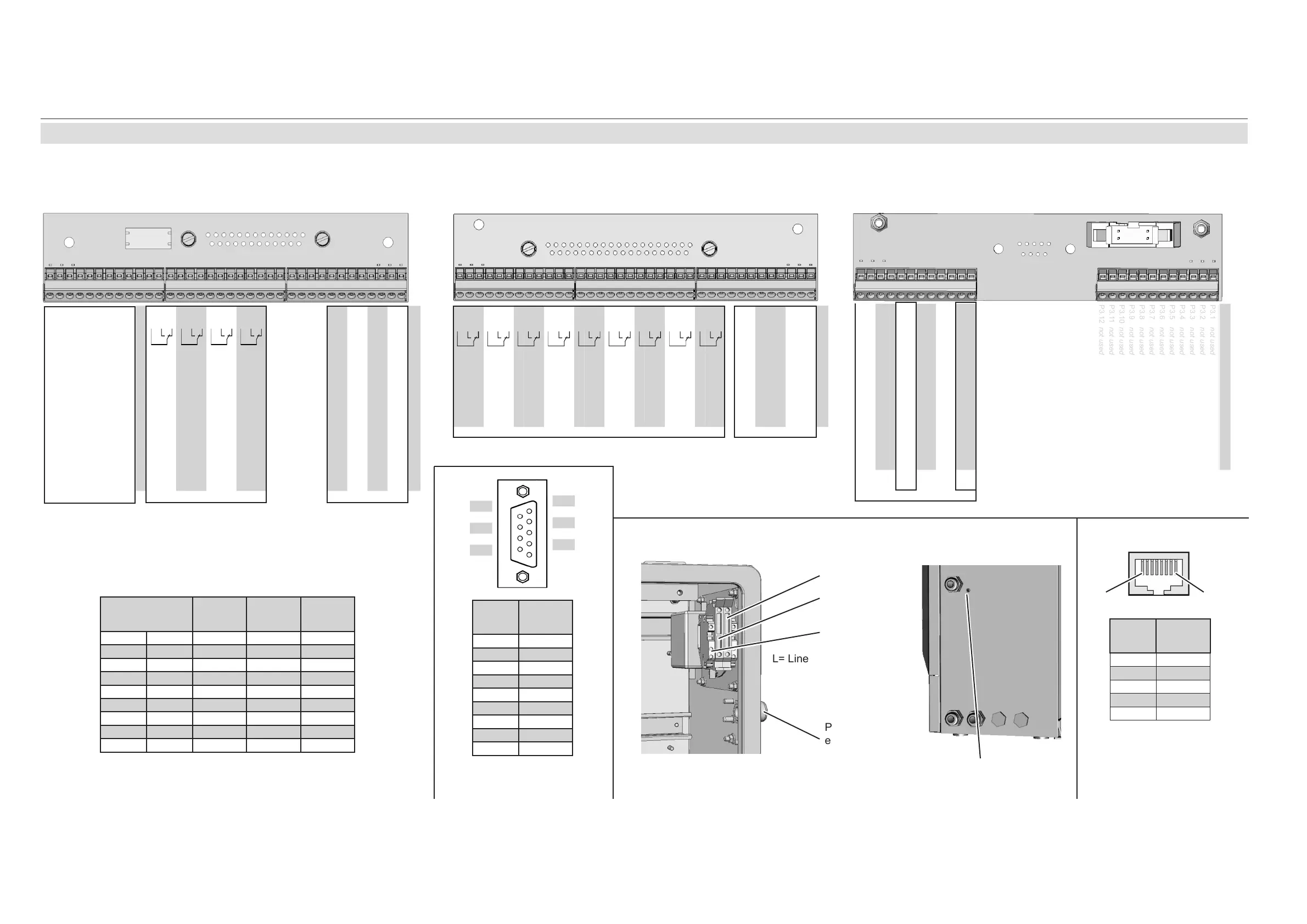

A.7 Assignment of Plugs and Terminals
A.7 Assignment of Plugs and Terminals
XSTA: Standard strip with standard and optional signals XSTD: Optional strips with
7 Dig Inputs and 9 Dig Outputs each
Signal Terminals Strips
Service Port Connector -
Serial RS 232 interface
Pin
9
8
7
6
Pin
5
4
3
2
1
Pin no. RS 232
1 Common
2 RXD
3 TXD
4 not used
5 Common
6 not used
7 not used
8 not used
9 not used
Ethernet connector
for Modbus
Pin 1 Pin 8
Pin no. Signal
1 TX+
2 TX-
3 RX+
6 RX-
other not used
Assignment of serial interface terminals
*)
See table below
**)
Conguration of relay output terminals as per stan-
dard factory setting (NAMUR status signals) . NAMUR
status signals are automatically congured Fail Safe!
XSTI: Analog inputs
Analog Inputs
Pin Signal P3.1 not used P3.2 not used P3.3 not used P3.4 not used P3.5 not used P3.6 not used P3.7 not used P3.8 not used P3.9 not used P3.10 not used P3.11 not used P3.12 not used P2.1 BR 1 t a wire bridge here to apply analog P2.2 BR 1 signal in current mode to input 1 P2.3 Input 1 high (+) P2.4 Input 1 high (+) P2.5 Input 1 low (-) P2.6 Input 1 low (-) P2.7 BR 2 t a wire bridge here to apply analog P2.8 BR 2 signal in current mode to input 2 P2.9 Input 2 high (+) P2.10 Input 2 high (+) P2.11 Input 2 low (-) P2.12 Input 2 low (-)
{
}
{
}
IN1
Mode
IN2
Mode
Pin Signal P3.1 Input 1/8
***)
P3.2 Input 2/9 P3.3 Input 3/10 P3.4 Input 4/11 P3.5 Input 5/12 P3.6 Input 6/13 P3.7 Input 7/14 P3.8
GND for Inputs 1-7/8-14
P3.9 not used P3.10 Output 5/14, NC P3.11 Output 5/14, NO P3.12 Output 5/14, COM P4.1 Output 6/15, NC P4.2 Output 6/15, NO P4.3 Output 6/15, COM P4.4 Output 7/16, NC P4.5 Output 7/16, NO P4.6 Output 7/16, COM P4.7 Output 8/17, NC P4.8 Output 8/17, NO P4.9 Output 8/17, COM P4.10 Output 9/18, NC P4.11 Output 9/18, NO P4.12 Output 9/18, COM P2.1 Output 10/19, NC P2.2 Output 10/19, NO P2.3 Output 10/19, COM P2.4 Output 11/20, NC P2.5 Output 11/20, NO P2.6 Output 11/20, COM P2.6 Output 12/21, NC P2.8 Output 12/21, NO P2.9 Output 12/21, COM P2.10 Output 13/22, NC P2.11 Output 13/22, NO P2.12 Output 13/22, COM
Digital InputsDigital Outputs
***)
1
st
/2
nd
no. identies inputs/outputs
on the 1
st
/2
nd
expansion board
Power terminals
L
PE
N
Power cord
entry
L= Line
N= Neutral
PE= Protective Earth
Note!
Line and neutral terminals with built-in fuse holders
Pin Signal P2.1 Channel 1, (+) 4 (0) - 20 mA P2.2 Channel 1, GND P2.3 Channel 2, (+) 4 (0) - 20 mA P2.4 Channel 2, GND P2.5 Channel 3, (+) 4 (0) - 20 mA P2.6 Channel 3, GND P2.7 Channel 4, (+) 4 (0) - 20 mA P2.8 Channel 4, GND P2.9 not used P2.10 not used P2.11 not used P2.12 not used P3.1 not used P3.2 not used P3.3 Output 1 (Failure), NC P3.4 Output 1 (Failure), NO P3.5 Output 1 (Failure), COM P3.6 Output 2 (Maintenance Request), NC P3.7 Output 2 (Maintenance Request), NO P3.8 Output 2 (Maintenance Request), COM P3.9 Output 3 (Out of Spec), NC P3.10 Output 3 (Out of Spec), NO P3.11 Output 3 (Out of Spec), COM P3.12 Output 4 (Function check), NC P4.1 Output 4 (Function check), NO P4.2 Output 4 (Function check), COM P4.3 not used P4.4 P4.5 P4.6 P4.7 P4.8 P4.9 P4.10 P4.11 P4.12
Relay Outputs
**)
Analog Outputs
Serial Interface
*)
Terminal
MOD 485/
2 wire
MOD 485/
4 wire
RS 232
P4.4 SER1 Common Common Common
P4.5 SER2 not used not used RXD
P4.6 SER3 not used not used TXD
P4.7 SER4 not used RXD1(+) not used
P4.8 SER5 D1(+) TXD1(+) Common
P4.9 SER6 not used not used not used
P4.10 7 not used not used not used
P4.11 8 not used RXD0(-) not used
P4.12 9 D0(-) TXD0(-) not used
*) Alternatively on the curcuit card XASI,
the Jumper P2 can be plugged
**) Alternatively on the curcuit card XASI,
the Jumper P1 can be plugged
Equipotential bonding
connector (thread:M5)
