Emerson X-STREAM Series User Manual

Emerson Process Management GmbH & Co. OHG 2-21
X-STREAM Non-Incendive
Instruction Manual
HASXENE-IM-EX
12/2014
2
Installation

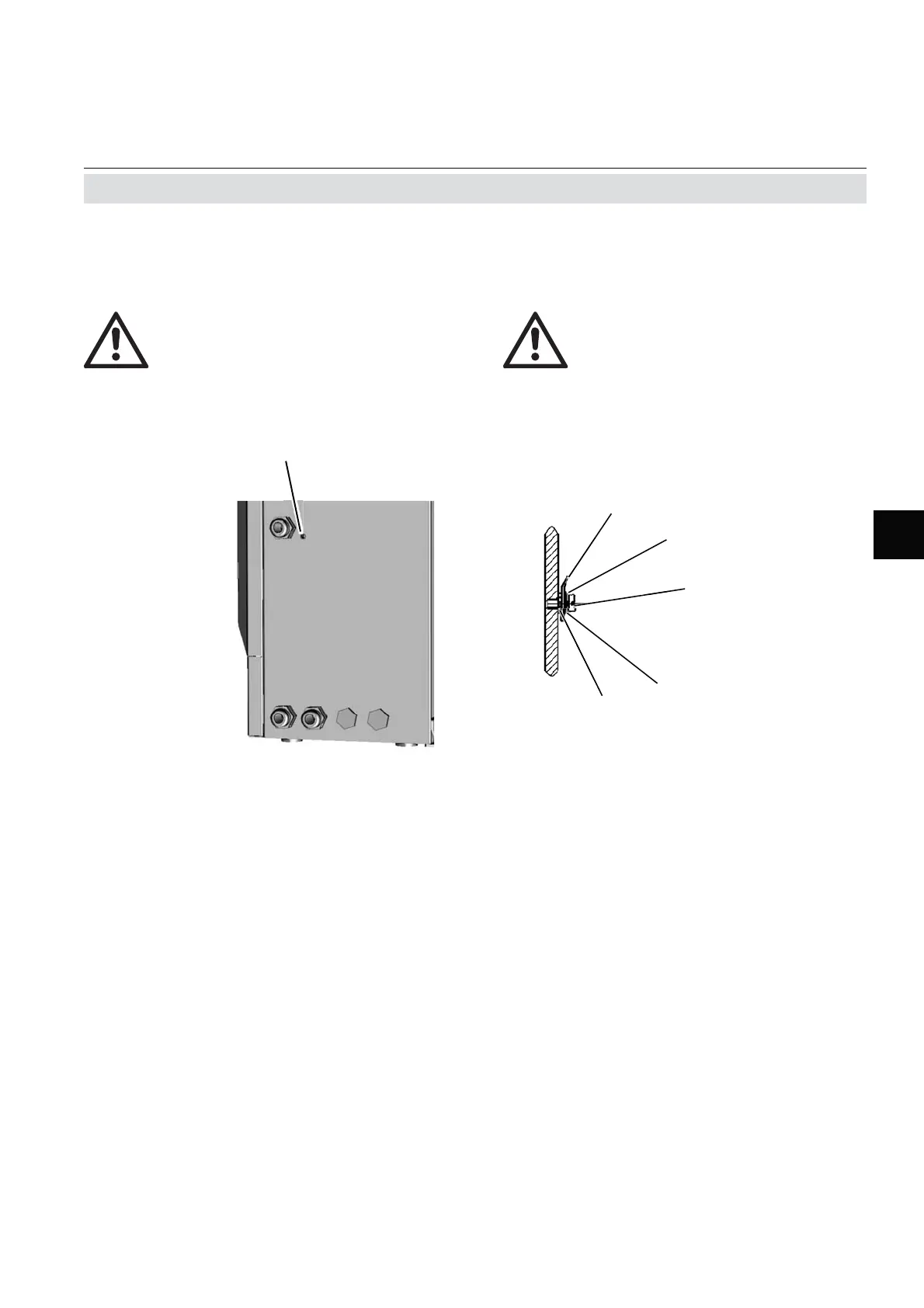

Fig. 2-11: Equipotential Bonding Conductor Terminal
Thread (M5) for connecting the equipotential bon-
ding conductor
1 Lock washer
2 Ring terminal
3 Flat washer
4 Lock washer
5 Screw M5
1
3
4
2
5
Take care to use a cable for the
equipotential connection with
at least the same cross section
as provided by the power cable!
Maximum depth of the enclosu-
re thread is 6 mm!
Take care to use a screw of a
appropriate length, to ensure
the ring terminal (item 2) is pro-
perly fi xed!
2.7 Installation - Electrical
