Emerson Process Management GmbH & Co. OHG2-16
X-STREAM Non-Incendive
Instruction Manual
HASXENE-IM-EX
12/2014
Consider the special installation instructions
in chapter 4 of the X-STREAM gas analyzer
series manuals and the notes on installing
cable glands on page 2-8!
Notes!
Depending on confi guration, an analyzer can
be fi tted with up to two of these terminal blocks
(the unit will then feature 14 digital inputs and
18 digital outputs). To aid identifi cation, the
sockets are labelled X4.1 and X4.2.
Pin Signal
P3.1 Output 1
P3.2 Output 2
P3.3 Output 3
P3.4 Output 4
P3.5 Output 5
P3.6 Output 6
P3.7 Output 7
P3.8 GND for inputs 1-7
P3.9 unused
P3.10 Output 5, NC
P3.11 Output 5, NO
P3.12 Output 5, COM
P4.1 Output 6, NC
P4.2 Output 6, NO
P4.3 Output 6, COM
P4.4 Output 7, NC
P4.5 Output 7, NO
P4.6 Output 7, COM
P4.7 Output 8, NC
P4.8 Output 8, NO
P4.9 Output 8, COM
P4.10 Output 9, NC
P4.11 Output 9, NO
P4.12 Output 9, COM
P2.1 Output 10, NC
P2.2 Output 10, NO
P2.3 Output 10, COM
P2.4 Output 11, NC
P2.5 Output 11, NO
P2.6 Output 11, COM
P2.7 Output 12, NC
P2.8 Output 12, NO
P2.9 Output 12, COM
P2.10 Output 13, NC
P2.11 Output 13, NO
P2.12 Output 13, COM
Digital inputs
Digital outputs
P4
Note!
The confi guration illustra-
ted here is that of the fi rst
adapter, labelled X4.1.
Inputs 8-14 and outputs
14-22, if available, are on
the second adapter X4.2,
see label above).

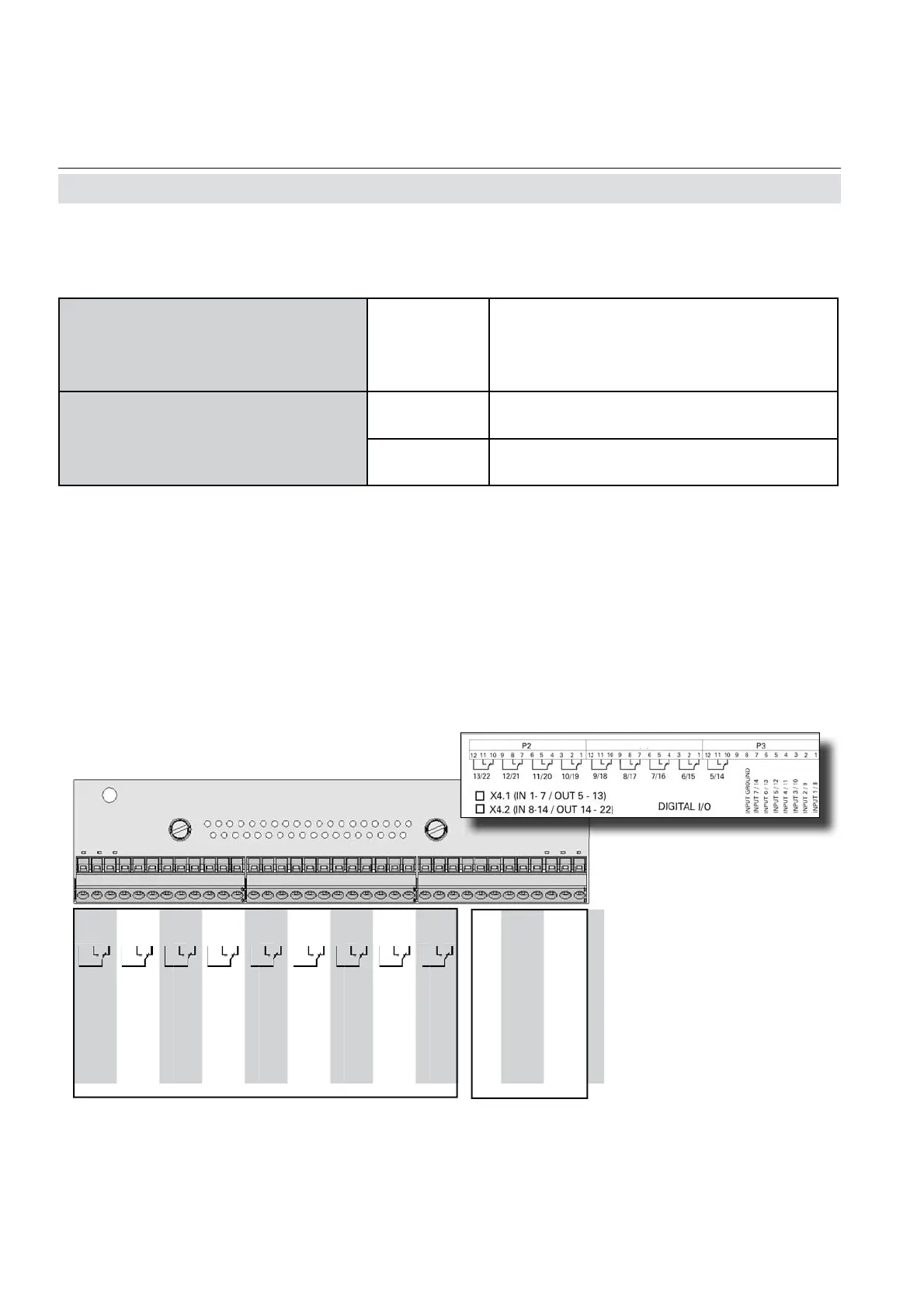

Fig. 2-8: Terminals Block X4.1 and X4.2 - Digital Inputs and Outputs
2.7 Installation - Electrical
Digital in- and outputs
7 or 14 digital inputs
electrical
specifi cation
max. 30 V, internally limited to 2.3 mA
HIGH: min. 4 V;
LOW: max. 3 V
common GND
9 or 18 additional relay outputs
electrical
specifi cation
max. load. 30 V; 1 A; 30 W resistive
mechancial
specifi cation
Dry relay change-over contacts can be
used as NO or NC
