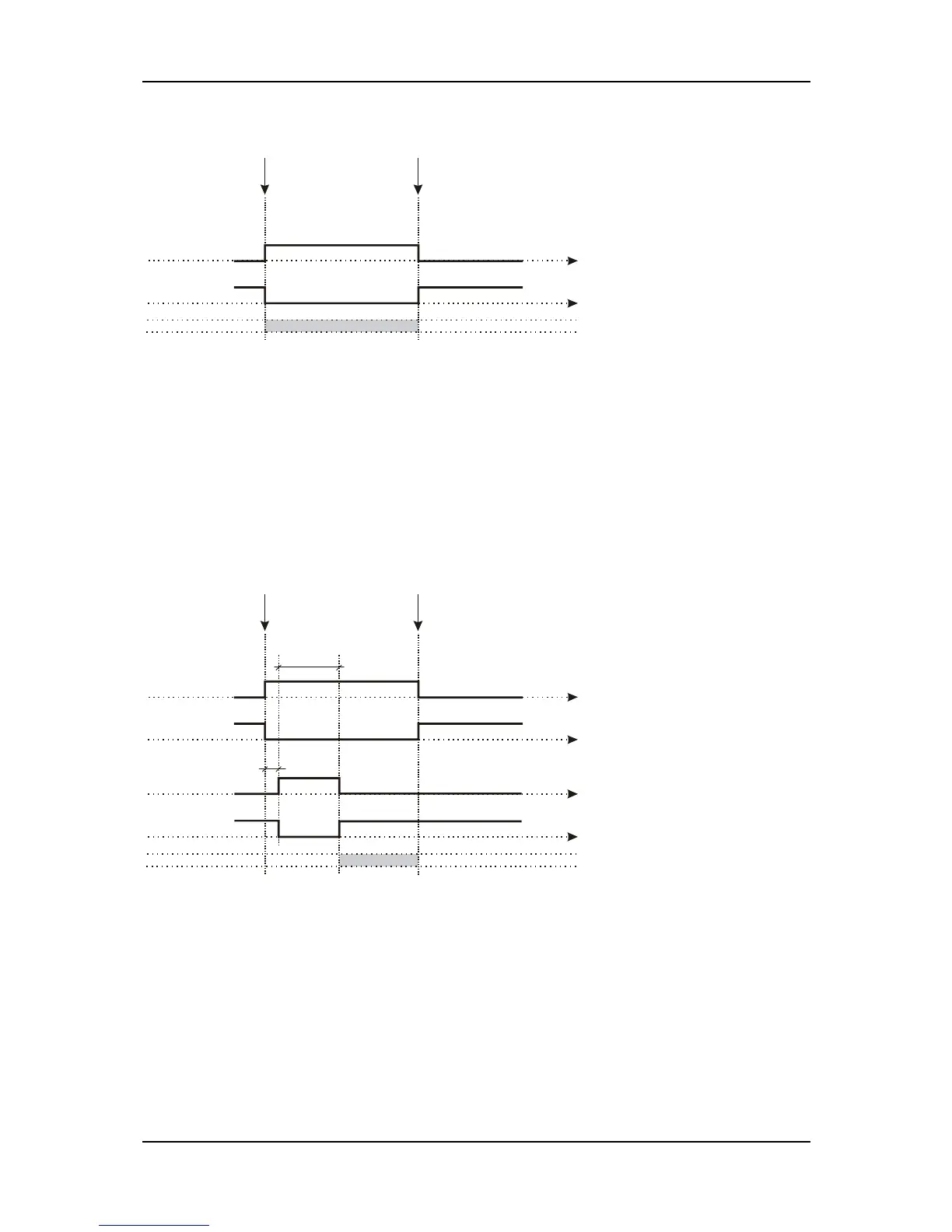

Example: If Hardware Breaker Selection parameter is selected as 0;
For closing
Gen. Shalter
Gen. Closed Out.
(NO)
Gen. Closed Out.
(NC)
For opening
Gen. Shalter
Closed Gen. Shalter
Opened
t[s]
t[s]
1- Mains and Gen schalters have only close drives, when want to schalter close, close
breaker output on and after 1 sec. open breaker output on and after breaker close pulse time
open breaker output will off. When want to schalter open close breaker output and open
breaker output will off.
Parameters; GEN CLOSE BREAKER CONTACT TYPE, GEN CLOSE TIMER(if gen closed
input selected), GEN OPEN BREAKER CONTACT TYPE, GEN OPEN TIMER(if gen closed
input selected), MAIN CLOSE BREAKER CONTACT TYPE, MAINS CLOSE TIMER(if mains
closed input selected), MAIN OPEN BREAKER CONTACT TYPE, MAINS OPEN TIMER(if
mains closed input selected),BREAKER CLOSE PULSE TIME, TRANSFER TIME.
Example: If Hardware Breaker Selection parameter is selected as 1;
For closing
Gen. Shalter
Gen. Closed Out.
(NO)
Gen. Closed Out.
(NC)
For opening
Gen. Shalter
Closed
Gen. Shalter
Opened
t[s]
t[s]
t[s]
t[s]
Gen. Open Out.
(NO)
Gen. Open Out.
(NC)
1 s
Breaker close
pulse time
2- USER CONFIGURED: User can select all the schalter types.
Parameters; GEN CLOSE BREAKER CONTACT TYPE, GEN CLOSE BREAKER RELAY
TYPE, GEN CLOSE TIMER(if gen closed input selected), GEN OPEN BREAKER CONTACT
TYPE, GEN OPEN BREAKER RELAY TYPE, GEN OPEN TIMER(if gen closed input
selected), MAIN CLOSE BREAKER CONTACT TYPE, MAIN CLOSE BREAKER RELAY
TYPE, MAINS CLOSE TIMER(if mains closed input selected), MAIN OPEN BREAKER
CONTACT TYPE, MAIN OPEN BREAKER RELAY TYPE, MAINS OPEN TIMER(if mains
closed input selected), BREAKER CLOSE PULSE TIME(if Gen Close Breaker Relay Type or
Main Close Breaker Relay Type parameter is selected as 1), BREAKER OPEN PULSE
TIME(if Gen Open Breaker Relay Type or Main Open Breaker Relay Type parameter is
selected as 1), TRANSFER TIME.
