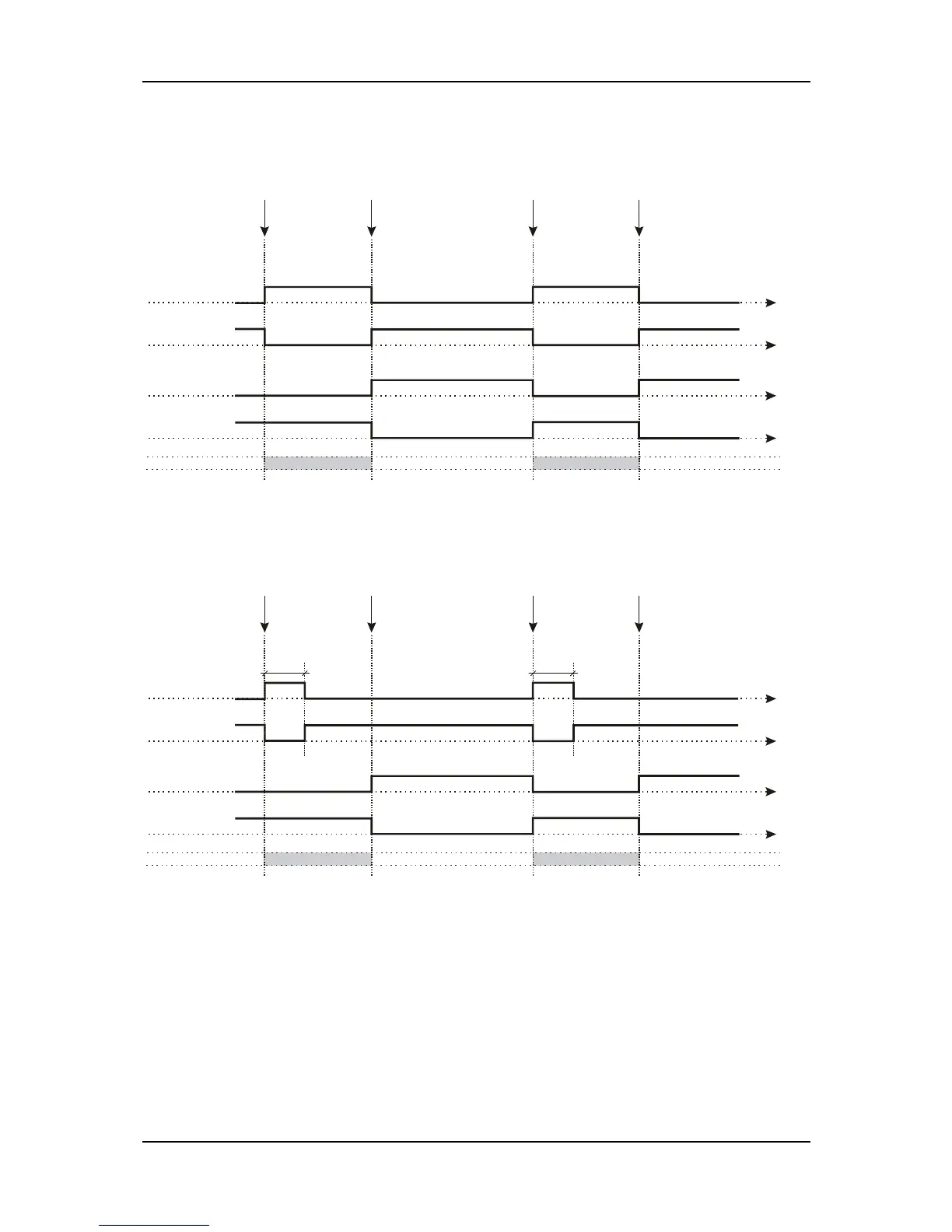

Example-1: If Hardware Breaker Selection parameter is selected as 2 (user configured),
Gen. Close Breaker Relay Type parameter is selected as 0 (NOR) and Gen. Open Breaker
Relay Type parameter is selected as 0 (NOR);
For closing
Gen. Shalter
Gen. Closed Out.
(NO)
Gen. Closed Out.
(NC)
For opening
Gen. Shalter
t[s]
t[s]
Closed Gen. Shalter
Opened
For closing
Gen. Shalter
Gen. Open Out.
(NO)
Gen. Open Out.
(NC)
t[s]
t[s]
For opening
Gen. Shalter
Closed
Opened
Example-2: If Hardware Breaker Selection parameter is selected as 2 (user configured),
Gen. Close Breaker Relay Type parameter is selected as 1 (PULSE) and Gen. Open
Breaker Relay Type parameter is selected as 0 (NOR);
For closing
Gen. Shalter
Gen. Closed Out.
(NO)
Gen. Closed Out.
(NC)
For opening
Gen. Shalter
t[s]
t[s]
Closed Gen. Shalter
Opened
For closing
Gen. Shalter
Gen. Open Out.
(NO)
Gen. Open Out.
(NC)
t[s]
t[s]
For opening
Gen. Shalter
Closed
Opened
Breaker close
pulse time
Breaker close
pulse time
