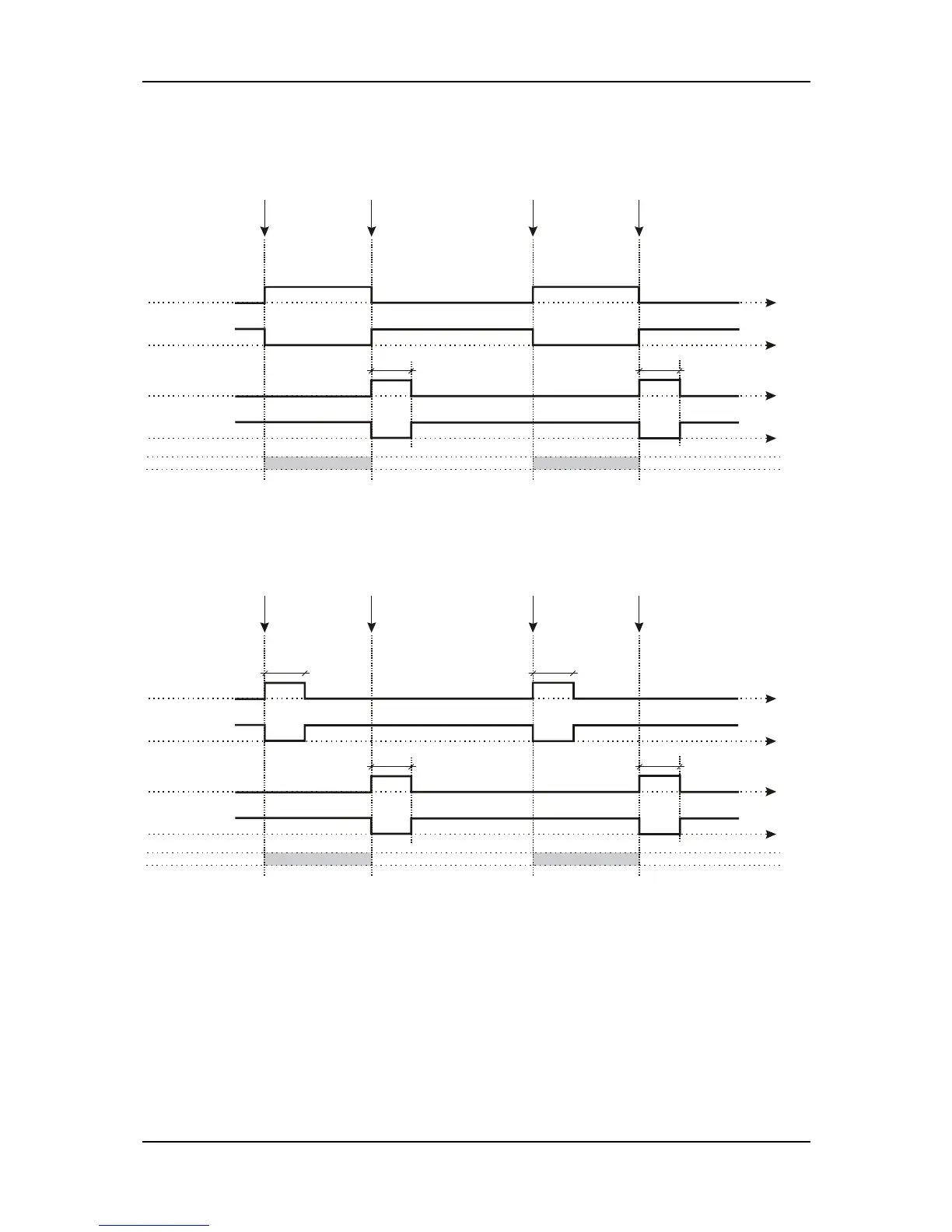

Example-3: If Hardware Breaker Selection parameter is selected as 2 (user configured),
Gen. Close Breaker Relay Type parameter is selected as 0 (NOR) and Gen. Open Breaker
Relay Type parameter is selected as 1 (PULSE);
pulse time
Example-4: If Hardware Breaker Selection parameter is selected as 2 (user configured),
Gen. Close Breaker Relay Type parameter is selected as 1 (PULSE) and Gen. Open
Breaker Relay Type parameter is selected as 1 (PULSE);
pulse time
Breaker close
pulse time
Breaker close
pulse time
GEN. CLOSE TIMER
This is used to monitor the closure of the generator contactor or breaker. It will only operate if
an auxiliary input is configured as ‘Generator Closed Auxiliary’ and connected to the auxiliary
on the generator contactor or breaker. Once a generator closed signal is issued the ‘gen
close timer’ is initiated. Should the ‘Generator Closed Auxiliary’ input become active the timer
the ‘gen close timer’ is cancelled. If the timer expires and the ‘Generator Closed Auxiliary’
has not become active the module will issue a ‘generator failed to close’ alarm.
GEN. OPEN TIMER
This is used to monitor the opening of the generator contactor or breaker. It will only operate
if an auxiliary input is configured as ‘Generator Closed Auxiliary’ and connected to the
auxiliary on the generator contactor or breaker. Once a generator open signal is issued the
