Technical Data for Current Transformer (CT)
* Weight including 1m (39 inch) cable. Please note that max. length of the
CTM cable is 1 m and this cable cannot be extended.

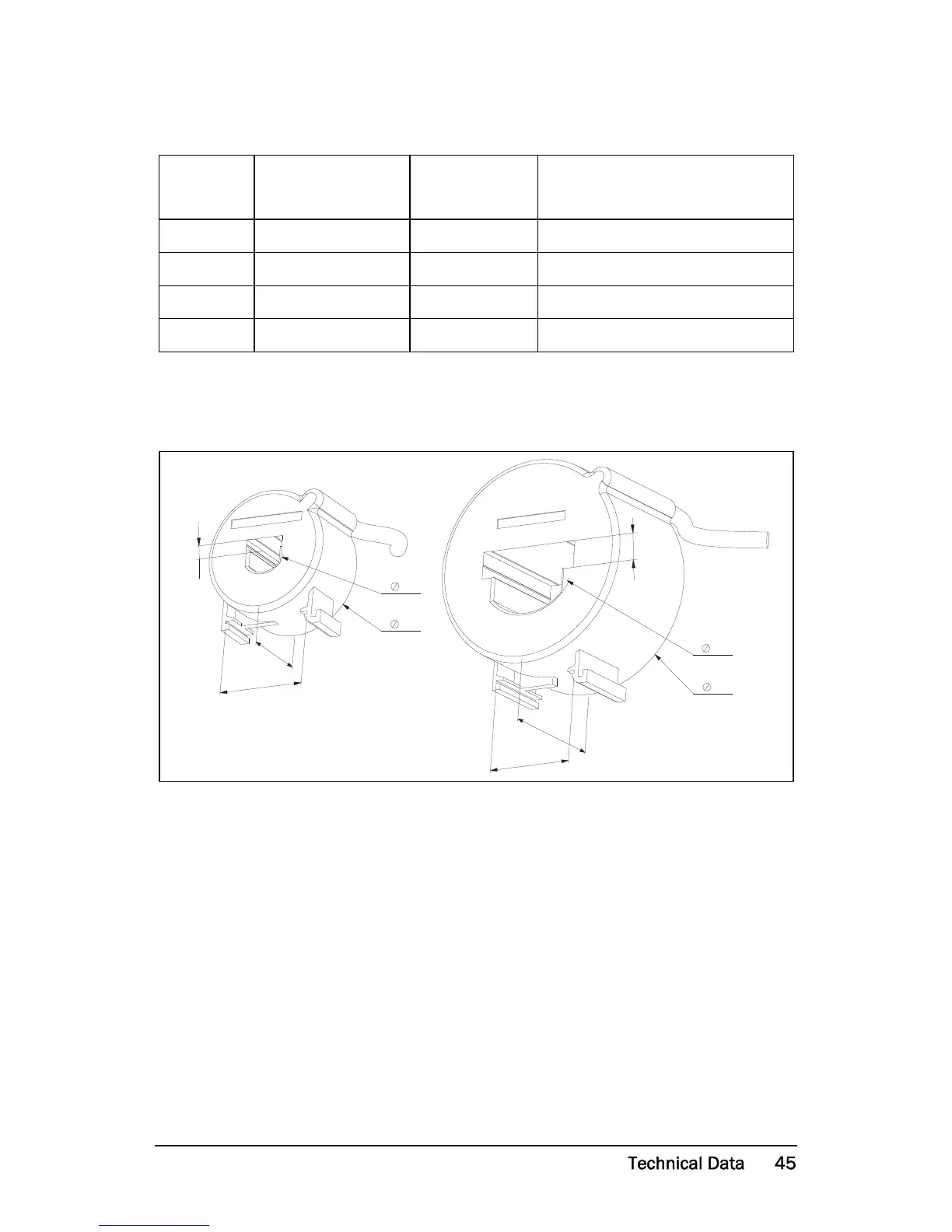

Fig. 17 Current Transformer CTM xxx.
Type
Dimensions
(WxØ)
Weight* Mounting
CTM 010 27 (35) x Ø48 mm 0.20 kg 35mm DIN rail 46277
CTM 025 27 (35) x Ø48 mm 0.20 kg 35mm DIN rail 46277
CTM 050 27 (35) x Ø48 mm 0.20 kg 35mm DIN rail 46277
CTM 100 45 (58) x Ø78 mm 0.50 kg 35mm DIN rail 46277
48
27
17
35
4.3
78
45
35
42
10.3
