4.3.2 LAN
There are the IP settings of the
LAN Interface for the device. These settings may be
referred to as Private settings. You may change the LAN IP address if needed. The LAN IP
address is provided to your internal network and cannot be seen on the Internet.

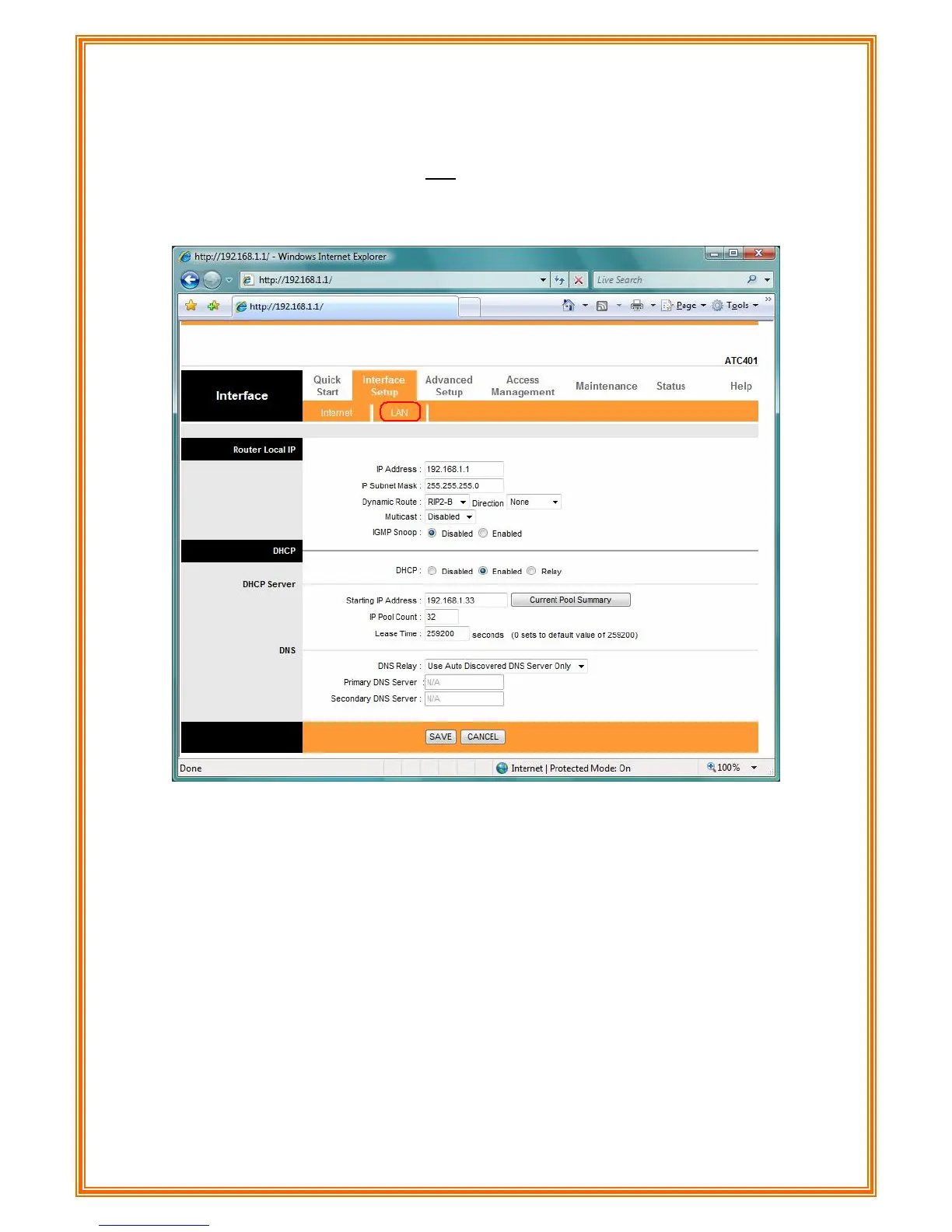

[Router Local IP]
IP Address: Enter the IP address of your ADSL router in dotted decimal notation, for
example, 192.168.1.1 (default setting).
IP Subnet Mask: Your ADSL router will automatically calculate the subnet mask based on
the IP address that you assign. Unless you are implementing sub netting, use the subnet
mask computed by the ADSL router.
Dynamic Route: Select the Dynamic Route from RIP1, RIP2-B, and RIP2-M. Please refer
to InternetÆ Dynamic Route. The only difference is the interface.
Direction: Select the RIP direction from None, Both, In Only and Out Only.
48
Multicast: IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to
establish membership in a multicast group. The ADSL router supports both IGMP-v1 and
