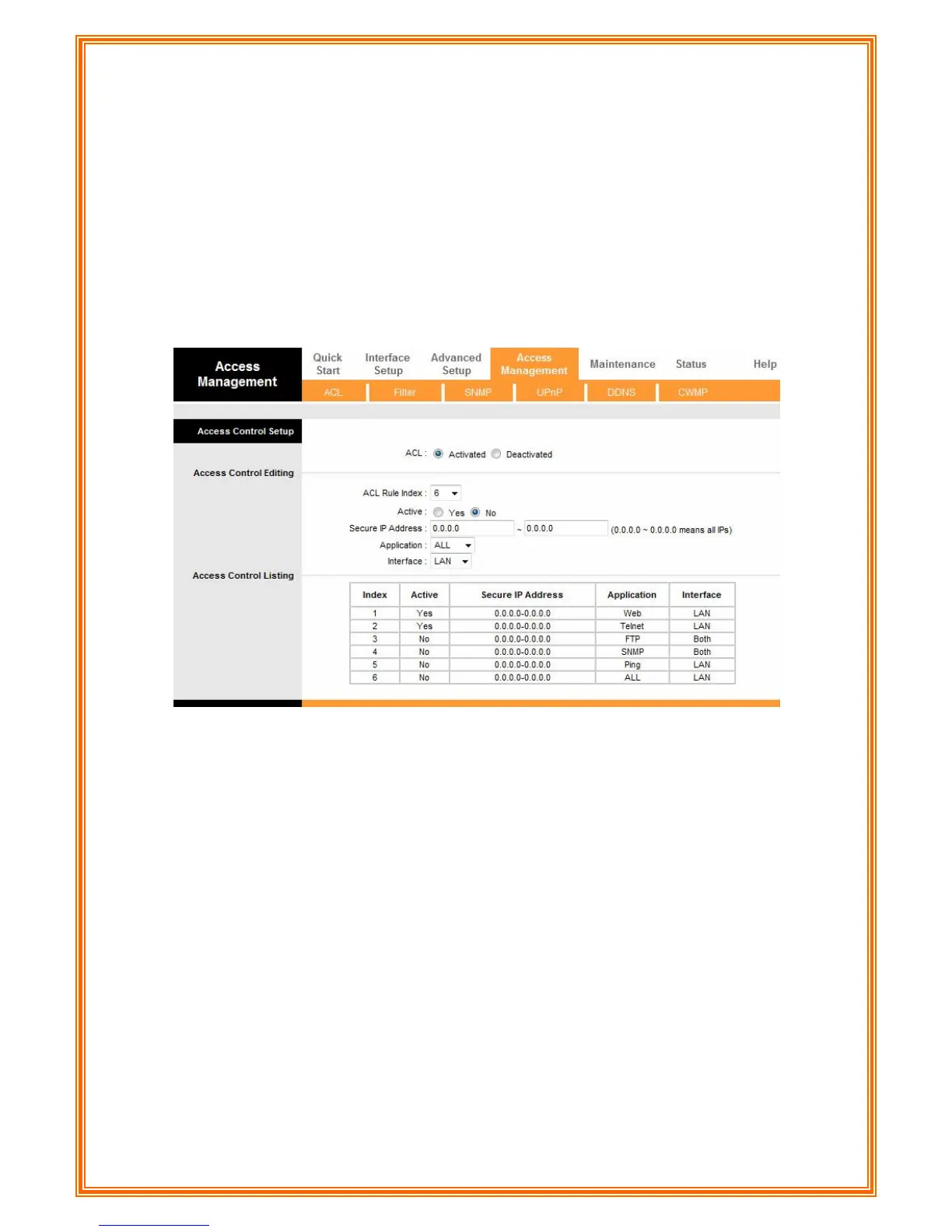

For Example:
How to set your ACL?
1. You must choose Activated to enable your ACL function.
2. Select the ACL Rule Index number (up to 16 number)
3. You can set the specific Secure IP address or set 0.0.0.0 for all IPs.
4. Choose the Application which you want to access for this ACL Rule index.
5. Select the Interface you want to access from.
6. After all settings are ready, click SAVE and continue next ACL Rule Index setting.
[Note]
1. You must set one ACL index to access your router via LAN interface. If you don’t, your
router cannot access other listed IP Address. (Refer to Index 1).
2. Remember! Once you active your ACL function, you only can access via router by
listed Secure IP Address.
4.5.2 IP Filter
The Router provides extensive firewall protection by restricting connection parameters
to limit the risk of intrusion and defending against a wide array of common hacker attackers.
Go to Access Management Æ Filter to set different IP filter rules of a given protocol (TCP,
UDP, or ICMP) and a specific direction (incoming, outgoing, or both) to filter the packets.
59
IP Filter is a more complex filtering tool, based more on IP and custom rules. Each of the
indices can hold six rules, and each interface can have four associated indices, allowing 24
