Encore ENDSL-A2+R2 User Manual

Four-Port ENDSL-A2+4R2 Router Front Panel
○ ○ ○ ○ ○ ○ ○
PWR USB LAN4 LAN3 LAN2 LAN1 ADSL
Descriptions of LED status
PWR When an active power adapter is connected with router, this LED will light up.
USB When an active USB cable is connected with router, this LED will light up.
LAN4 When port 4 connection with PC or Switch / Hub is established, this LED will light up.
LAN3 When port 3 connection with PC or Switch / Hub is established, this LED will light up.
LAN2 When port 2 connection with PC or Switch / Hub is established, this LED will light up.
LAN1 When port 1 connection with PC or Switch / Hub is established, this LED will light up.
ADSL
When connection with Internet (ADSL Connected) is established, this LED will light up.
When this LED is flashing: NO ADSL physical connection

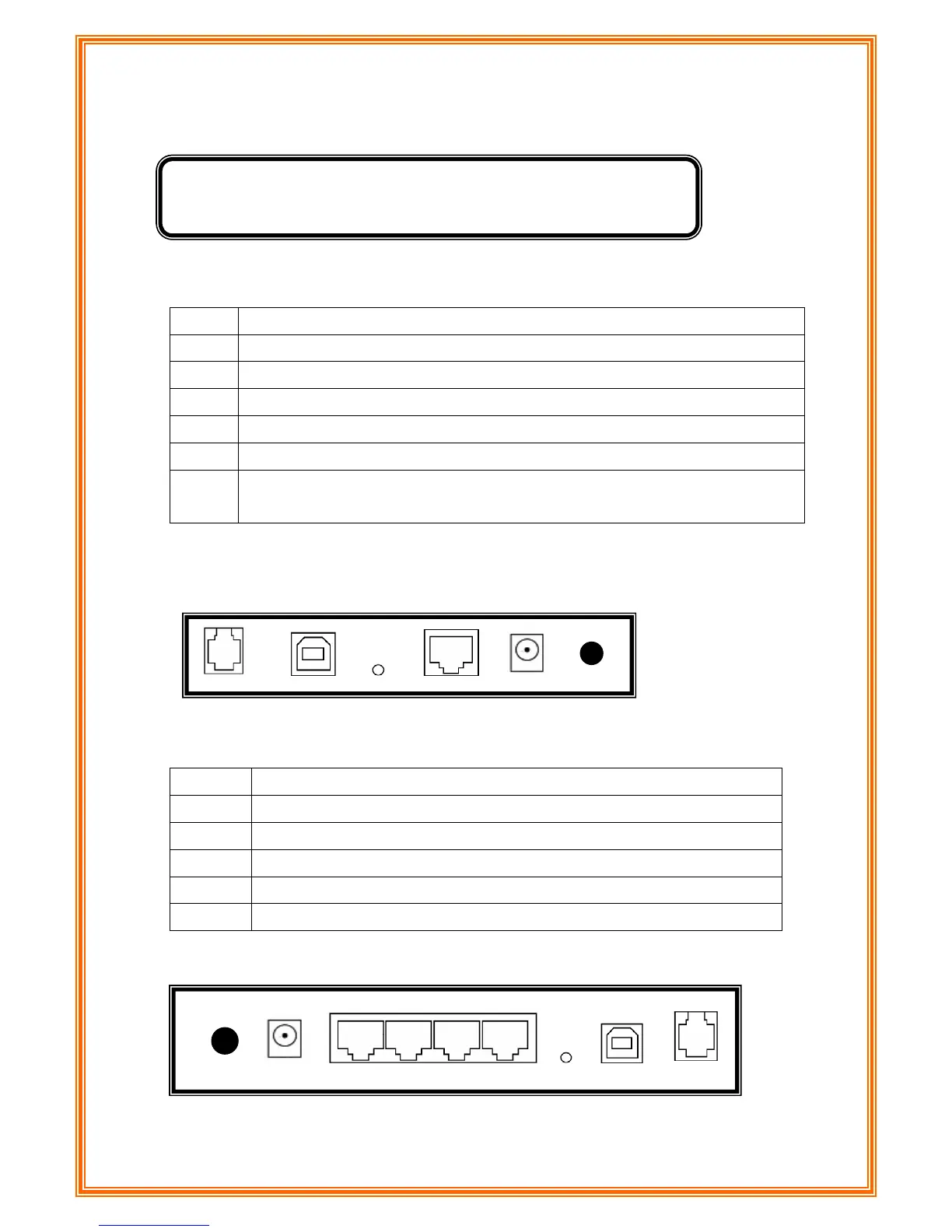

2.4 Back Panel
One-Port ENDSL-A2+R2
Descriptions of All Connectors
LINE Connect with phone cable
USB Connect with USB cable to PC
DEFAULT Reset button.
LAN Connect with Ethernet Cable to Switch Hub or PC
PWR Connect with power adapter
ON/OFF Power switch button
Four-Port ENDSL-A2+4R2 Router
8
LINE USB DEFAULT LAN PWR ON/OFF
ON/OFF PWR 1X 2X 3X 4X DEFAULT USB
LINE

Encore ENDSL-A2+R2 Specifications

General

Brand	Encore
Model	ENDSL-A2+R2
Category	Modem
Language	English
