4.5 Access Management
4.5.1 ACL

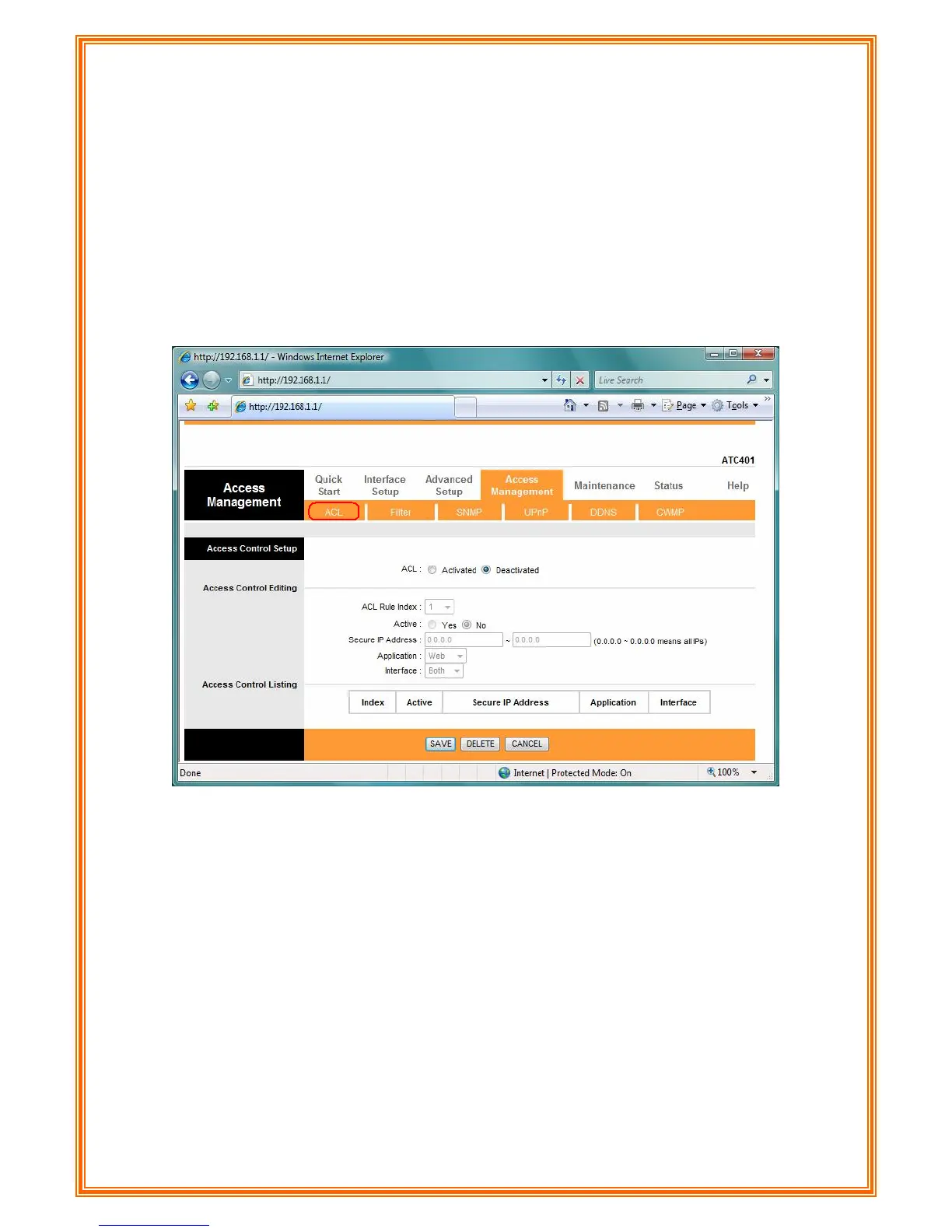

Go to Access Management Æ ACL to enable remote management. You may use telnet or
Web to remotely manage the ENDSL-A2+4R2. User just needs to enable Telnet or Web and
give it an IP address that wants to access the ENDSL-A2+4R2. The default IP 0.0.0.0 allows
any client to use this service to remotely manage the ENDSL-A2+4R2.
ACL: There has Activated & Deactivated option. The default setting is Deactivated which
means all IP can access via router. If you choose Activated, you only can access via router by
listed IP addresses.
ACL Rule Index: Index number from 1 and up to 16.
Active: Once you choose Yes then you can access the IP via router.
Application: Each of these labels denotes a service that you may use to remotely manage the
Router. Choices are Web, FTP, Telnet, SNMP, Ping, ALL.
Interface: Select the access interface. Choices are WAN, LAN and Both.
58
