4.3 Interface Setup
Click an
Interface Setup link to set ATM VC values, ISP Encapsulation, configure multi-
connection settings, and LAN configuration.
4.3.1 Internet

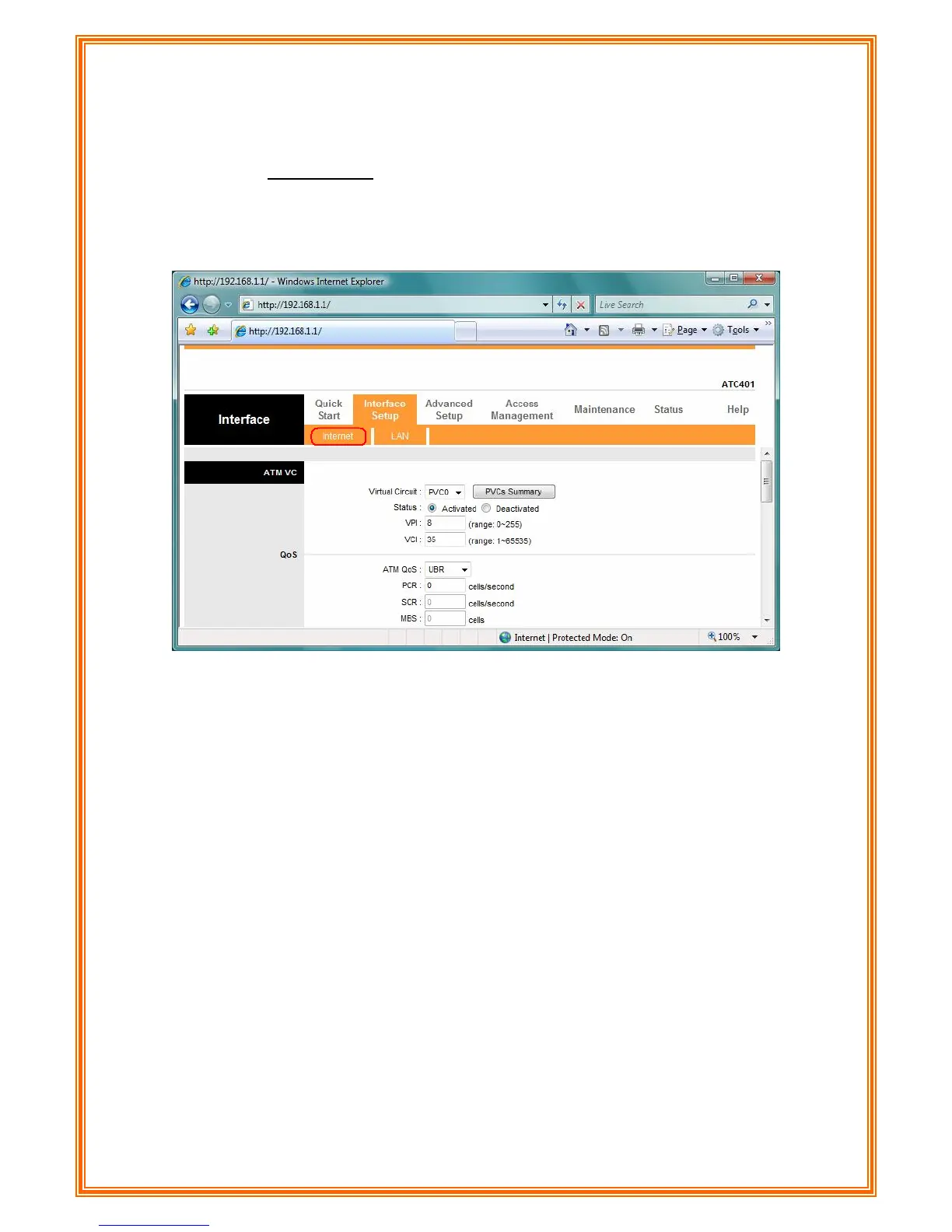

[ATM VC]
ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI, settings to you. In
this Device, you can totally setup 8 PVCs on different encapsulations if you apply 8 different
virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs
management, you can use ATM QOS to setup each PVC traffic line’s priority.
Virtual Circuit: Select the VC number you want to setup.
VPI: Virtual Path Identifier. The valid range for the VPI is 0 to 255.
VCI: Virtual Channel Identifier. The valid range for the VCI is 1 to 65635 (0 to 31 is reserved for
local management of ATM traffic).
ATM QoS: Select the Quality of Service types for this Virtual Circuit. The ATM QoS types
include CBR(Constant Bit Rate), VBR(Variable Bit Rate) and UBR (Unspecified Bit Rate).
These QoS types are all controlled by the parameters specified below, including PCR, SCR,
and MBS.
PCR: Peak Cell Rate.
SCR: Sustained Cell Rate.
44
MBS: Maximum Burst Size.
