Start & End port number: Enter the specific Start and End Port number you want to forward.
If it is one port only, you can enter the End port number the same as Start port number. For
example, set the FTP Virtual server, you can set the start and end port number to 21.
Local IP Address: Enter the IP Address for the Virtual Server in LAN side.

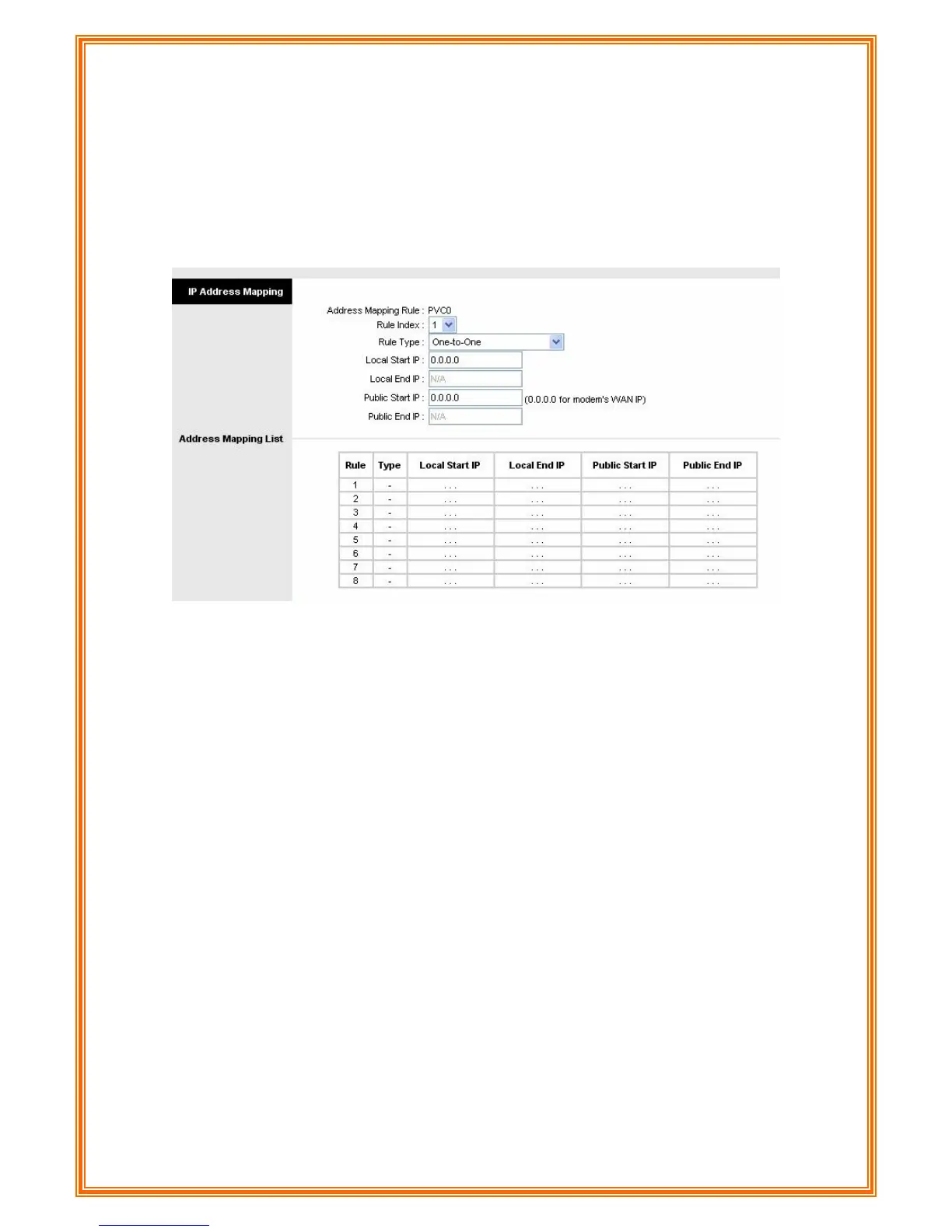

[IP Address Mapping]
The IP Address Mapping is for those VCs that with multiple IPs. The IP Address Mapping rule
is per-VC based. (only for Multiple IPs’ VCs).
Rule Index: The Virtual server rule index for this VC. You can specify up to 10 rules. All the
VCs with single IP will use the same Virtual Server rules.
Rule Type: There are 4 types of One-to-One, Many-to-One, Many-to-Many Overload, and
Many-to Many No-Overload.
Local Start & End IP: Enter the local IP address you plan to map to. Local Start IP is the
starting local IP address & Local End IP is the ending local IP address. If the rule is for all local
IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.
Public Start & End IP: Enter the Public IP Address you want to do NAT. Public Start IP is the
starting Public IP Address and Public End IP is the ending Public IP Address. If you have a
Dynamic IP, enter 0.0.0.0 as the Public Start IP.
54
