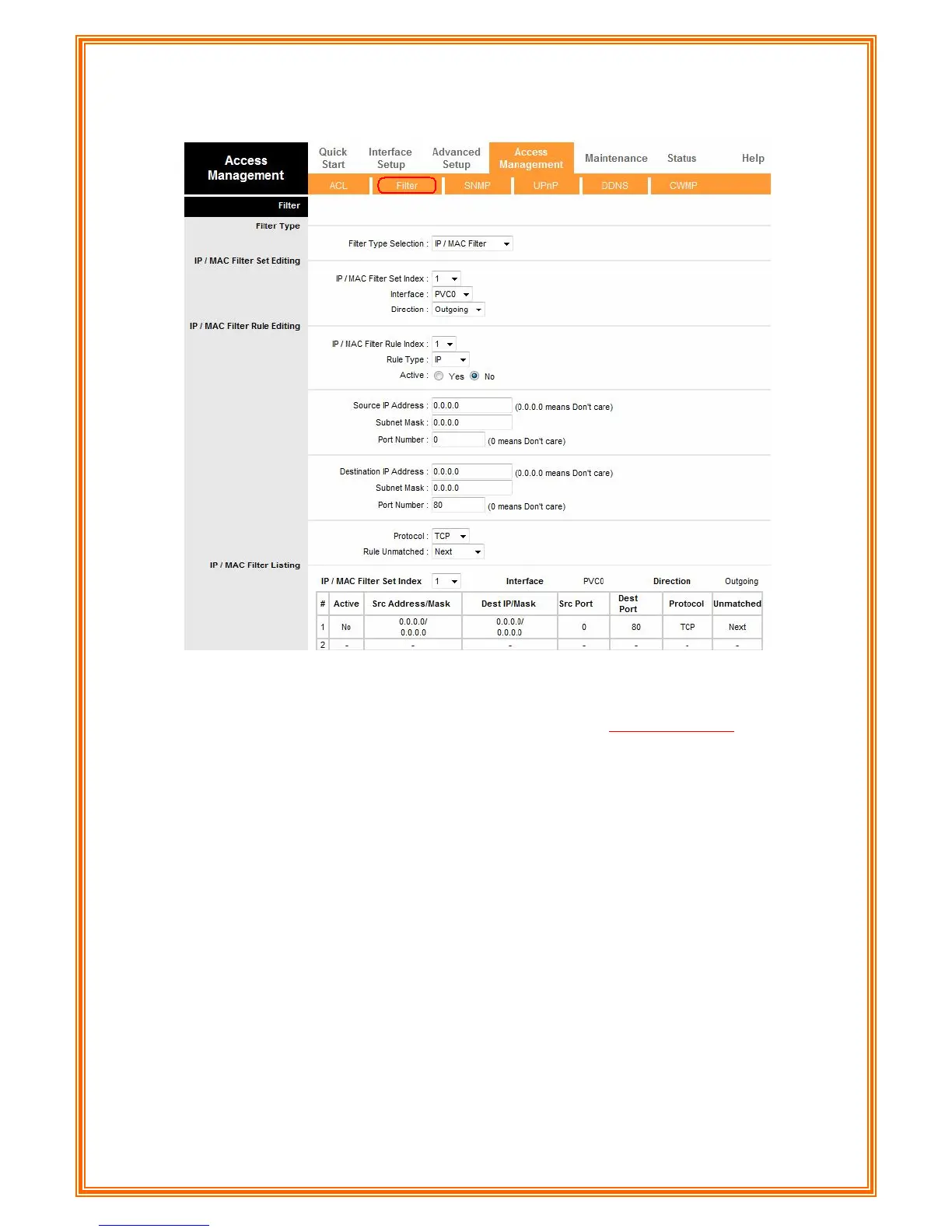

Please follow below steps to set your IP Filter:
1. IP Filter Set Editing: Choose your IP Filter Set Index, Interface and Direction options.
Remember, Interface and Direction functions are affected with
IP Filter Set Index. EX: if
your 1
st
index set of IP filter set PVC0 as Interface and Outgoing as Direction, so the list of
1
st
IP Filter will be PVC0 and Outgoing as their settings.
2. IP Filter Rule Editing: Select the IP Filter Rule Index (up to 6 numbers for each set index)
and choose Active option. As below example, Source IP Address is 192.168.1.4,
Subnet Mask is 255.255.255.255, Destination IP Address & Subnet Mask is 0.0.0.0,
Port Number is 80. And, Protocol sets TCP. From this setting, it filters 192.168.1.14, so it
cannot access the web. Notice, each IP Filter Set Index can has up to 6 filters IP. At “Rule
Unmatched” option, you must choose NEXT until the last filter IP choose Forward.
3. After every setting is done, click SAVE to continue next IP Filter Editing.
