Encore ENHWI-G3 User Manual

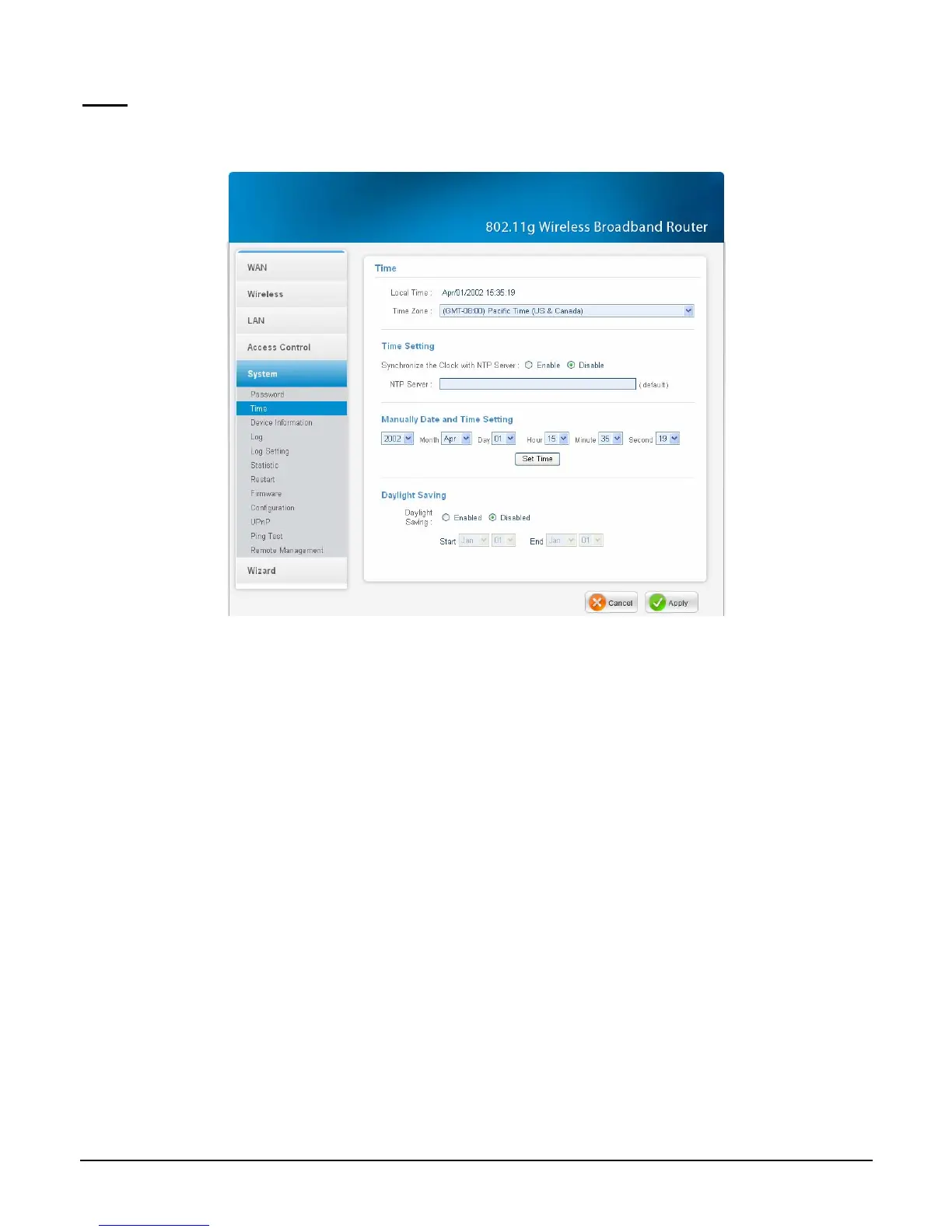

Time
This function enables users to set the time and date for the WLAN Router's real-time clock,
select properly time zone, and enable or disable daylight saving.
Figure 60
Local Time: Displays the local time and date.
Time Zone: Select the time zone from the drop-down list.
Synchronize the clock with NTP Server: Enable or disable the WLAN Router automatically
adjust the system time from NTP Server.
NTP server: The Simple Network Time Protocol (SNTP) server allows the WLAN Router to
synchronize the system clock to the global Internet through the SNTP Server. Specify the NTP
domain name or IP address in the text box.
Manually Date and Time Setting: Manually setting the WLAN Router system time, press the
Set Time button to update the system time.
Daylight Saving: Enables users to enable or disable daylight saving time. When enabled, select
the start and end date for daylight saving time.
45

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
