Encore ENHWI-G3 User Manual

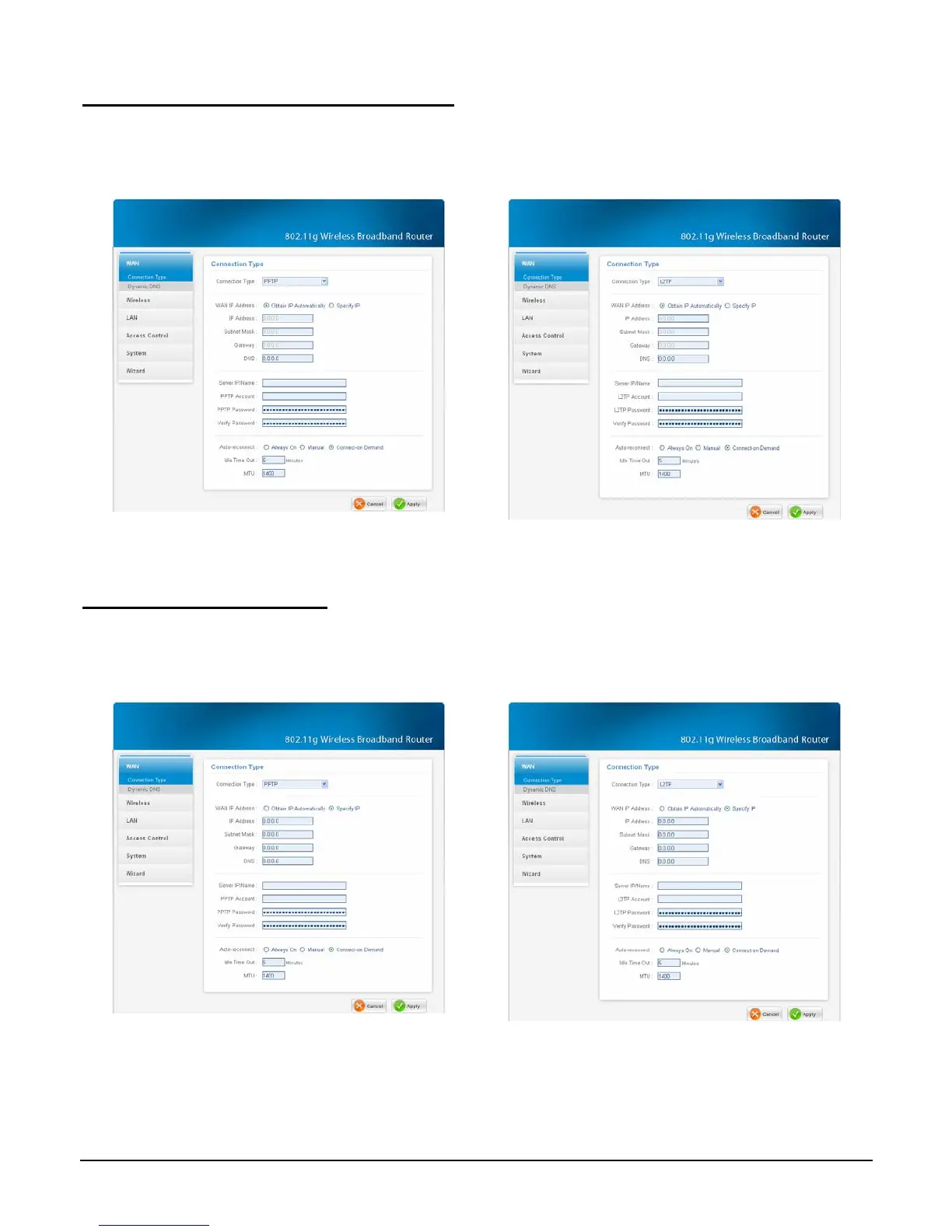

PPTP/L2TP with Obtain IP Automatically
If connected to the Internet using a PPTP/L2TP (Dial-up xDSL) connection, enter the your
Server IP, PPTP/L2TP Account and PPTP/L2TP Password, if your ISP has provided you with a
DNS IP address, enter it in the DNS field, otherwise, leave it zero.
Figure 36. PPTP
Figure 37. L2TP
PPTP/L2TP with Specify IP
If connected to the Internet using a PPTP/L2TP (Dial-up xDSL) connection, enter the your IP
Address, Subnet Mask, Gateway IP address, DNS IP address, Server IP address, PPTP Account
and PPTP Password.
Figure 38. PPTP
Figure 39. L2TP
26

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
