Encore ENHWI-G3 User Manual

HARDWARE INSTALLATION
Front Panel

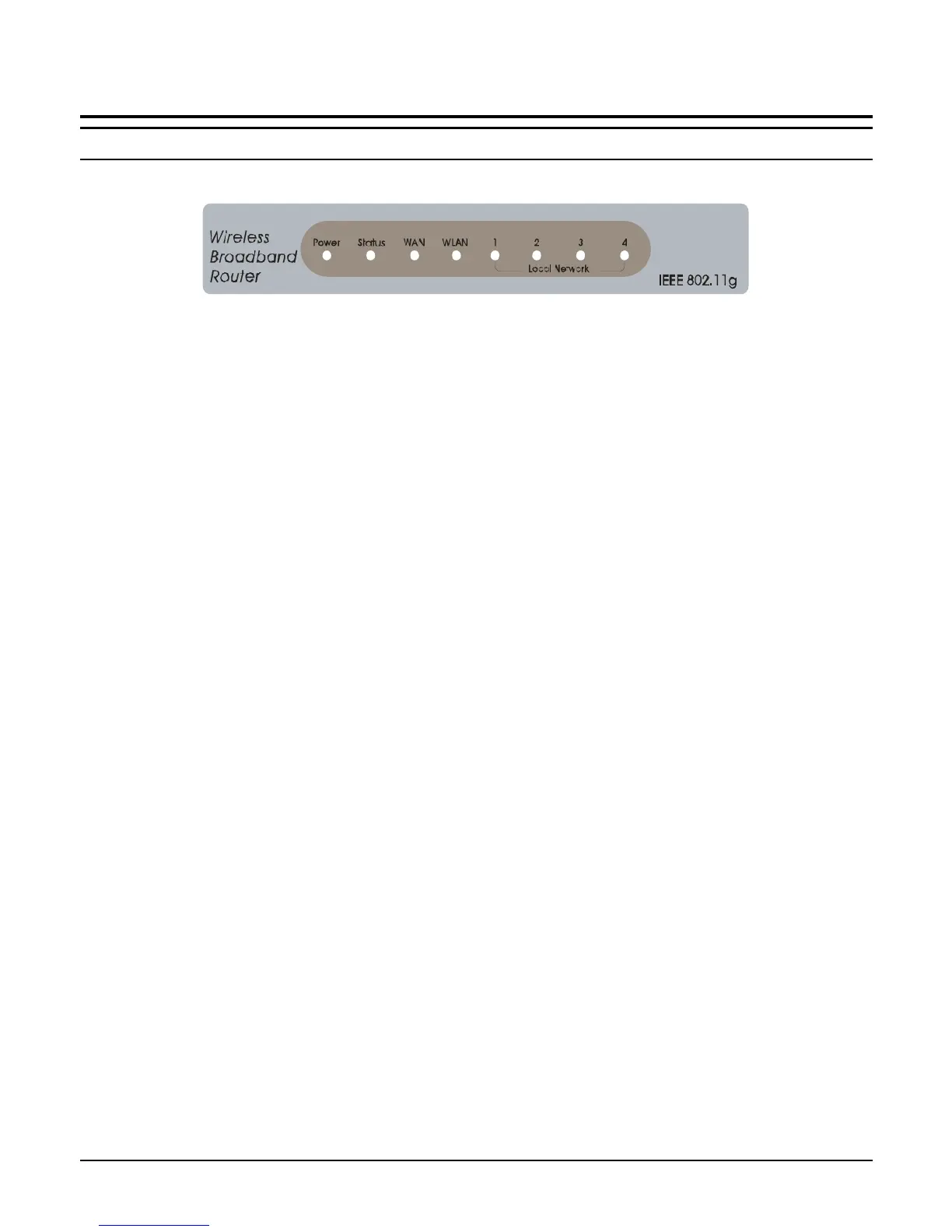

The figure below shows the front panel of the Wireless Broadband Router.
Figure 1. Front panel
POWER
This indicator lights green when the hub is receives power, otherwise it is off.
Status
This indicator blinks green means the Internet Broadband Router is working successful.
Otherwise, this indicator always on or off means the function of the Internet Broadband Router
is fail.
WAN (Link/ACT)
The indicators light green when the WAN port was connected to an xDSL/Cable modem
successfully.
The indicators blink green while the WAN port was transmitting or receiving data on the
xDSL/Cable modem.
WLAN (ACT)
This indicator lights green when there are wireless devices connected and transmitting data to
the Wireless Router.
LAN (Link/ACT)
These indicators light green when the LAN ports were connected successfully.
These indicators blink green while the LAN ports were transmitting data.
5

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
