Windows XP
Point the cursor and click the right button on the “My Network Place” icon.
Select “properties” to enter the TCP/IP setting window.
1. Set “IP address” to “Obtain an IP address automatically.”
2. Set “DNS” to “Obtain DNS server address automatically.”

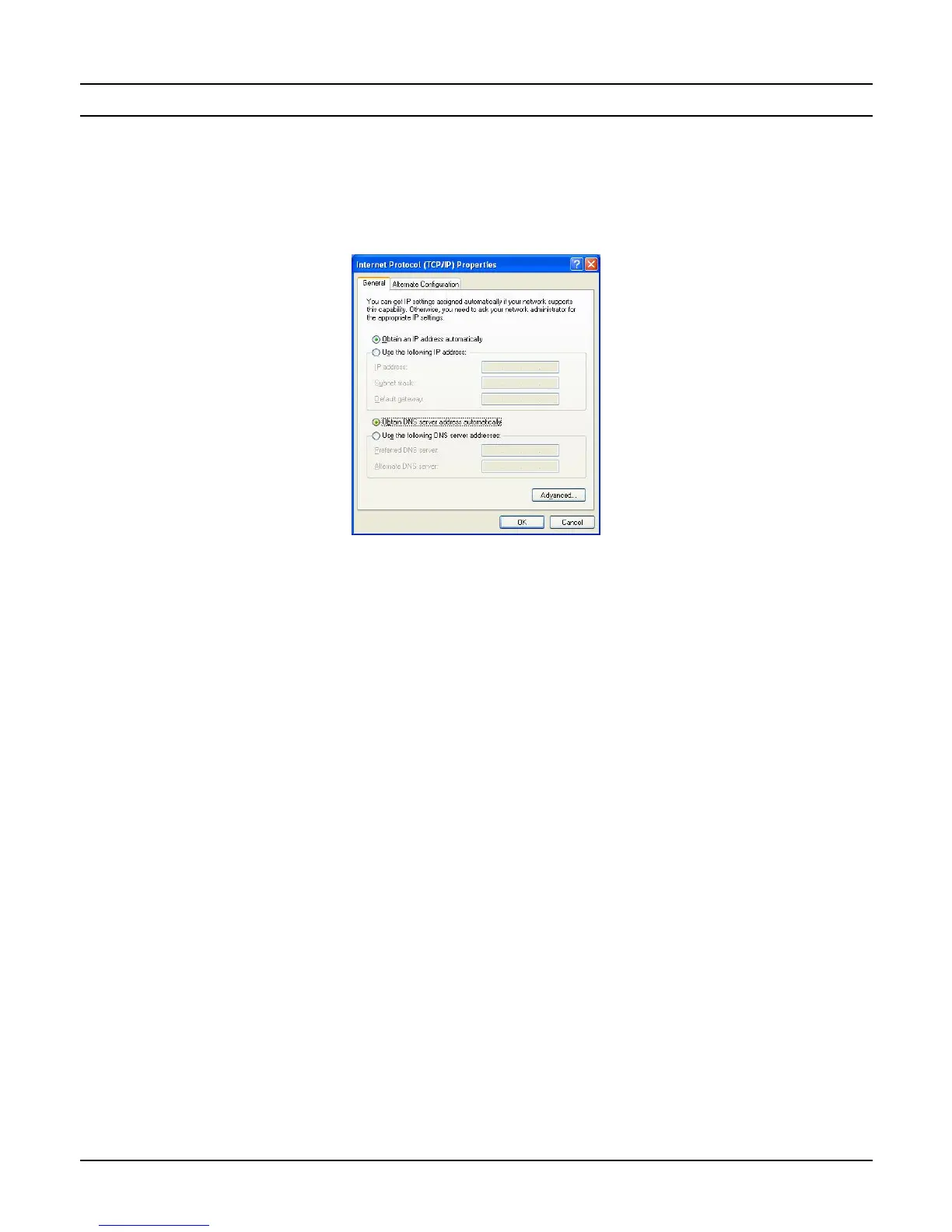

Figure 8. Windows XP IP and DNS setup
10

Other manuals for Encore ENHWI-G3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Encore ENHWI-G3 and is the answer not in the manual?

Encore ENHWI-G3 Specifications

Transmission and Reception IconTransmission and Reception
transmission rate (802.11b)1, 2, 5.5, 11 Mbps
transmission rate (802.11g)6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)-70 @ 10% PER
receiver sensitivity (11Mbps)-85 @ 8% PER
wireless LAN frequency range2412 ~ 2484 MHz
Transmit Power and Antennas IconTransmit Power and Antennas
transmit power (802.11b)15±2 dBm
transmit power (802.11g)13±2 dBm
antenna typeDual diversity antennas
external antenna gain2 dB
Interface and Ports IconInterface and Ports
LAN ports4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port1 x 10/100 Mbps Auto-MDIX Ethernet port
interfaceLAN, WAN
Power and Temperature IconPower and Temperature
power adapter voltage7.5 V
power adapter current1 A
operation temperature0 ~ 40 °C
storage temperature-10 ~ 70 °C
Dimensions and Environmental IconDimensions and Environmental
dimensions (W x H x D)147 x 115 x 35 mm
range coverage indoorUp to 30 meters
range coverage outdoorUp to 100 meters
humidity10% ~ 95% RH, no condensation
