Encore ENHWI-G3 User Manual

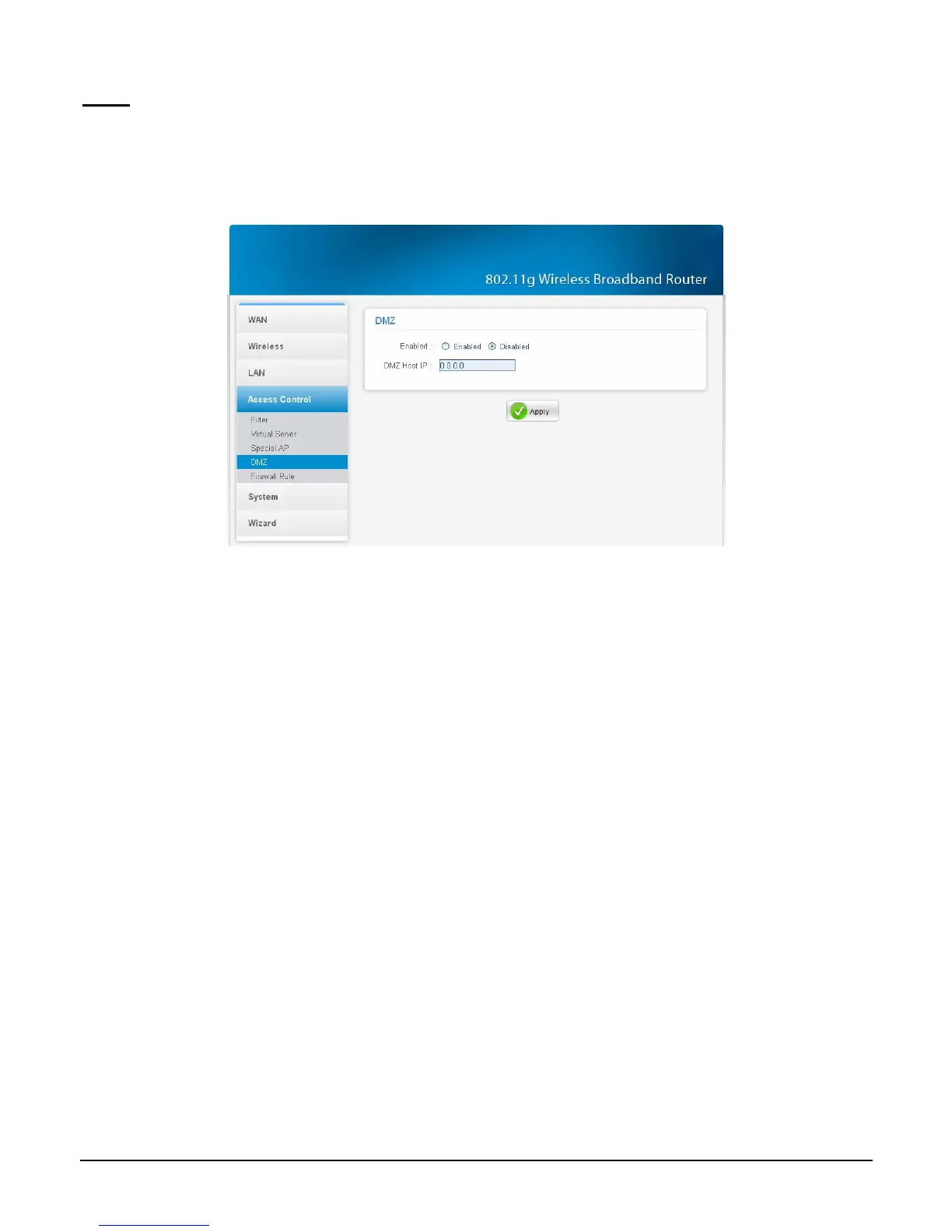

DMZ
The DMZ function enables users to create a DMZ for those computers that cannot access
Internet applications properly through the WLAN Router and associated security settings.
Note: Any clients added to the DMZ exposes the clients to security risks such as viruses and
unauthorized access.
Enable: Click to enable or disable the DMZ.
DMZ Host IP: Type a host IP address for the DMZ. The computer with this IP address acts as
a DMZ host with unlimited Internet access.
Apply: Click to save the settings.
42

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
