WAN Setting
This function enables users to set up the WLAN Router WAN connection, specify the IP
address for the WAN, add DNS numbers, and enter the MAC address.
Connection Type: Select the connection type, either DHCP client, Fixed IP or PPPoE, PPTP,
L2TP or BigPond from the drop-down list.
DHCP Client or Fixed IP
If user has enabled DHCP server, choose "Obtain IP automatically (DHCP client)" to have the
router assign IP addresses automatically.

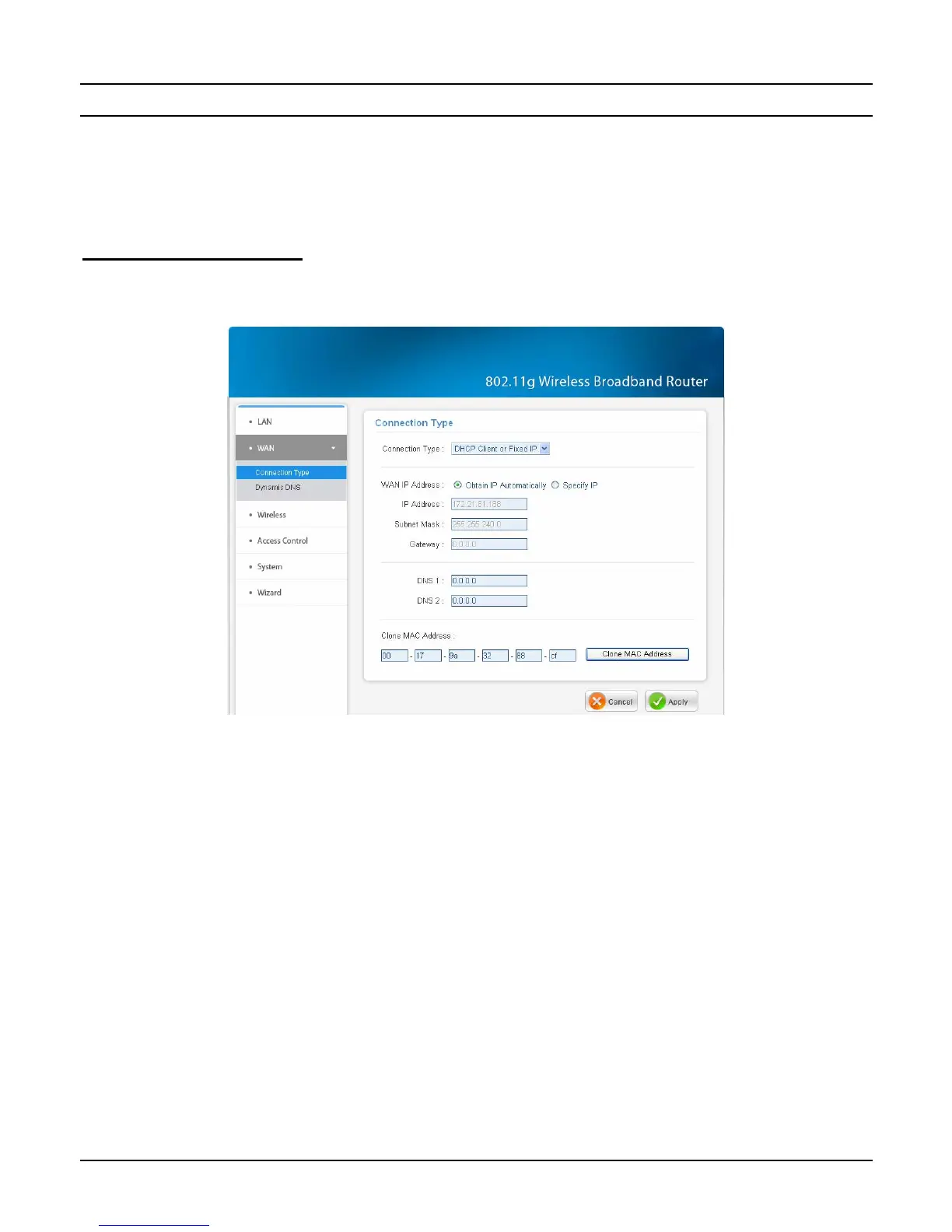

Figure 33.
WAN IP Address: Select whether user wants to specify an IP address manually, or want
DHCP to obtain an IP address automatically. When Specify IP is selected, type the IP address,
subnet mask, and default gateway in the text boxes. User’s ISP will provide with this
information.
IP Address: For the Specify mode, enter the specific IP address that provided by your ISP.
Subnet Mask: For the Specify mode, enter the specific subnet mask that provided by your ISP.
Gateway: For the Specify mode, enter the specific gateway IP address that provided by your
ISP.
DNS 1/2: Manually specific DNS server IP address. For the Obtain IP Automatically mode,
leave 0.0.0.0 hear, the DHCP server will provides DNS server automatically.
Clone MAC Address: If your ISP requires you to enter a specific MAC address, please enter it
in. The Clone MAC Address button is used to copy the MAC address of your Ethernet adapter
to the Router.
