Special AP
The special AP function enables users to specify special applications, such as games which
require multiple connections that are blocked by NAT. The special applications profiles are
listed in the table at the bottom of the page.
Note: When selecting items in the table at the bottom, click anywhere in the item. The line is
selected, and the fields automatically load the item's parameters, which user can edit.

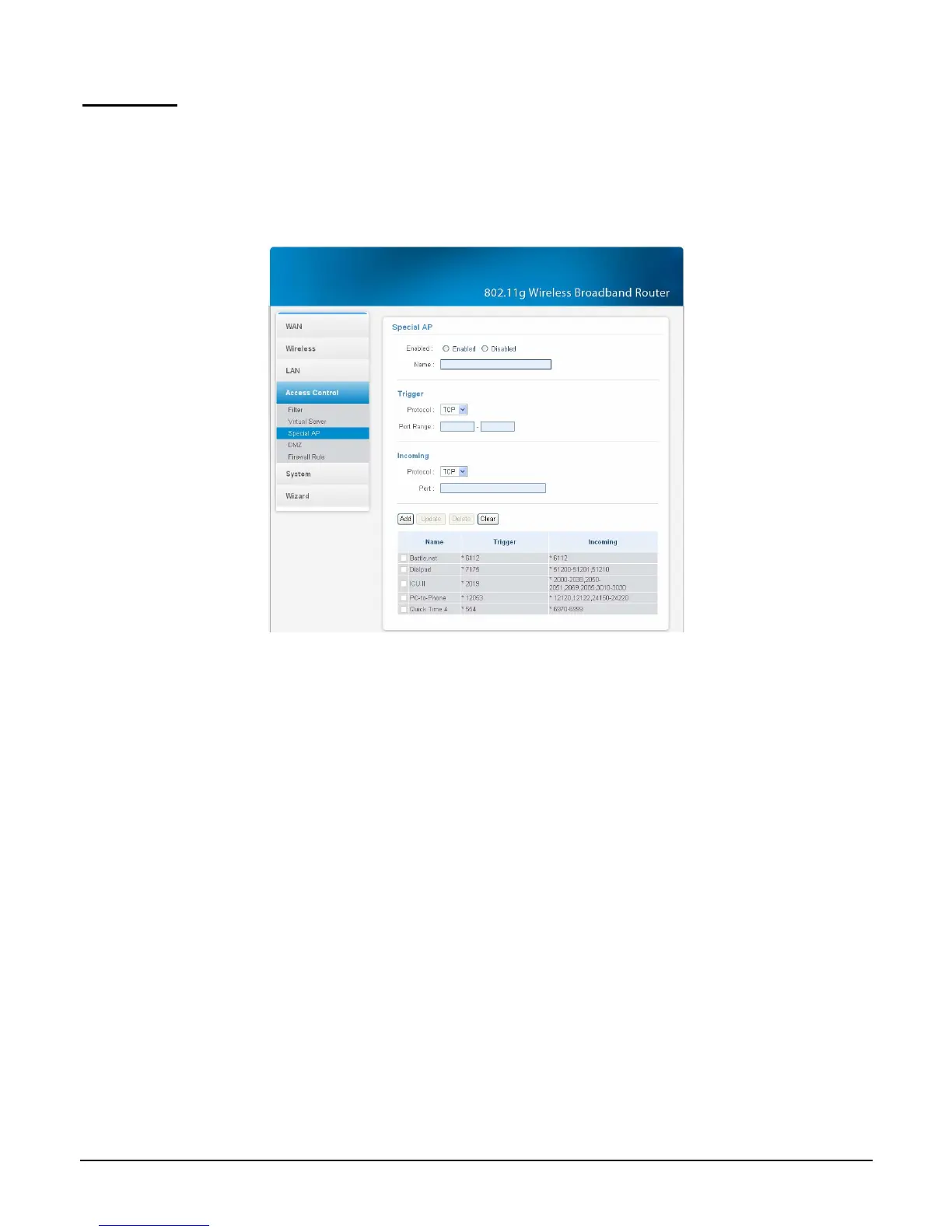

Figure 57.
Enable: Click to enable or disable the application profile. When enabled, users will be able to
connect to the application via the WLAN Router’s WAN connection. Click “Disabled” on a
profile to prevent users from accessing the application on the WAN connection.
Name: Type a descriptive name for the application.
Trigger: Defines the outgoing communication that determines whether the user has legitimate
access to the application.
z Protocol: Select the protocol TCP or UDP that can be used to access the application,
the “*” is meaning to both of TCP and UDP protocols.
z Port Range: Type the port range that can be used to access the application in the text
boxes.
Incoming: Defines which incoming communications users are permitted to connect with.
z Protocol: Select the protocol TCP or UDP that can be used by the incoming
communication, the “*” is meaning to both of TCP and UDP protocols.
z Port: Type the port number that can be used for the incoming communication.
Add: Click to add the special application profile to the table at the bottom of the screen.
Update: Click to update information for the special application if user have selected a list item
and have made changes.
Delete: Select a list item and click Delete to remove the item from the list.
Clear: Click to erase all fields and enter new information.
41
