Encore ENHWI-G3 User Manual

Connect the Router using Wireless LAN

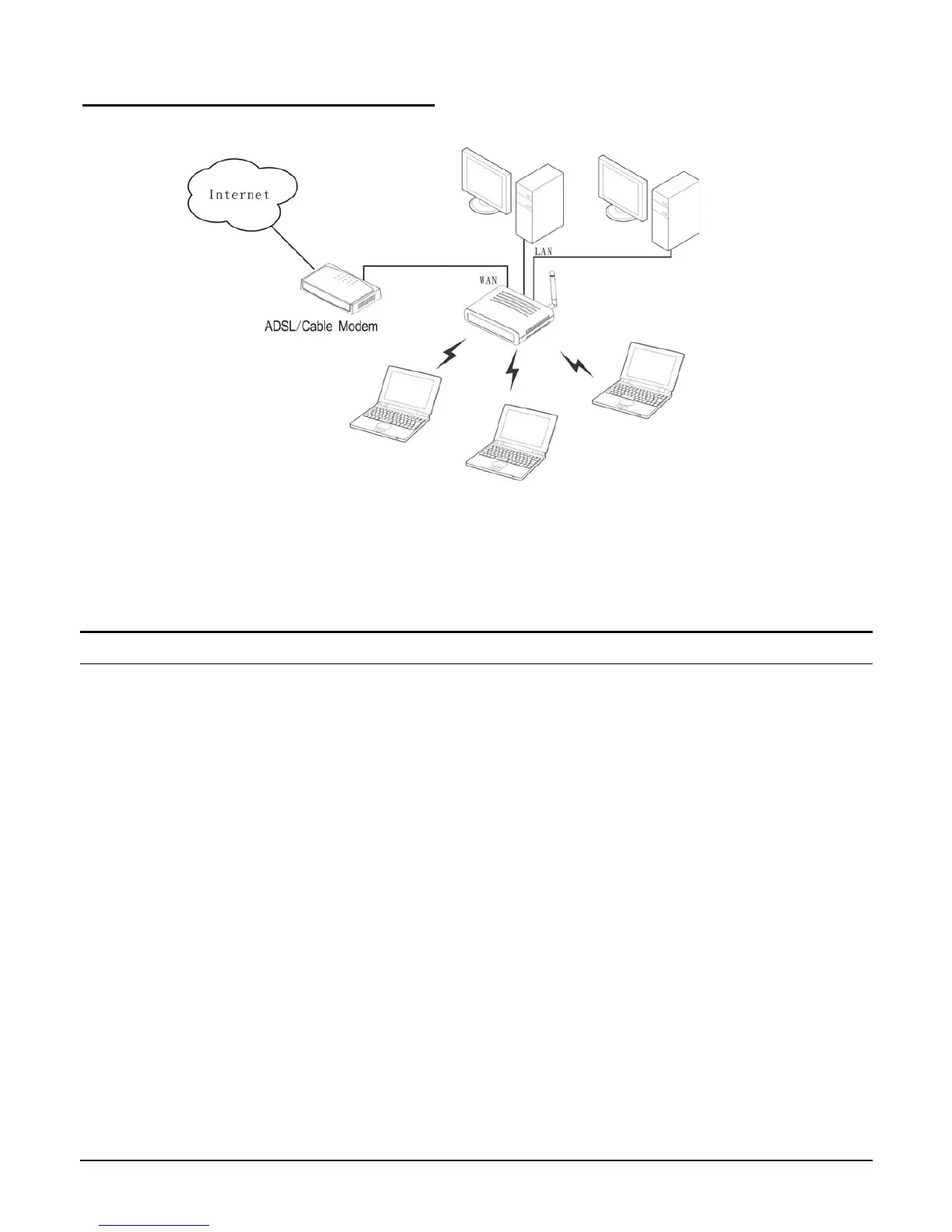

Figure 3. Connecting the WLAN Router
1. Plug in one end of the RJ45 network cable to the xDSL/Cable Modem.
2. Plug in the other end of the RJ45 network cable to the Wireless Internet Broadband Router
WAN port.
Check the installation
The control LEDs of the Wireless Internet Broadband Router are clearly visible and the status
of the network link can be seen instantly:
1. With the power source on, once the device is connected to the broadband modem, the Power,
CPU, LAN, WLAN and WAN port link LEDs of the Internet Broadband Router will light
up indicating a normal status.
2. While the WAN is link up to the ADSL/Cable modem, the WAN port’s Link/ACT LED will
light up.
3. While the LAN is link up to the computer system, the LAN port’s Link/ACT LED will light
up.
7

Encore ENHWI-G3 Specifications

Transmission and Reception

transmission rate (802.11b)	1, 2, 5.5, 11 Mbps
transmission rate (802.11g)	6, 12, 24, 36, 48, 54 Mbps
receiver sensitivity (54Mbps)	-70 @ 10% PER
receiver sensitivity (11Mbps)	-85 @ 8% PER
wireless LAN frequency range	2412 ~ 2484 MHz

Transmit Power and Antennas

transmit power (802.11b)	15±2 dBm
transmit power (802.11g)	13±2 dBm
antenna type	Dual diversity antennas
external antenna gain	2 dB

Interface and Ports

LAN ports	4 x 10/100 Mbps Auto-MDIX Ethernet ports
WAN port	1 x 10/100 Mbps Auto-MDIX Ethernet port
interface	LAN, WAN

Power and Temperature

power adapter voltage	7.5 V
power adapter current	1 A
operation temperature	0 ~ 40 °C
storage temperature	-10 ~ 70 °C

Dimensions and Environmental

dimensions (W x H x D)	147 x 115 x 35 mm
range coverage indoor	Up to 30 meters
range coverage outdoor	Up to 100 meters
humidity	10% ~ 95% RH, no condensation
