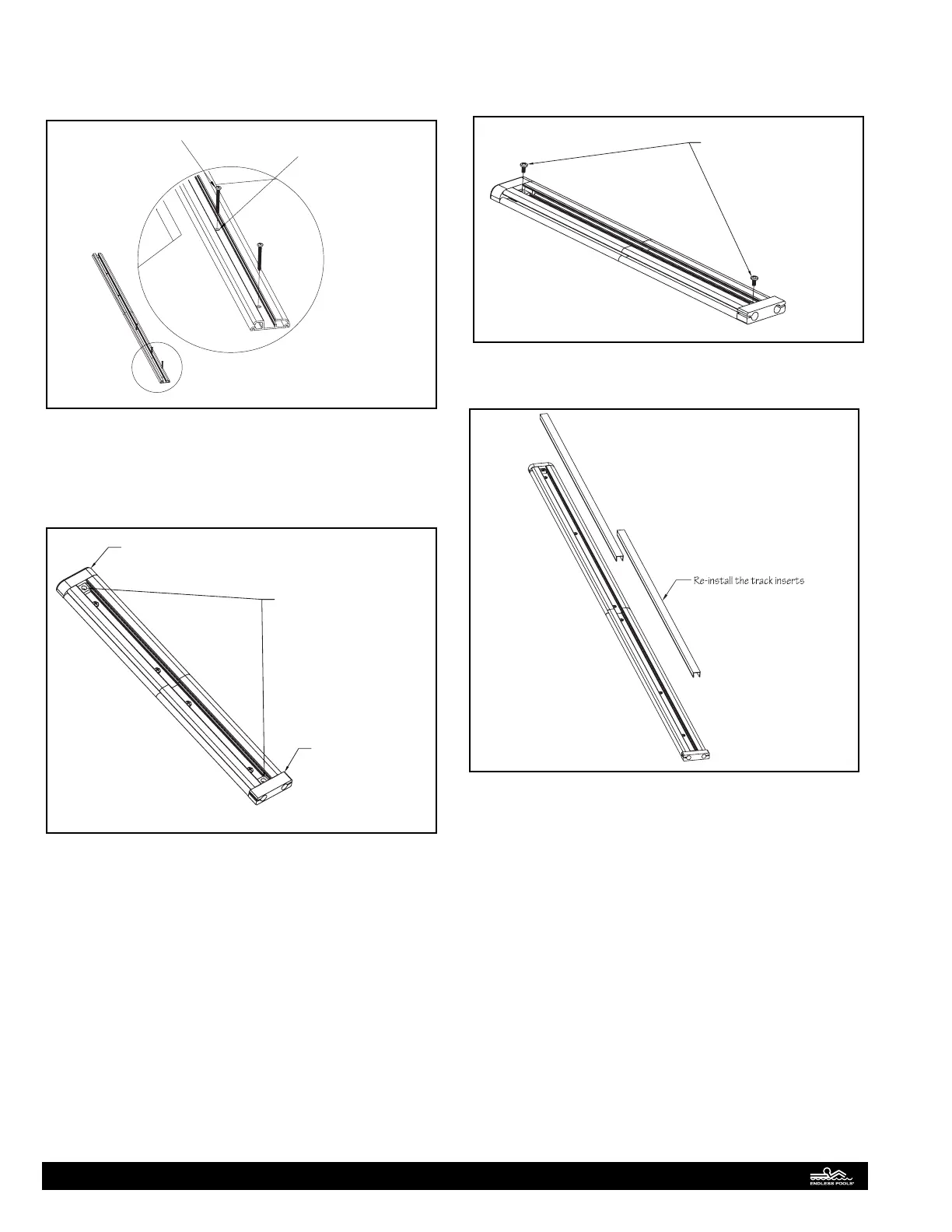

ere are pre-drilled holes down the length of each track section.
Use the 11/64" (4mm) drill bit to drill out the holes (to make it
easier to install track screws). Attach the track sections with the
1-1/2" (38mm) oval head screws. Fig. 79.
Install the #10 x 1-1/2" (38mm)
track screws.
Pre-drill the holes in the tracks
using an 11/64" (4mm) drill bit.
Fig. 79
Insert the end cap into the track at the rear of the pool. Insert
the end guide into the track at the front of the pool. Drill a 1/8"
(3mm) hole, through the end cap and end guide into the track.
Fig. 80.
Roller Mechanism End
End Cap
End Guide
Drill an 1/8" (3mm) hole into the track
through the End Guide and End Cap
Fig. 80
Secure both the end cap and end guide into the track using the
8-32 x 5/16" (8mm) self-tapping screws. Repeat for the track on
the other side wall. Fig. 81.
Secure the End Guide and End Cap
to the track with the provided
8-32 x 5/16" (8mm) self-tapping screw
Fig. 81
Reinstall the snap in inserts in the tracks. Fig. 82.
Fig. 82
