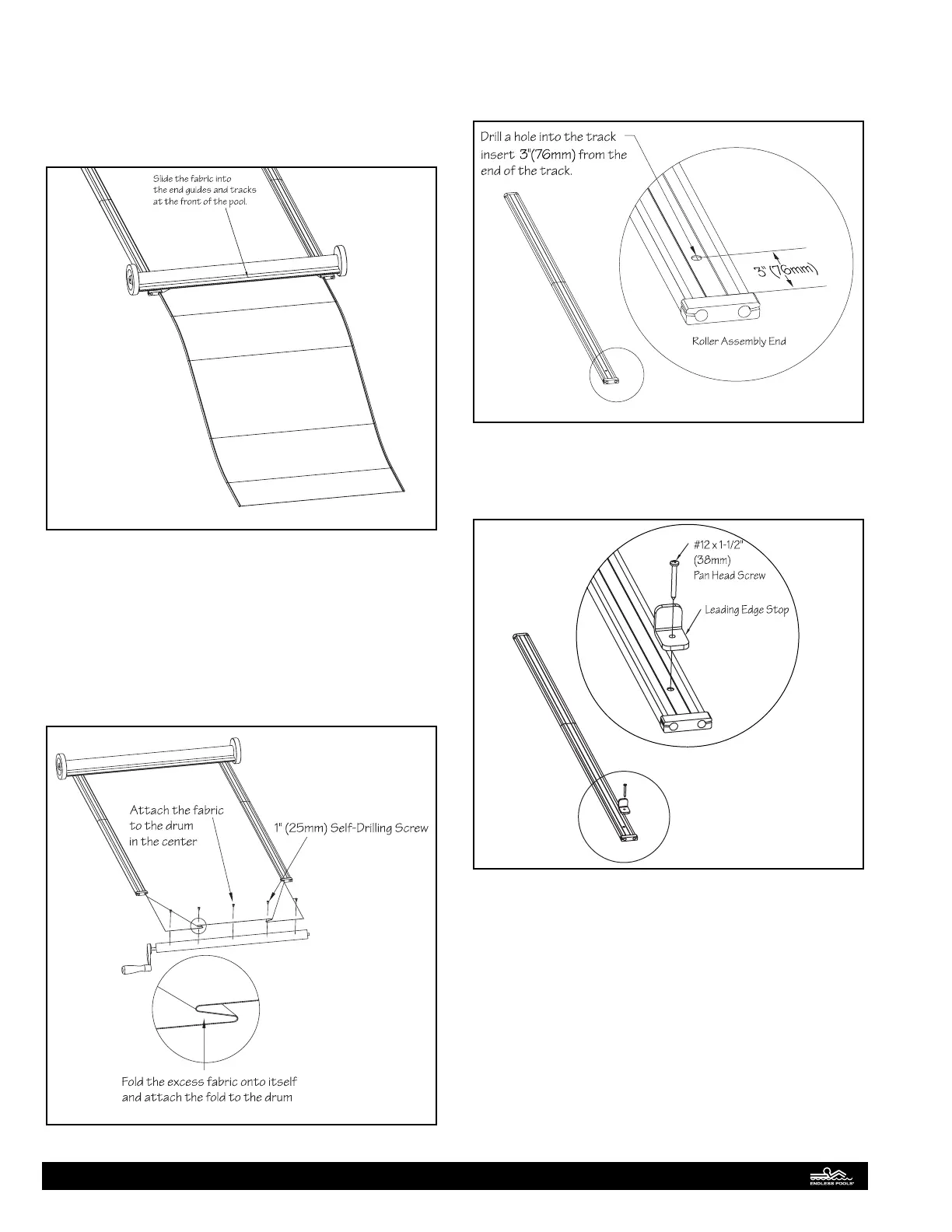

Fabric Installation
Insert the front edge of the cover fabric (the end with the beaded
edge) into the end guides on both sides of the pool. Pull the cover
into the tracks evenly towards the rear of the pool, completely
covering the pool. e cover fabric is designed to rest on the
surface of the water to provide security, therefore is 6” (15cm)
wider than the width of the pool. Fig. 86.
Fig. 86
e cover fabric can now be attached to the roller assembly. At-
tach the fabric to each end of the roller rst using the 1” (25mm)
self-drilling screws. Next, attach the center of the fabric to the
center of the drum. Since the fabric is wider than the distance
between the tracks, fold the excess fabric on each side of the
center point over and onto itself before attaching to the roller as
shown. Fig. 87.
Fig. 87
Leading Edge Stops
Drill a 1/4" (6mm) hole into the track insert 3" (76mm) in from
the end of the track sections closest to the front of the pool and
roller mechanism. Fig. 88.
Fig. 88
Install the leading edge stops using the provided #12 x 1-1/2"
(38mm) pan head screws. Fig. 89.
Fig. 89
33
