Endress+Hauser Cerabar PMC11 - Mounting Location

Cerabar PMC11, PMC21, PMP11, PMP21, PMP23 Installation
Endress+Hauser 17
Type Process isolating
diaphragm axis is
horizontal (A)
Process isolating diaphragm
pointing upwards (B)
Process isolating diaphragm
pointing downwards (C)
PMP11
PMP21
PMP23
Calibration position, no
effect
Up to +4 mbar (+0.058 psi) Up to –4 mbar (–0.058 psi)
PMC11, PMC21
< 1 bar (15 psi)
Calibration position, no
effect
Up to
+0.3 mbar (+0.0044 psi)
Up to
–0.3 mbar (–0.0044 psi)
PMC11, PMC21
≥1 bar (15 psi)
Calibration position, no
effect
Up to +3 mbar (+0.0435 psi) Up to –3 mbar (–0.0435 psi)

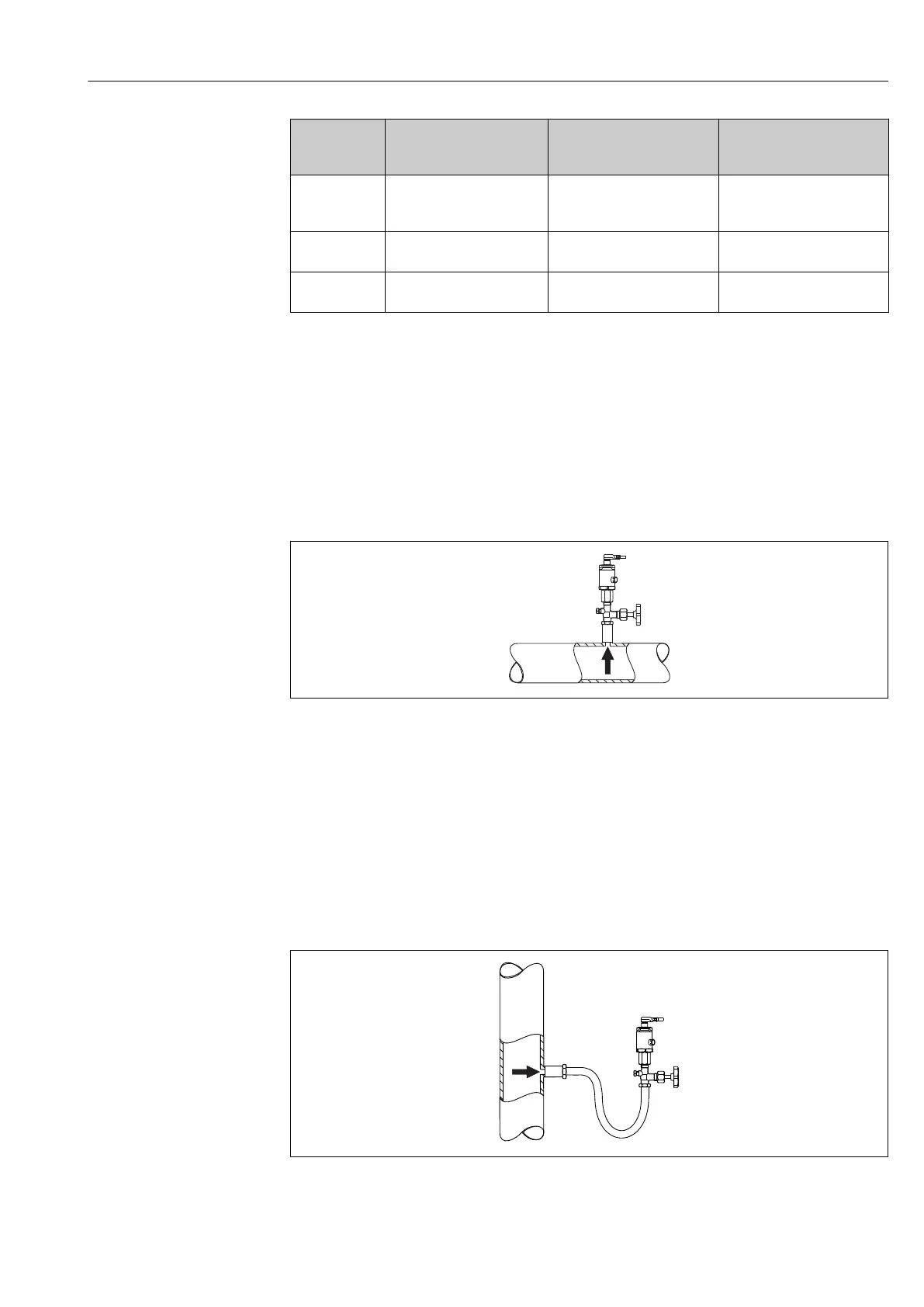

5.4 Mounting location
5.4.1 Pressure measurement
Pressure measurement in gases
Mount the device with shutoff device above the tapping point so that any condensate can
flow into the process.
1
2
A0021904
1 Device
2 Shutoff device
Pressure measurement in vapors
For pressure measurement in vapors, use a siphon. The siphon reduces the temperature to
almost ambient temperature. Mount the device with a shutoff device at the same height as
the tapping point.
Advantage:
only minor/negligible heat effects on the device.
Note the max. permitted ambient temperature of the transmitter!
1
2
3
A0024395
1 Device
2 Shutoff device
3 Siphon
