11.3 Plug-on display PHX20
→  23

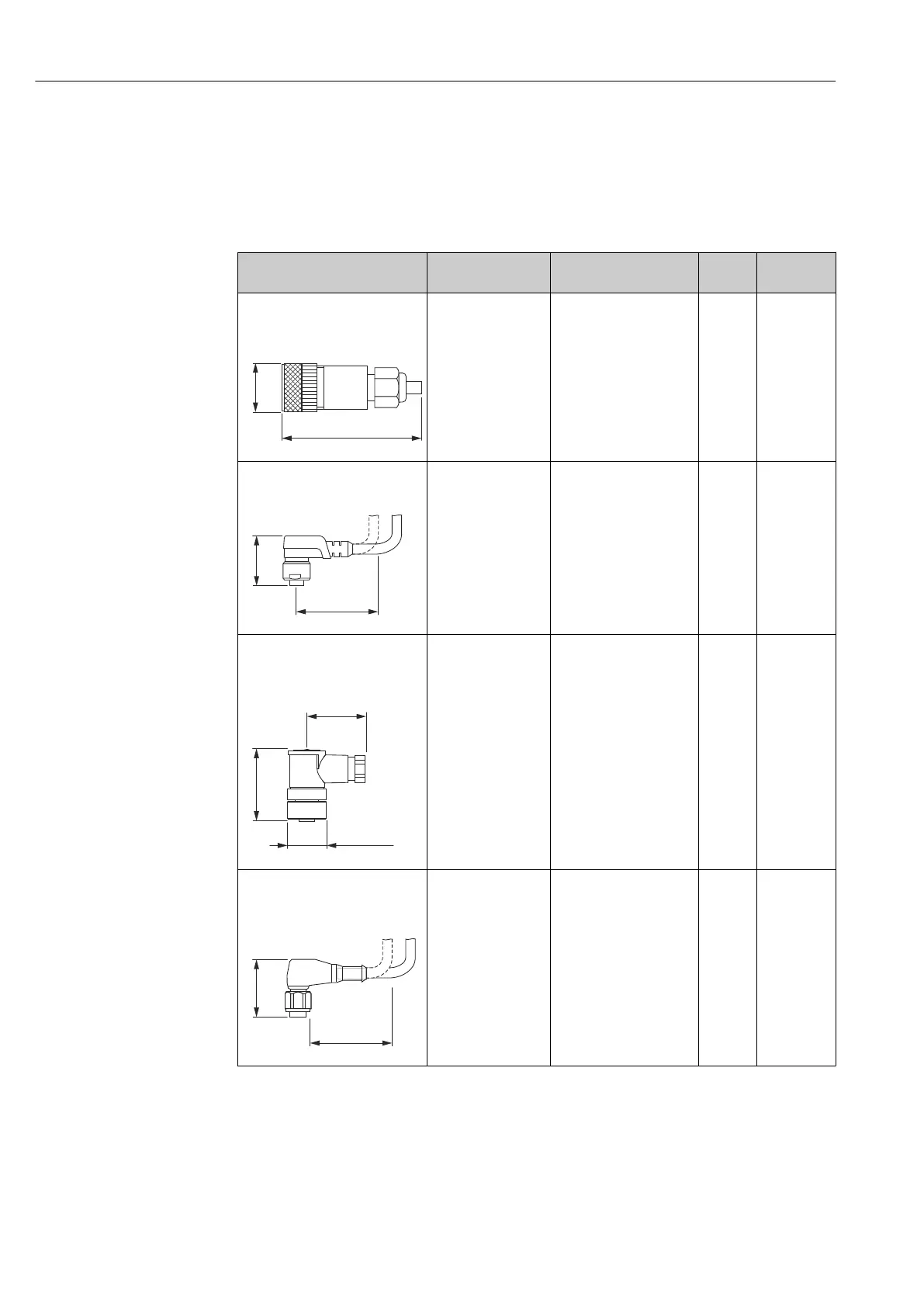

11.4 M12 plug connectors
Connector Degree of protection Material Option
1)
Order
number
M12
(self-terminated connection
at M12 plug)
53 (2.09)
ø
20
(0.8)
A0024475
IP67 • Union nut: Cu Sn/Ni
• Body: PBT
• Seal: NBR
R1 52006263
M12 90 degrees
with 5m (16 ft) cable
28
(1.1)
40 (1.57)³
A0024476
IP67 • Union nut: GD Zn/Ni
• Body: PUR
• Cable: PVC
RZ 52010285
M12 90 degrees
(self-terminated connection
at M12 plug)
35
(1.38)
28
(1.1)
20 (0.79)
A0024478
IP67 • Union nut: GD Zn/Ni
• Body: PBT
• Seal: NBR
RM 71114212
M12 90 degrees
with 5m (16 ft) cable
(terminated at one end)
28
(1.1)
40 (1.57)³
A0024477
IP69
2)
• Union nut: 316L
(1.4435)
• Body and cable:
PVC and PUR
RW 52024216
1) Product Configurator, order code for "Enclosed accessories"
2) Designation of the IP protection class according to DIN EN 60529. Previous designation "IP69K" according
to DIN 40050 Part 9 is no longer valid (standard withdrawn on November 1, 2012). The tests required by
both standards are identical.
