Cerabar PMC11, PMC21, PMP11, PMP21, PMP23 Operation options
Endress+Hauser 23
7 Operation options
7.1 Plug-on display PHX20 (optional)
No display or other operation facility is required to operate the device. However, devices
with a valve plug can be fitted with the optional local display PHX20.
A 1-line liquid crystal display (LCD) is used. The local display shows measured values, fault
messages and information messages. The device display can be turned in 90° steps.
Depending on the orientation of the device, it is therefore easy to read the measured
values.
7.1.1 Storage conditions
• Use original packaging.
• Storage temperature range: –30 to +80 °C (–22 to +176 °F)

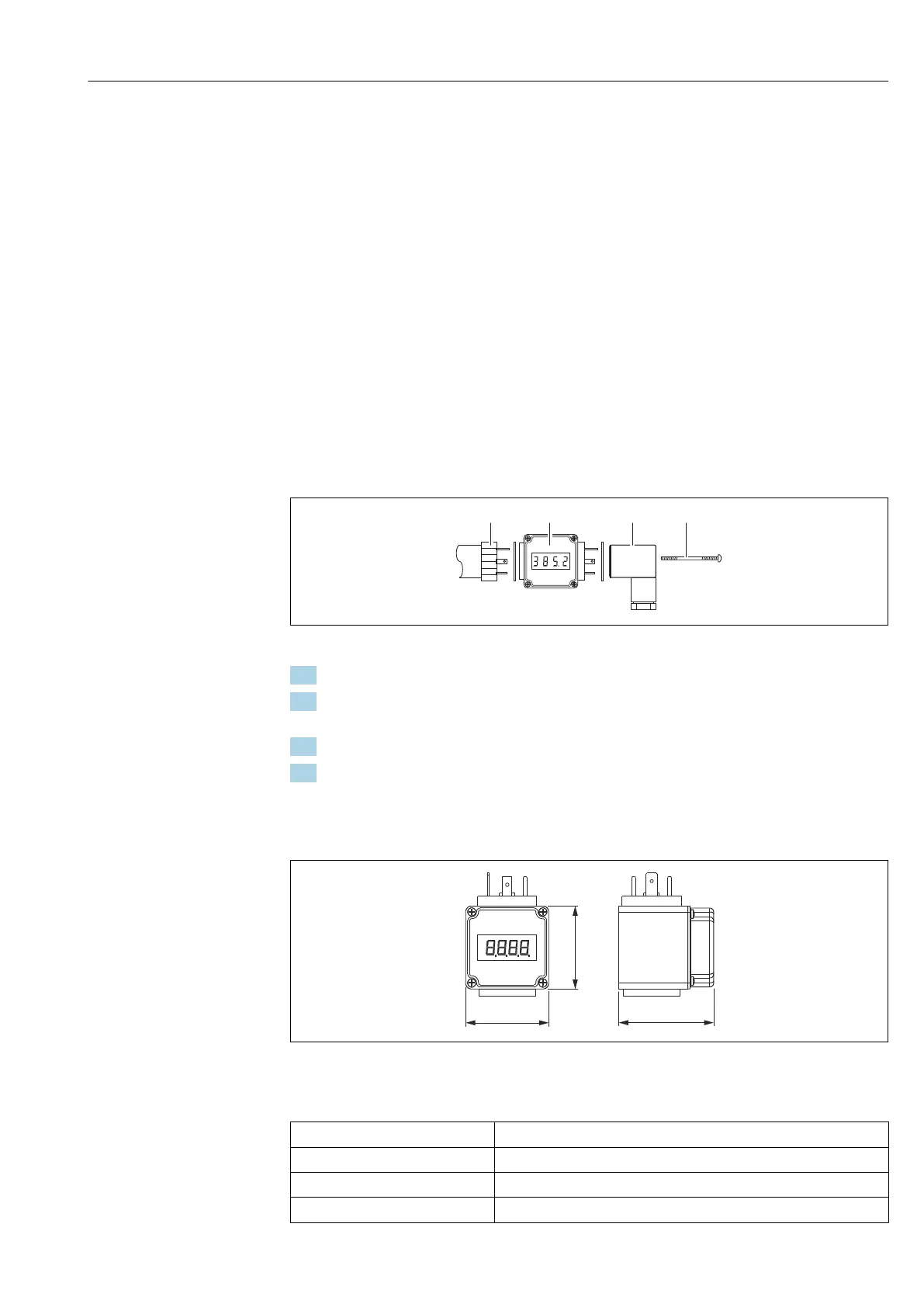

7.1.2 Installation
A0022208
1. Place seals between the sensor/plug-on display and the plug-on display/connector.
2. Fit the plug-on display (2) between the connector (3) and connector socket (1) of the
sensor.
3. Replace the securing screw (4) with the longer screw included in the delivery.
4. An adhesive label (included in the delivery) with information on the technical unit
can be fixed beneath the LED display.
Mounting dimensions
48 (1.89)
42 (1.65)
42 (1.65)
A0022210
7.1.3 Technical data
Display: 4-digit, red LED display
Digit height: 7.62 mm; programmable decimal point setting
Display range: -1999 to 9999
Accuracy: 0.2% of the span ±1 digit
