Installation Cerabar PMC11, PMC21, PMP11, PMP21, PMP23
18 Endress+Hauser

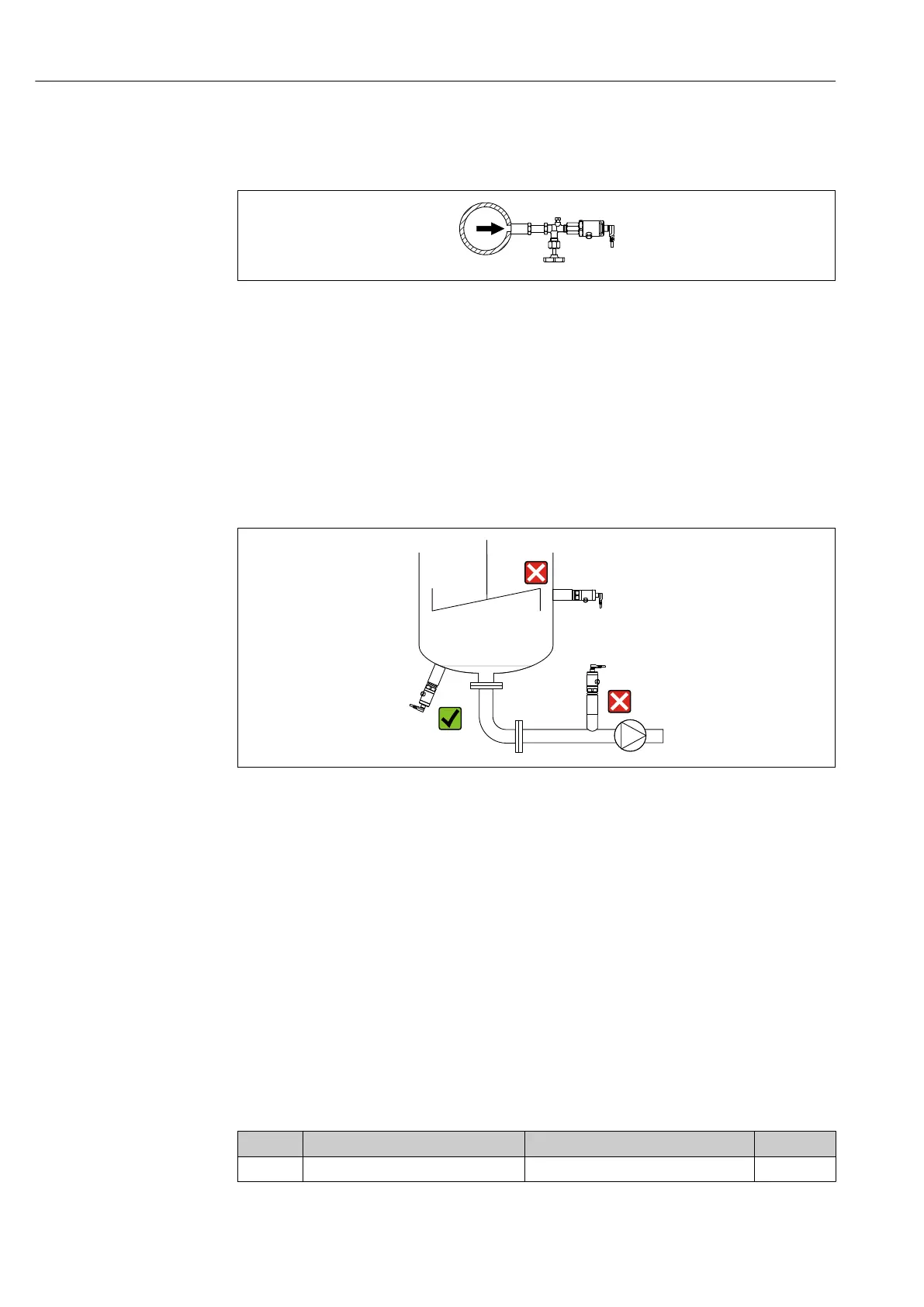

Pressure measurement in liquids
Mount the device with a shutoff device at the same height as the tapping point.
A0024399
1 Device
2 Shutoff device
5.4.2 Level measurement
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
– In the filling curtain
– In the tank outlet
– In the suction area of a pump
– Or at a point in the tank which could be affected by pressure pulses from the agitator.
A0024405
5.5 Mounting the profiled seal for the universal process
adapter
For details on mounting, see KA00096F/00/A3.
5.6 Mounting instructions for oxygen applications
Oxygen and other gases can react explosively to oils, grease and plastics, such that, among
other things, the following precautions must be taken:
• All components of the system, such as measuring devices, must be cleaned in accordance
with the BAM requirements.
• Dependent on the materials used, a certain maximum temperature and a maximum
pressure for oxygen applications must not be exceeded.
• The following table lists devices (devices only, not accessories or enclosed accessories),
which are suitable for gaseous oxygen applications.
Device p
max
for oxygen applications T
max
for oxygen applications Option
1)
PMC21 40 bar (600 psi) –10 to +60 °C (+14 to +140 °F) HB
1) Product Configurator, order code for "Service"
