6.4 Switching on
Familiarize yourself with the operation of the transmitter before it is first switched on.
Please refer in particular to the "Safety instructions" and "Operation" sections.
After power-up, the device performs a self-test and then goes to the measuring mode.
Now calibrate the sensor in accordance with the instructions in the "Calibration" section.
During commissioning, the sensors (except digital sensors) must be calibrated so that
the measuring system can return precise measurement data.
Then perform the first configuration in accordance with the instructions in the "Quick start-
up" section. The values set by the user are kept even in the event of a power failure.
The following function groups are available in the transmitter (the groups only available in
the Plus Package are marked accordingly in the functional description):
Setup mode
•SETUP 1 (A)
•SETUP 2 (B)
• CURRENT INPUT (Z)
• CURRENT OUTPUT (O)
•ALARM (F)
• CHECK (P)
•RELAY (R)
• SERVICE (S)
• E+H SERVICE (E)
• INTERFACE (I)
Calibration and offset mode
• CALIBRATION (C)
•NUMERIC (N)
•OFFSET (V)
A detailed explanation of the function groups available in the transmitter can be found
in the "System configuration" section.

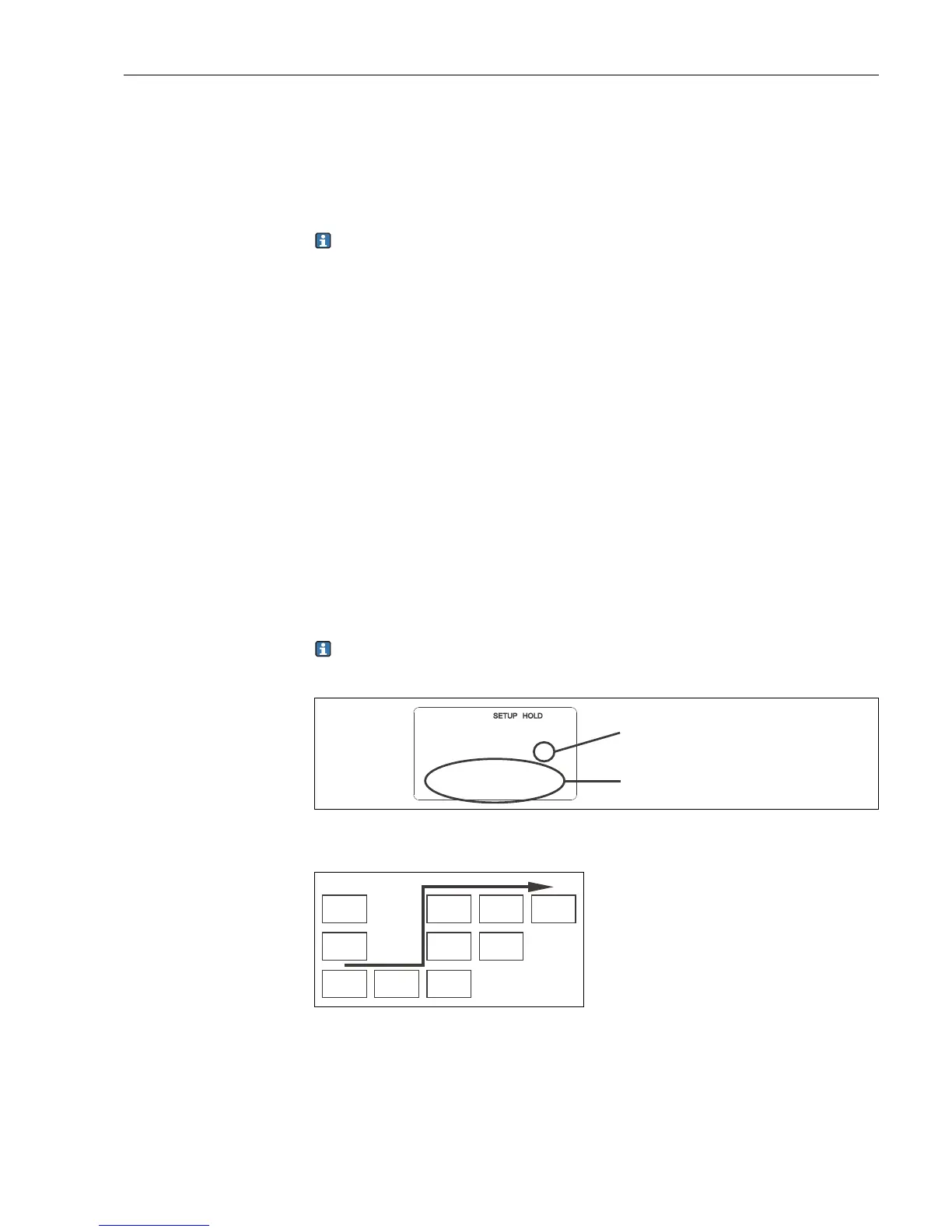

C07-CLD132xx-07-06-00-en-003.eps
Fig. 30: Example for display in setup mode
C07-CLD132xx-13-06-00-xx-005.eps
Fig. 31: Function coding
Selecting and locating functions is facilitated
by a code displayed for each function in a
special display field å 30.
The structure of this coding is given in
å 31.
The first column indicates the function
group as a letter (see group designations).
The functions in the individual groups are
counted from the top to the bottom and from
the left to the right.
