Liquisys M CPM223/253 Installation
Endress+Hauser 15
3.3.2 Panel-mounted instrument
The panel-mounted instrument is secured with the clamping screws supplied (see  å 8).
The necessary installation depth is approx. 165 mm (6.50").
a0005739

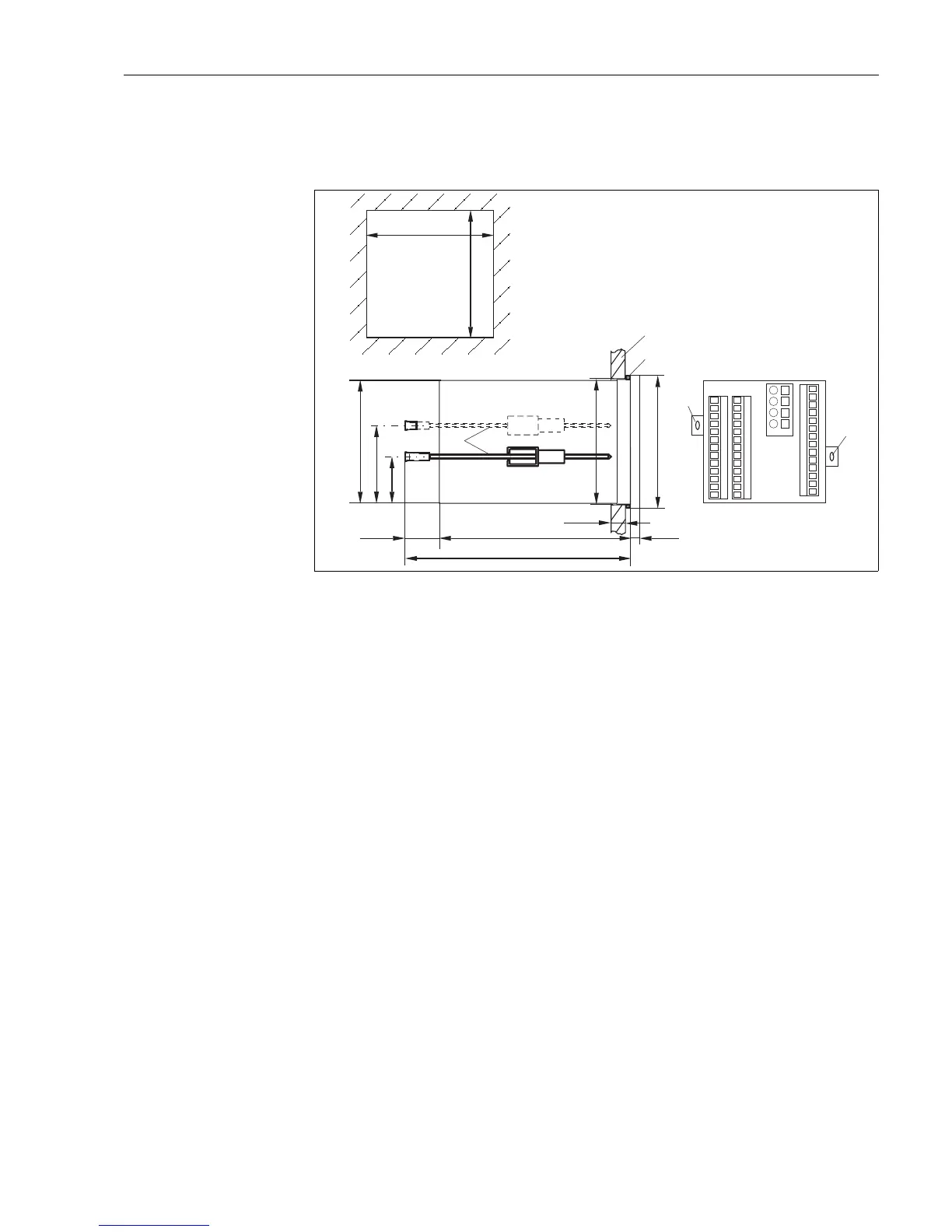

Fig. 8: Securing the panel-mounted instrument
1 Wall of the cabinet
2Seal
3 Clamping screws
* Required installation depth
3.4 Post-installation check
• After installation, check the transmitter for damage.
• Check whether the transmitter is protected against moisture and direct sunlight (e.g. by
the weather protection cover).
1
2
3
3
3
92 / 3.62
+0.5 +0.02
92 / 3.62
+0.5 +0.02
90 / 3.54
57 / 2.24
33 /
1.30
approx. 25 /
0.98
139 / 5.47
max. 45 /
1.77
6 /
0.24
96 / 3.78
92 /
3.62
approx. 165 / 6.50*
mm / inch
