You can also secure the field device to a square universal post in conjunction with the
weather protection cover. These can be acquired as accessories, see "Accessories" section.
a0005738

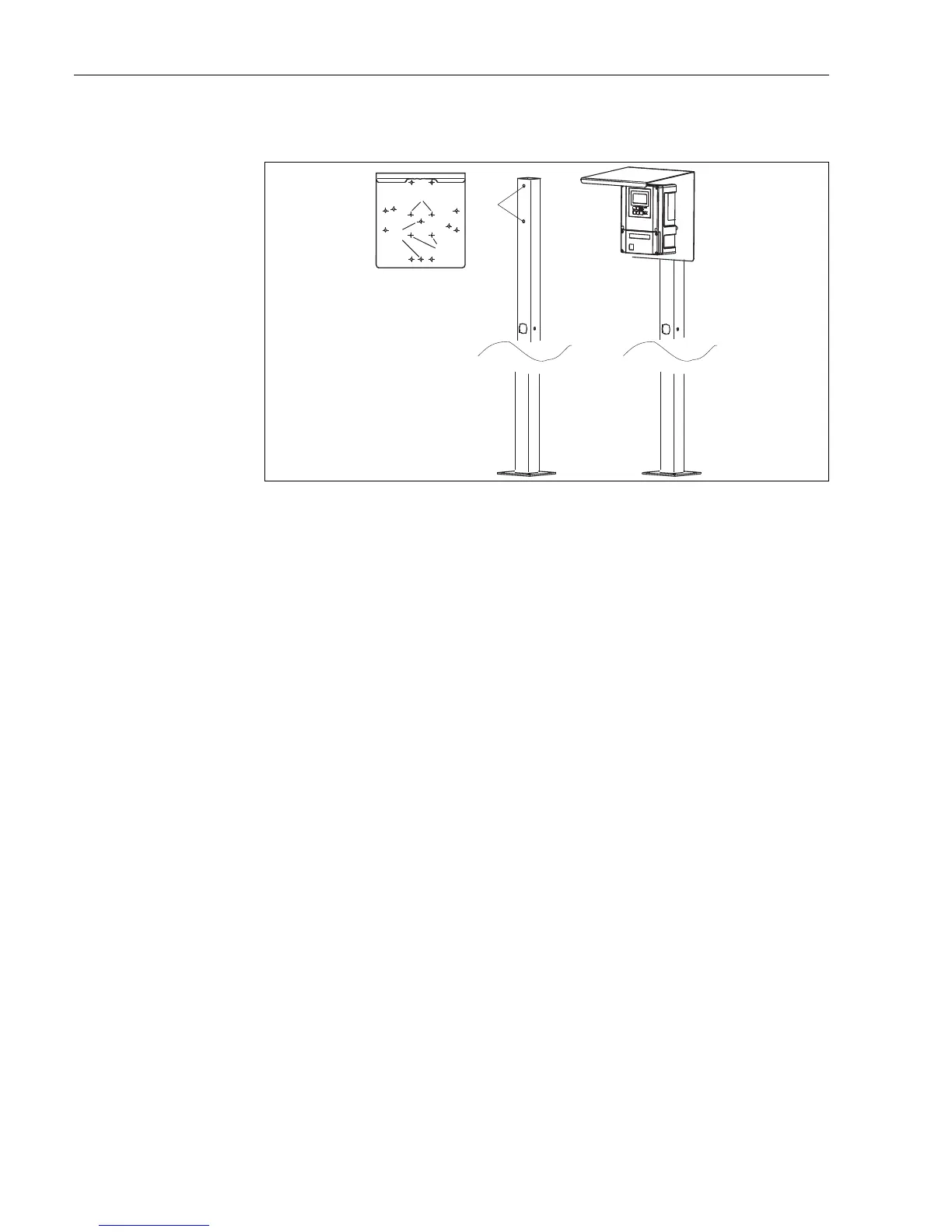

Fig. 7: Mounting field device with universal posts and weather protection cover
For mounting the weather protection cover, proceed as follows:
1. Screw the weather protection cover with 2 screws (bores 1) to the upright post
(bores 2).
2. Secure the field device to the weather protection cover. To do so, use the bores (3).
