Liquisys M CPM223/253 Installation
Endress+Hauser 13
Transmitter post mounting
You require a post mounting kit to secure the field device to horizontal and vertical posts
or pipes (max. Ø 60 mm (2.36")). The kit can be acquired as an accessory (see
"Accessories" section).
a0005737

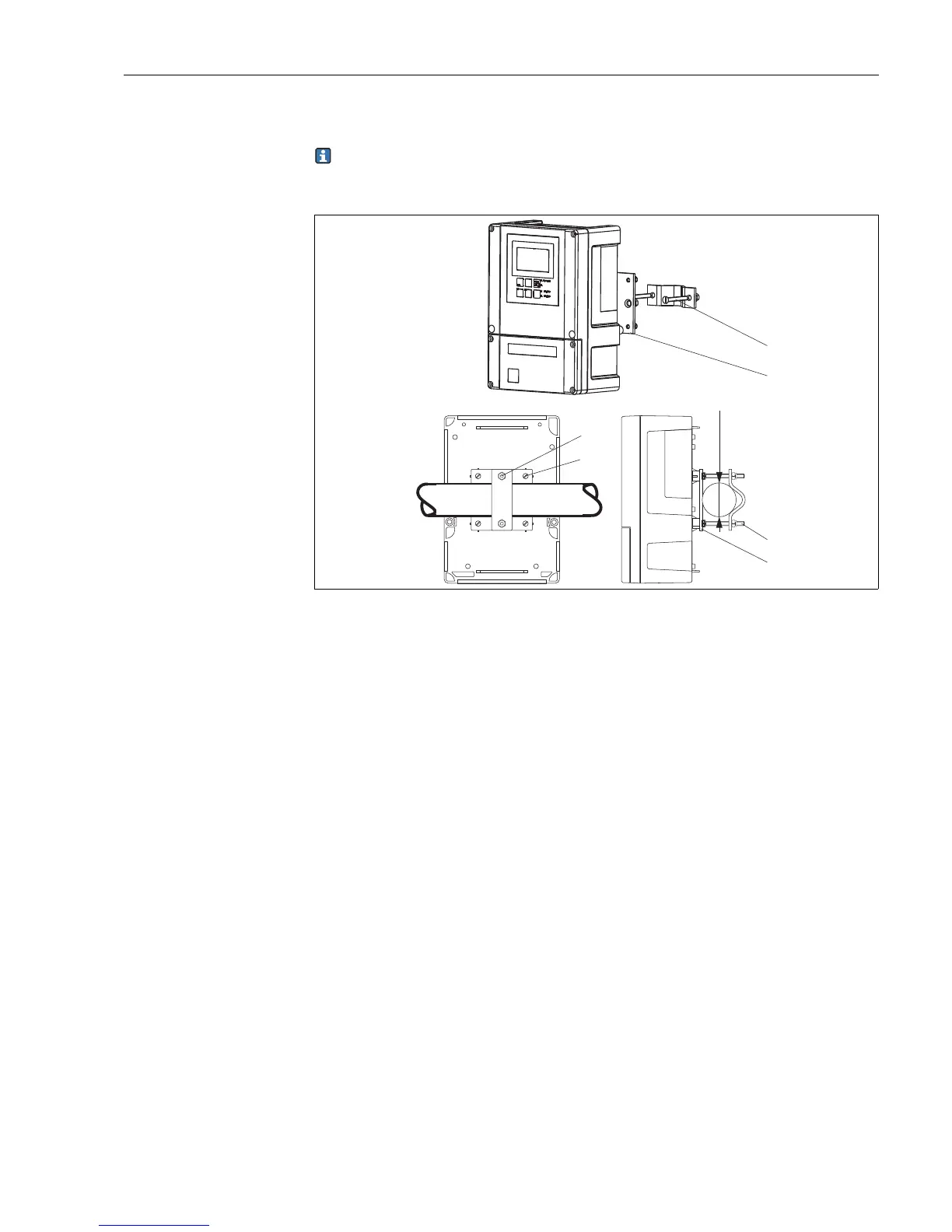

Fig. 6: Post mounting field device to cylindrical pipes
For post mounting the transmitter, proceed as follows:
1. Guide the two securing screws (1) of the mounting kit through the openings of the
securing plate (3).
2. Screw the securing plate onto the transmitter using the four fixing screws (2).
3. Secure the retainer with the field device on the post or pipe using the clip.
